You use 12V DC gear motors when speed and force matter. These motors use direct current and gears to work precisely. Their small size makes them great for things like power windows or solar devices. New energy-saving improvements make them use 10% less electricity. They are helpful in robots, cars, and factory machines. These motors make designs easier and improve many technologies.

Wichtigste Erkenntnisse

  • 12V DC gear motors work well and use less energy. They are great for robots and home devices.

  • Gear ratios are important to know. High ratios give more power for tough jobs. Low ratios make motors faster for easy tasks.

  • Taking care of the motor, like cleaning and oiling, helps it work better and last longer.

  • The output shaft moves power from the motor. A strong and straight shaft keeps things running smoothly.

  • These motors are used in many areas, like cars and factory machines, because they are dependable and useful.

Principles of 12V DC Gear Motors

How DC Motors Work with Electromagnetism

DC motors work using electromagnetism. When direct current flows into the motor, the armature wires carry the electricity. This creates a magnetic field that interacts with the magnets or coils in the motor. The interaction makes a force that spins the armature.

As the armature spins, the commutator switches the current’s direction. This keeps the torque steady, so the motor keeps turning. DC motors are dependable and work well for tasks needing precise control.

Here’s how experiments explain this process:

  1. DC voltage makes current flow through the armature wires.

  2. The current creates a magnetic field that interacts with the motor’s magnets or coils.

  3. This interaction creates torque, spinning the armature.

  4. The commutator flips the current direction, keeping the torque steady for smooth motion.

Measurements show how this works:

  • Magnetic fields form when current flows through the armature wires. These fields interact with the motor’s magnets.

  • Torque depends on the strength of these magnetic fields and the current, creating enough force to spin the motor.

How Gears Change Torque and Speed

Gears help adjust torque and speed in 12V DC gear motors. Changing the gear ratio can increase torque or change speed for different uses. Higher gear ratios give more torque, which is good for heavy tasks. Lower gear ratios make the motor faster but reduce torque.

The effects of gear ratios are:

Metrisch

Beschreibung

More Torque

Higher gear ratios give more torque for heavy tasks.

Faster Speed

Lower gear ratios make the motor faster but with less torque.

Power Efficiency

Gear ratios affect how well power moves through the system.

RPM and Load Balance

Correct ratios help manage speed and weight for different jobs.

Less Wear

Wrong ratios can cause damage, shortening the motor’s life.

Gears make the motor flexible, so it can work for many needs.

Combining Motors and Gears

Combining DC motors with gears makes them stronger and more efficient. Adding a gearbox increases torque, improves speed control, and saves energy. For example, a gearbox can save up to 40% of energy, lowering costs.

Benefits of combining motors and gears include:

Nutzen Sie

Beschreibung

More Torque

Gearboxes boost torque, helping with heavy tasks.

Better Speed Control

Gearboxes allow precise speed changes for different uses.

Energy Savings

Gearboxes can save up to 40% energy, cutting costs.

Smoother Operation

Gearboxes reduce vibrations, making the motor run smoothly.

Longer Lifespan

Gearboxes reduce wear, helping the motor last longer.

This combination makes 12V DC gear motors reliable and useful for many jobs.

Key Components of 12V DC Gear Motors

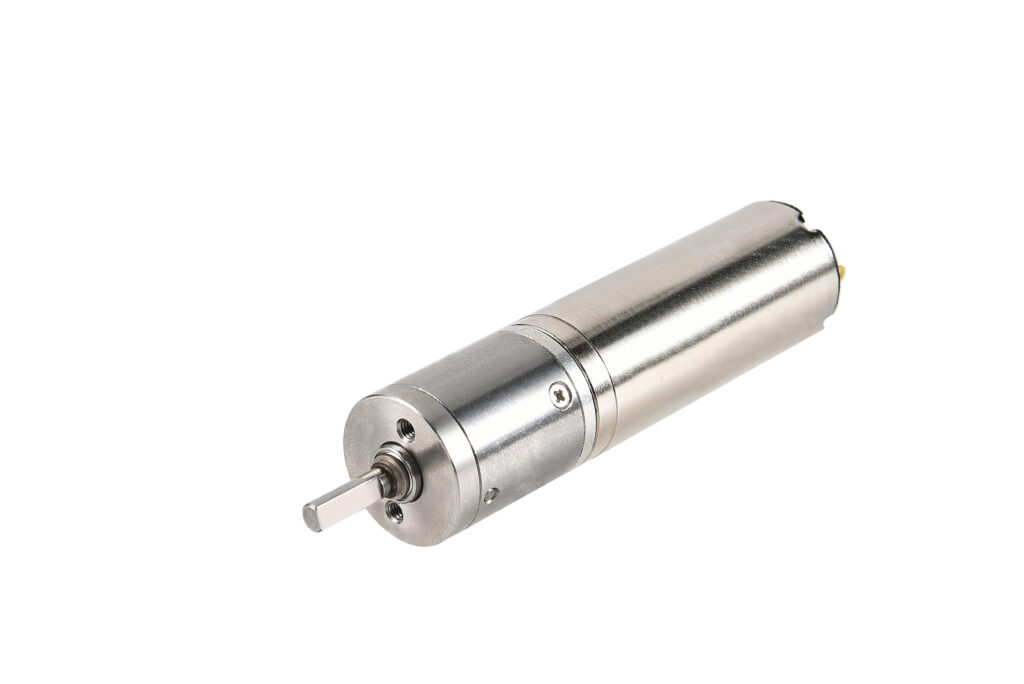

c26e372a 3aa2 4424 8917 c45f7a0db5cd

DC Motor: The Core of Motion

Die dc motor is the main part of a 12V gear motor. It changes electrical energy into movement, helping the motor work well. When 12V direct current powers the motor, the armature spins. This happens because magnetic fields and current interact. The spinning creates the power needed to drive the gears.

Tests on Tetrix DC Drive motors show how well they work. At 12V, these motors reach about 17.6 and 15.8 Watts of power. Their efficiency is around 45% and 40%, showing they work reliably while managing energy loss.

Die dc motor gives steady torque and speed control. Its design helps it run smoothly, making it great for precise tasks like robotics and automation.

Gear Assembly: Enhancing Torque and Reducing Speed

The gear assembly changes the torque and speed of a 12V motor. Adjusting the gear ratio lets you match the motor’s output to the job. Higher ratios give more torque for heavy tasks. Lower ratios make the motor faster for quick jobs.

Here’s how gears improve performance:

  • Torque Enhancement: Gears increase the motor’s force to move heavy things.

  • Speed Reduction: Gears slow the motor for better control in precise tasks.

  • Energie-Effizienz: Good gear ratios save energy and transfer power well.

  • Dauerhaftigkeit: Gears reduce motor strain, helping it last longer.

The gear assembly turns the motor’s raw power into controlled output. This makes the motor useful for many different tasks.

Housing and Enclosure: Protecting Internal Mechanisms

The housing and enclosure protect the parts inside the 12V motor. They keep the dc motor, gears, and other parts safe from dust, water, and damage.

A strong enclosure helps the motor work well in tough places. For example, in factories, it stops dirt from harming the motor. In robots, it keeps the motor safe from bumps or crashes.

Benefits of the housing include:

  • Protection: It shields the motor from harmful conditions.

  • Heat Management: Some enclosures have vents to stop overheating.

  • Strukturelle Unterstützung: It keeps parts aligned for smooth operation.

The housing makes the motor stronger and more reliable. It helps the motor work well, even in hard conditions.

Output Shaft: Sending Mechanical Power

Die output shaft is very important in a 12V DC gear motor. It moves power from the motor and gears to the device it operates. Without it, the motor’s energy would stay inside and be useless.

When the motor spins, the output shaft sends this energy to parts like wheels, pulleys, or robotic arms. Its design helps transfer power smoothly and saves energy. The shaft must be strong enough to handle the motor’s force and the weight it moves.

Tipp: Prüfen Sie die output shaft often for wear or misalignment. These problems can lower efficiency and cause damage.

Why Power Transfer Efficiency Is Important

How well the output shaft works affects the motor’s overall performance. A PTO dynamometer measures how much power and torque the shaft delivers. Testing with this tool can find problems like worn parts or bad tuning that reduce efficiency.

Research shows that torque, shaft work, and heat efficiency change with speed. By studying these, you can predict how the output shaft will perform in different situations. This helps keep the motor working well and steady.

Features of a Good Output Shaft

A strong output shaft lasts long and works accurately. Look for these qualities:

  • Material Strength: Tough steel or alloy resists bending and damage.

  • Smooth Surface: Reduces friction and protects connected parts.

  • Precise Design: Exact sizes ensure proper fit with gears and devices.

  • Tragfähigkeit: Handles the motor’s force and weight without breaking.

These features make the output shaft reliable for many uses.

Where Output Shafts Are Used

Die output shaft can power many devices. In robots, it moves wheels and joints carefully. In cars, it operates things like wipers or seat adjusters. Factories use it to run conveyor belts and heavy machines.

Knowing how the output shaft works shows how it turns motor energy into useful motion. This part helps your 12V DC gear motor do its job well for any task.

DC Motor Characteristics and Performance

Torque and Speed Relationship

Torque and speed in a dc motor are closely connected. When the motor’s load increases, torque goes up, but speed slows down. This happens because the motor works harder to handle the extra weight. For example, if a 12V dc motor lifts something heavy, it moves slower as it creates more torque to lift the object.

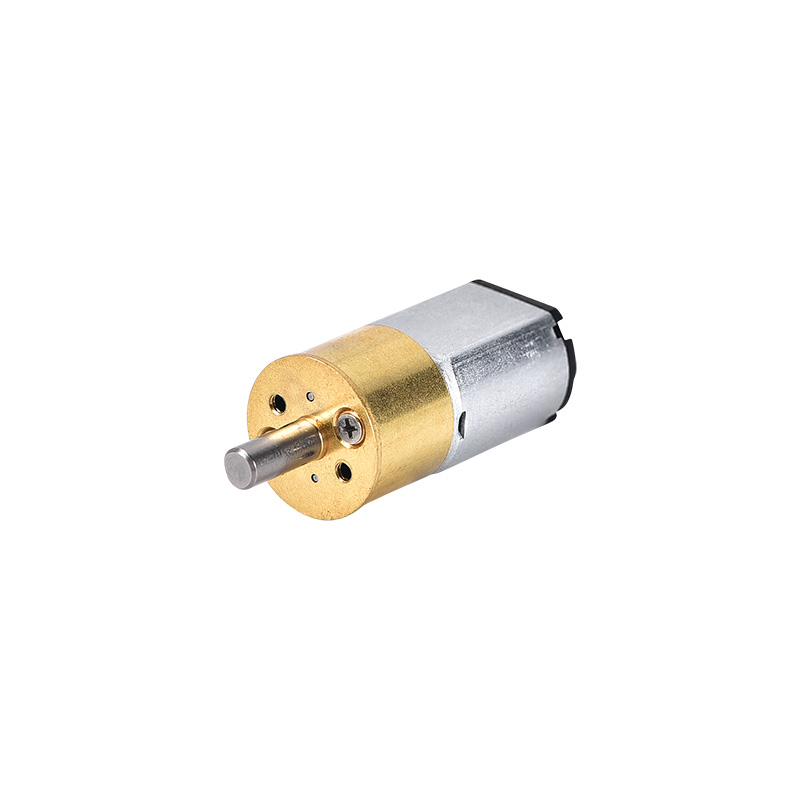

59633055e55c4f5791818a7764e7e1b7

Here’s a table showing key performance details of a 12V dc motor:

Parameter

Value

Unit

Leerlaufgeschwindigkeit

50

Umdrehungen pro Minute

No-Load Current

0.04

A

On-Load Speed

20

Umdrehungen pro Minute

On-Load Torque

190

g.cm

On-Load Current

0.12

A

Rated Power

12.8

W

Max. Efficiency

43

%

Max. Power

22.7

W

Stall Torque

4200

g.cm

Nennspannung

12

V

This table shows how torque and speed change together. As torque rises, speed drops. This is a basic feature of dc motors.

Efficiency and Power Consumption

Efficiency shows how well a dc motor turns electricity into movement. Higher efficiency means less wasted energy and lower costs. Small dc motors often reach their best efficiency between 30% and 40%. However, depending on design and load, they can work at 70% to 90% efficiency.

Things like motor design, gears, and load affect efficiency. For example:

  • A good gearbox reduces energy waste.

  • Managing voltage and load improves performance.

Tipp: Keep gears oiled to save energy and improve efficiency.

Voltage and Current Requirements

Voltage and current decide how a dc motor works. A 12V dc motor usually needs 12 to 36 volts and up to 10 amps of current. These numbers depend on the motor type and what it’s used for.

Here’s a table with voltage and current details for different motors:

Motor Typ

Voltage (V)

Continuous Current (A)

12V DC Motor

12 to 36

Up to 10

PBL60-50

24

6.7

BLDC36P16A

12

1.5

BLDC24P16A

12

0.7

Model 200

K.A.

0.016 to 0.070

VWDIR Gearmotor

12 and 90

6.2

BLDC40S40A

12

4.7

Using the right voltage and current keeps the motor from overheating or breaking. A proper power supply helps the motor work well.

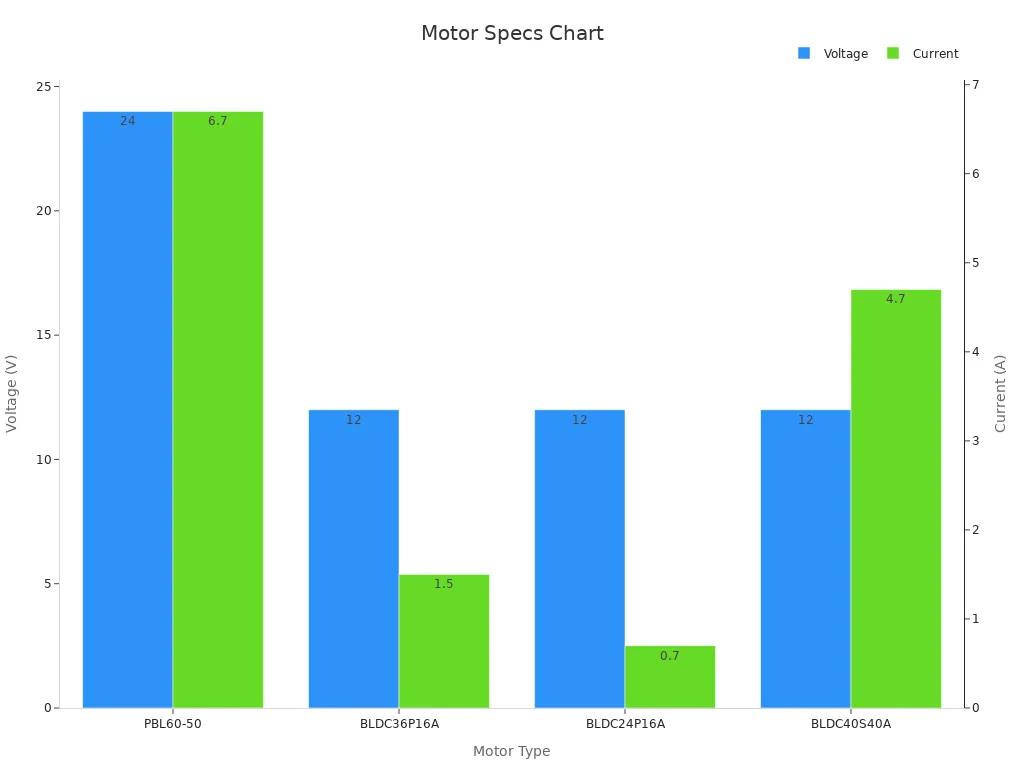

Bar chart comparing voltage and current for selected motors

Knowing these details helps you pick the best motor for your needs. It ensures the motor lasts longer and works efficiently.

Load Capacity and Durability

When picking a 12V DC motor, knowing its load capacity and durability is important. These features show how much weight the motor can handle and how long it will last. Load capacity means the heaviest load the motor can carry without overheating or losing power. Durability shows how well the motor resists damage over time.

Why does load capacity matter? If a motor carries more than it should, it might overheat or stop working. For example, using a weak motor on a conveyor belt could cause frequent breakdowns. This would slow work and cost more in repairs. Choosing the right motor ensures smooth operation and avoids damage.

Durability helps the motor last longer. Strong materials, good design, and proper use make a motor more durable. For instance, motors in factories must handle heavy use and tough conditions. A durable motor reduces downtime and works reliably.

Tipp: Clean and oil your motor regularly. This improves both load capacity and durability, keeping it efficient and preventing early failure.

Always check a motor’s load capacity and durability before buying. These details help the motor meet your needs and stay reliable for a long time.

Applications of 12V DC Gear Motors

Robotik und Automatisierung

12V DC gear motors are important in robots and automation. They give strong force and steady speed for tasks like moving arms or wheels. Their small size and energy-saving design make them great for tight spaces and long use.

Why are these motors useful in automation? They mix a DC motor with gears for exact motion control. For example, a high-torque gear motor helped sports equipment work smoothly. Another example is a 12V motor assembly that improved a TV mount in an office. These show how these motors fit modern automated systems well.

Automotive Systems

12V DC gear motors are key in cars. They power things like wipers, seat adjusters, and electric windows. These motors work well even with changing loads, making them popular for vehicles.

Why are they common in cars? Studies show 12V motors are the most used in this field. Cars depend on them for their reliable and efficient performance. The market for these motors is growing fast, from $1.5 billion in 2025 to $2.5 billion by 2033. This growth is driven by electric cars and advanced driving systems.

Key Factor

Einzelheiten

Application

Passenger cars use 12V DC gear motors the most.

Marktwachstum

Expected to grow from $1.5 billion in 2025 to $2.5 billion by 2033.

CAGR

Growth rate estimated at 6% from 2025 to 2033.

Home Appliances

12V DC gear motors are common in home devices. They work well and need little care, making them good for washing machines, vacuums, and blinds. These motors run smoothly and save energy, making them eco-friendly for homes.

Why are they great for home appliances? Their brushless design lasts longer and reduces wear. Research shows the brushless motor market is growing quickly, from $9.56 billion in 2023 to $18.19 billion by 2030. This rise shows the need for durable and energy-saving motors in homes.

  • Brushless motors are efficient and need less upkeep.

  • The market is growing at a rate of 8.25% during this time.

These motors improve home devices and help save energy, making them a smart choice for households today.

Industrielle Maschinen

12V DC gear motors are important for factory machines. They handle jobs needing strength, accuracy, and dependability. These motors control speed and force, making them great for heavy tasks.

Why do factories use these motors? They are small but powerful. This means they fit in tight spaces while still working well. Machines like conveyor belts and packaging systems rely on them. Their gears increase force, helping move heavy items easily.

These motors are also tough. Factories can be dusty, hot, and run nonstop. Strong casings protect the motor parts, keeping them working longer. Cleaning and oiling them often makes them last even more.

Another benefit is energy savings. These motors use less power but still work hard. This lowers costs, which is helpful in big factories. Using these motors helps save money and energy, making operations better for the environment.

12V DC gear motors are important for controlling speed and force. They use electromagnetism and gears to work dependably. Parts like the motor, gears, housing, and shaft make them strong and efficient. Features like torque, speed, and load capacity help you pick the right motor. These motors are used in many things, like robots and factory machines. They are a key part of today’s technology.

FAQ

Why are 12V DC gear motors good for precise tasks?

These motors use gears and a DC motor to control speed. This makes them great for jobs needing accuracy, like robots or machines. Their small size fits tight spaces and works reliably.

Why are gear ratios important in 12V DC gear motors?

Gear ratios change torque and speed. Higher ratios give more force for heavy work. Lower ratios make the motor faster for quick tasks. Picking the right ratio helps the motor work well and last longer.

Why is regular motor care important?

Cleaning and oiling the motor often reduces wear and tear. It also helps the motor last longer and work better in tough jobs.

Why are these motors used in home devices?

They save energy and are strong, making them great for home items like washers and blinds. They run quietly, use less power, and last a long time.

Why does the output shaft matter in these motors?

The output shaft moves power from the motor to the device. A strong shaft sends power smoothly, lowers friction, and makes the motor more efficient.
