Boost Your DC Motor’s Torque Like a Pro: 3 Effective Methods

Need more power from your DC motor? Try these proven techniques:

Electrical Upgrade: Increase current/voltage carefully to gain up to 50% more torque (watch for overheating)

Gear Reduction: Add a gearbox for 3-10X torque multiplication – ideal for robotics and heavy loads

Hybrid Approach: Combine both methods for maximum performance

Different applications demand different solutions. Industrial robots often use precision gearboxes, while electric vehicles combine both electrical and mechanical upgrades.

Key Considerations:

Thermal limits when increasing current

Space requirements for gearboxes

Efficiency tradeoffs

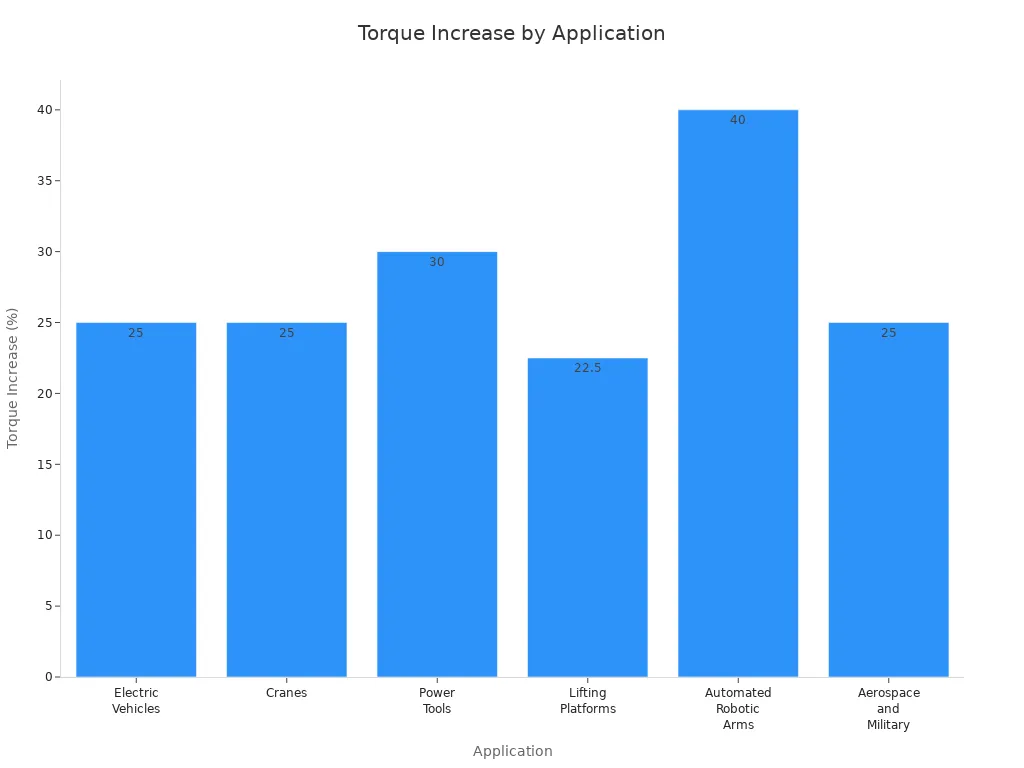

Bar chart showing torque increase percentages for various DC motor applications

You can get more motor torque by picking the right way for your motor and job.

Wichtigste Erkenntnisse

  • You can make a DC motor stronger by using more current or voltage, but be careful about heat and the motor’s limits so you do not break it.

  • If you add a gearbox, you can get more torque safely, but the motor will turn slower; pick the best gear ratio for what you need.

  • You can rewind the motor with thicker wire or add more windings to get more torque, but this is hard and needs skill.

  • If you lower friction and stop mechanical losses, the motor can give more torque and last longer.

  • Always pick the best way to upgrade torque for your motor, what you are moving, and your money, and test everything carefully.

Electrical Ways to Increase Torque

You can make your Gleichstrommotor stronger by changing how you power it or how it is built. Electrical ways help you get more Drehmoment without changing the whole machine. There are three main ways to do this with electrical changes.

Boosting Voltage and Current

You can get more Drehmoment by giving your Gleichstrommotor more voltage or current. When you add more current, the motor gives more Drehmoment. Die Drehmoment of a Gleichstrommotor goes up when the armature current goes up. If you double the current, you also double the Drehmoment. Voltage helps too. More voltage can push more current into the armature. This gives you more Drehmoment when starting or carrying heavy things.

Tipp: Always look at your motor’s nameplate to see the right voltage and current before you change anything.

But raising voltage and current can be risky. Here are some problems you might face:

  • More voltage makes the motor spin faster, which can wear it out sooner.

  • Too much current can make the motor too hot and break the coils.

  • High voltage can damage insulation, cause sparks, and make the motor wear out faster.

  • Starting with a lot of current can hurt the motor quickly.

  • Using too much voltage or current without control or cooling will make the motor old faster.

Anmerkung: Use devices that limit current and keep the motor cool to help with these problems, but you cannot stop all risks.

You should also follow these safety rules:

  • Do not run the motor with too much or too little voltage for a long time.

  • Try to keep the voltage close to what the motor is made for.

  • Small motors can break faster if you use too much voltage.

  • Change transformer taps if you need to keep the voltage steady.

Rewinding with Thicker Wire

Another way to get more Drehmoment is to rewind the armature with thicker wire. Thicker wire lets more current flow, so you get more Drehmoment. But thick wire means you can fit fewer turns in the armature. Fewer turns usually make the motor spin faster but give less Drehmoment. If you want more Drehmoment at low speed, you may need thinner wire and more turns.

Here are some tips and problems:

  • Thick wire is hard to wind and may not fit well.

  • You need special tools and skills to rewind a motor safely.

  • Using varnish and insulation can be dangerous if you do not know how.

  • Fixing broken wires needs careful soldering and balancing.

  • You must balance how the motor works, how it fits, and safety.

Tipp: If you do not know how to rewind a motor, ask a professional for help.

Increasing Armature Windings

You can also get more Drehmoment by adding more windings to the armature. More windings make a stronger magnetic field, so you get more Drehmoment. More turns give you more Drehmoment at lower speeds. This is good if you need strong Drehmoment for heavy things or slow machines.

How current, armature resistance, and Drehmoment work together is important. The Drehmoment in a Gleichstrommotor goes up when the armature current goes up. Armature resistance changes how much current flows, but it does not show up in the Drehmoment formula. Here is a table to help you:

Parameter/Equation

Beschreibung

Relationship

Voltage Equation

E = Eb + Ia * Ra

Supply voltage is back emf plus voltage drop across armature resistance (Ra) and current (Ia).

Power Loss

Power loss = Ia² * Ra

Shows electrical losses that lower mechanical power.

Mechanical Power

Pm = Tg * ω

Mechanical power is Drehmoment (Tg) times speed (ω).

Torque Equation

Tg = k * φ * Ia

Drehmoment is linked to flux (φ) and armature current (Ia).

Effect of Ra

Ra changes Ia and power loss but not Drehmoment directly

Armature resistance changes current and losses, not Drehmoment directly.

Remember: More windings mean more copper and higher resistance, which can make more heat. Always check if your motor can handle the extra heat.

By using these electrical ways, you can get more Drehmoment, peak Drehmoment, and even Drehmoment and horsepower for your job. Always pick the way that fits your needs and your motor. If you need strong Drehmoment for a short time, more current may help. For steady, strong Drehmoment, rewinding or adding windings may be better.

Mechanical Ways to Increase Torque of DC Motor

Mechanical Ways to Increase Torque of DC Motor

If you want to increase torque of dc motor without changing its electrical parts, you can use mechanical methods. These methods help you get more torque for your application. You can use gearboxes, choose the right gear ratio, and reduce mechanical losses. Each method has its own steps and tips.

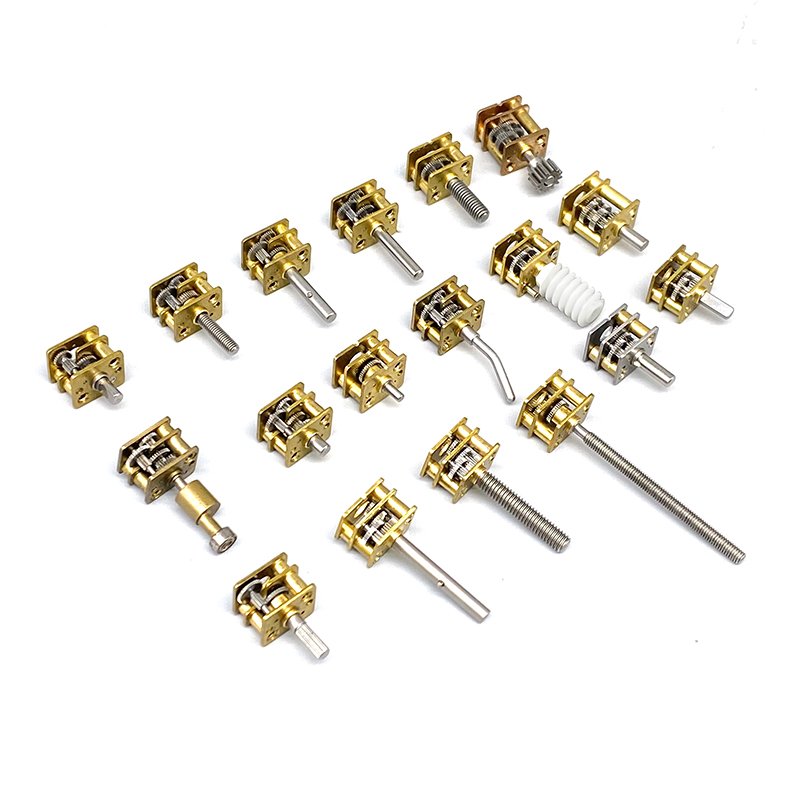

Adding a Gearbox

You can increase torque of dc motor by adding a gearbox. A gearbox connects to your motor and multiplies the torque. It does this by using gears with different sizes. The gear ratio tells you how much the gearbox will multiply the torque. For example, if the output gear has 40 teeth and the input gear has 10 teeth, the gear ratio is 4:1. This means the output torque is about four times the input torque.

  • Adding a reduction gearbox increases torque by the gear ratio.

  • The gear ratio is the number of teeth on the output gear divided by the number of teeth on the input gear.

  • Torque multiplication matches the gear ratio.

  • Some gearboxes can multiply torque up to a thousand times.

  • When you increase torque using gears, the output speed goes down by the same amount.

Tipp: Use a gearbox when you need more torque for heavy loads or slow movement. Always check the maximum torque your gearbox can handle.

Here is a table of common gearbox types and their efficiency:

Gearbox Type

Wesentliche Merkmale

Typical Efficiency Range

Planetengetriebe

High torque density, compact, multiple stages possible

85-95% per stage

Right-angle (Worm) Gearbox

90-degree shaft, lower cost, lower efficiency at high ratios

40-80%

Hybrid Gearbox

Combines planetary and right-angle, high torque, heavy, costly

Not stated, but lower than planetary

Spur and Helical Gears

High efficiency, less common for torque increase in dc motors

90-98%

Optimizing Gear Ratios

Choosing the right gear ratio is important if you want to increase torque of dc motor for your job. A higher gear ratio gives you more torque but less speed. For example, a 10:1 gear ratio means the motor shaft turns 10 times for every one turn of the output shaft. This setup gives you about ten times more torque and one-tenth the speed.

  • The output torque equals the input torque times the gear ratio times the efficiency.

  • Real torque is always a bit less than the math says because of friction and other losses.

  • Most gearboxes have an efficiency between 85% and 95%.

  • If you need peak torque for a short time, use a higher gear ratio.

  • For steady load torque, pick a ratio that matches your motor power and speed.

Anmerkung: If you use too high a gear ratio, your output speed may be too slow for your needs. Always balance torque and speed for your application.

Here are some tips for picking gear types and ratios:

  • Use planetary gearboxes for high torque and compact size.

  • Pick worm gearboxes if you need a 90-degree shaft and lower cost.

  • Choose spur or helical gears for high efficiency if you do not need a big torque increase.

  • Check the load torque and make sure your gearbox can handle it.

Reducing Mechanical Losses

You can increase torque of dc motor by reducing mechanical losses. Less friction means more of the motor’s power turns into useful torque. Here are steps you can take:

  1. Pick good bearings, brushes, and seals to lower friction.

  2. Keep your motor and gearbox well-lubricated and do regular maintenance.

  3. Make sure the motor shaft and load are lined up right.

  4. Use a motor with a good design to keep the magnetic field even.

  5. Choose iron parts with low losses and use thin sheets to build the core.

  6. Size your motor and gearbox correctly and mount them well to avoid extra vibration.

Tipp: Regular checks and good care help your motor give more torque and last longer.

When you follow these steps, you get more torque and horsepower from your dc motor. You also make sure the system runs smoothly and safely. If you want to increase torque using gears, always think about the gear ratio, gearbox type, and how to keep losses low. This way, you get the best performance for your application.

Examples and Calculations

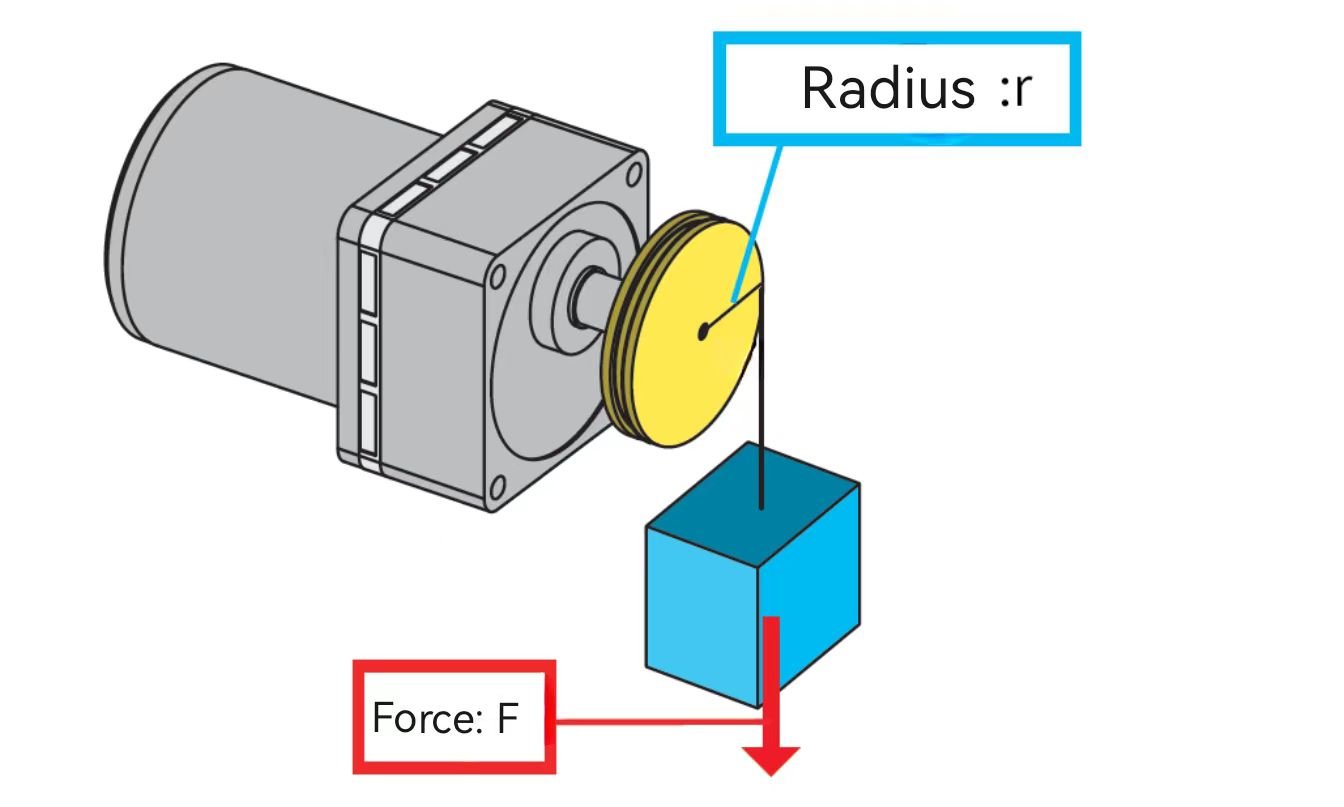

7803f71d12284cb4830230b665393c60

Electrical Upgrade Example

You can see how an electrical upgrade changes the torque of your dc motor by following these steps:

  1. Use the torque formula for a dc motor:
    torque = (Current × Voltage × Efficiency × 60) / (rpm × 2π)

  2. Write down your motor’s starting values. For example:

    • Current = 0.22 A

    • Voltage = 6 V

    • Speed = 1000 rpm

    • Efficiency = 0.1 (10%)

  3. Plug these numbers into the formula:
    torque = (0.22 × 6 × 0.1 × 60) / (1000 × 2 × 3.14) = 0.00126 Nm (or 1.26 mN·m)

  4. After you upgrade the motor (for example, increase current or voltage), use the new values in the same formula.

  5. Compare the new torque to the old torque to see the improvement.

🛠️ Tipp: Always check your motor’s limits before increasing voltage or current. Too much can damage the motor.

Gear Ratio Example

You can also increase torque by changing the gear ratio. When you use a gearbox, the output torque equals the input torque times the gear ratio, but the speed drops by the same amount. For example, if your motor gives 0.01 Nm of torque and you use a gear ratio of 5:1, the output torque becomes 0.05 Nm, while the speed drops to one-fifth.

Changing the gear ratio helps you get more torque for heavy loads. However, higher gear ratios can make your system slower and may increase current draw when you start moving. Always balance torque and speed for your needs.

⚙️ Anmerkung: Real gearboxes have some losses. The actual output torque is a bit less than the math says because of friction.

Comparing Results

Methode

Torque Gain

Speed Change

Efficiency Impact

Cost Impact

Electrical Upgrade

Direct

May increase

Can decrease if overheated

Low to Medium

Gear Ratio Change

Proportional to ratio

Decreases

Slight loss due to friction

Medium (gearbox needed)

  • Increasing torque electrically gives you fast results, but you must watch for heat and motor limits.

  • Using a gearbox multiplies torque without stressing the motor, but you lose speed and may need to buy new parts.

  • You should match your method to your application. For short bursts, electrical upgrades work well. For steady, high torque, gearboxes are often better.

Remember: The best way to increase torque depends on your dc motor, your load, and your budget.

Choosing the Right Method

Application Factors

You should think about a few things before you try to get more torque from your Gleichstrommotor. First, look at what you want your motor to do. Some jobs need high Drehmoment for just a short time. Other jobs need steady Drehmoment for a long time. How you use your motor changes which way is best.

Die Drehmoment in a Gleichstrommotor depends on the current in the windings. If you use more current, you get more Drehmoment. But more current can make the wires hot and drop the voltage. Bigger motors with thick wires can take more current and keep their speed. The motor’s constants, like Kv and Kt, show how voltage, speed, and Drehmoment work together.

Mechanical choices, like gearboxes, have their own limits. Each gearbox can only handle so much Drehmoment. The design and what it’s made of matter a lot. Metal gears last longer and can take more force than plastic ones. You should also think about how you use the motor. Quick stops or heavy loads can break the gearbox.

Here is a table to help you compare important things:

Faktor

Beschreibung

Impact on Torque Increase Decision

Gearbox Mechanical Torque Limits

Maximum load or force gearbox can handle, set by design and materials

Limits how much torque you can add mechanically; going over this can break the gearbox

Gearbox Design

Types include planetary, spur, worm gears, each with different strengths

Some designs handle more torque or fit in smaller spaces

Motor Electrical Characteristics

Torque depends on current, winding resistance, and motor size

Electrical upgrades work better with larger motors and lower resistance

Anwendungsbedürfnisse

Precision, speed, cost, and environment

Your job may need special features like high holding torque or custom gearboxes

You should always match your method to your job. For example, robots and CNC machines need high holding Drehmoment to stay in place. Medical tools need smooth, steady Drehmoment for careful work. Always check if your motor and gearbox can handle your load.

Quick Checklist

Use this checklist to help you pick the best way to get more Drehmoment from your Gleichstrommotor:

  • ✅ What is your main goal? (More Drehmoment, more speed, or both)

  • ✅ How much Drehmoment do you need for your load?

  • ✅ Does your motor have enough current ability?

  • ✅ Can your gearbox take the new Drehmoment?

  • ✅ Do you need high precision or holding Drehmoment?

  • ✅ What is your budget for upgrades?

  • ✅ Will your system run in tough places (heat, dust, shaking)?

  • ✅ Do you need special parts, like custom gearboxes or motor mounts?

  • ✅ Have you checked the maker’s limits for both motor and gearbox?

🛠️ Tipp: Always test your setup after you make changes. Watch for heat, noise, or shaking. These signs can show if your motor or gearbox is working too hard.

If you follow these steps, you can pick the right way to get more Drehmoment and keep your Gleichstrommotor safe and working well.

There are a few ways to make your DC motor work better. New research says advanced control strategies, like fuzzy logic controllers, help the motor run smoother and more reliably than just boosting torque. Always try your upgrades with real loads and look at your motor’s specs before changing anything. Check the quick checklist to keep your setup safe and working well. If you want to learn more, look at technical guides from trusted manufacturers.

FAQ

What is the safest way to increase torque in a DC motor?

You can use a gearbox to safely increase torque. This method does not change the motor’s wiring or power. Gearboxes multiply torque and protect your motor from overheating. Always check the gearbox rating before you install it.

Can you increase torque without losing speed?

You cannot increase torque without losing speed if you use gears. Electrical upgrades may give you more torque and speed for a short time, but the motor may overheat. Always watch for heat and check your motor’s limits.

How do you know if your motor can handle more current?

Check your motor’s nameplate or manual for the maximum current rating. If you run more current than this, the motor may get too hot or fail. Use a current meter to watch the current during operation.

Does rewinding a motor always increase torque?

Rewinding can increase torque if you use thicker wire or more turns. However, this job needs skill and special tools. If you do not rewind the motor correctly, you may damage it or reduce its life.

What happens if you use too high a gear ratio?

A high gear ratio gives you more torque but much less speed. If the ratio is too high, your machine may move too slowly. Always balance torque and speed for your application.
