A DC motor, which consists of various DC motor parts, changes direct current (DC) into movement energy. It is very important for industries like cars and electronics. DC motors work really well, often up to 90% efficient. This makes them great for jobs needing exact speed and power control.

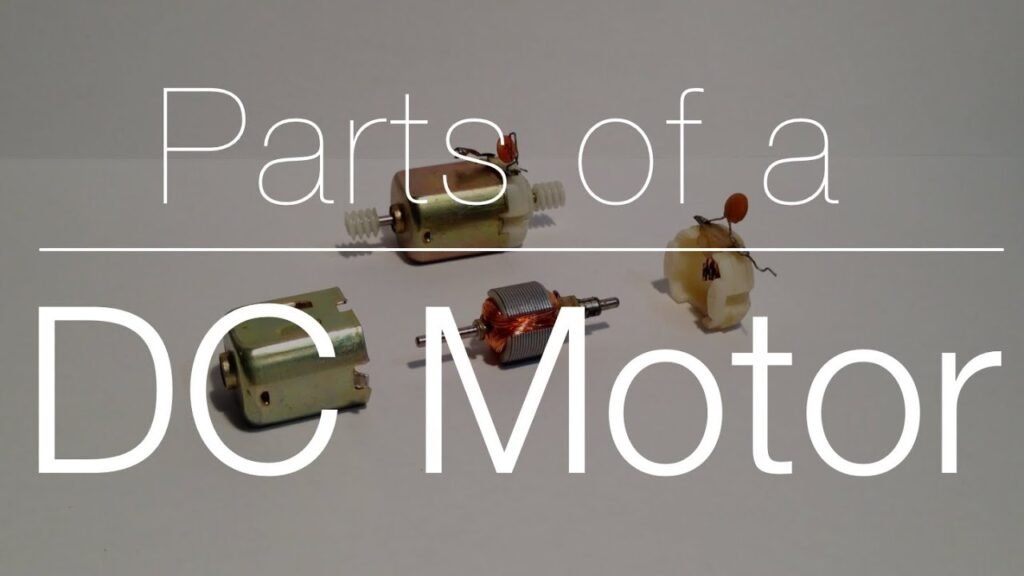

• Important parts of a DC motor include:

  • Armature: Makes electromagnetic force to help the motor move.

  • Commutator: Switches current direction for smooth spinning.

  • Brushes: Send electricity to the commutator.

  • Field windings or magnets: Create the magnetic field for the motor.

  • Rotor: Spins and connects to the shaft for movement.

  • Bearings: Lower friction and hold the shaft steady.

  • Frame and end caps: Protect the motor and keep it strong.

The DC motor market, driven by advancements in DC motor parts, is growing fast. It might go from $34.31 billion in 2023 to $74.36 billion by 2033. Better designs and energy-saving features make these motors more popular. They are perfect for jobs needing steady and accurate performance.

Principales conclusiones

• DC motors change electrical power into motion, making them important for cars and gadgets.

• Main parts include the armature, commutator, brushes, and bearings. Each part helps the motor work well.

• Taking care of the motor, like cleaning and checking brushes, makes it last longer.

• Picking between field windings or permanent magnets changes how it works. Permanent magnets are easier and save energy.

• The shaft must be strong and aligned to avoid damage and keep the motor running smoothly.

Armature in DC Motor Components

Role of the Armature

The armature is a key part of a DC motor. It changes electrical energy into movement energy. When direct current (DC) flows into the motor, the armature creates electromagnetic force. This force works with the magnetic field from the stator, making the rotor spin. The spinning armature creates torque, which powers the motor to do tasks like running machines or adjusting speed. Without the armature, the motor cannot create the motion it needs to work.

Construction and Materials Used

The armature is built to be strong and efficient. Its core is usually made of thin iron or steel layers to save energy. Copper wires are wrapped around the core to carry electricity. These wires are covered with insulation to stop short circuits. The armature is attached to the rotor, which connects to the shaft to move energy. The materials are picked to handle high power and last a long time. A good design helps the armature handle speed and torque while spinning smoothly.

💡 Consejo: Clean and check the armature often to keep your DC motor working longer.

Commutator in DC Motor Parts

How It Reverses Current

En commutator is very important for a DC motor. It changes the direction of current in the motor windings. This keeps the rotor spinning the same way. The commutator works with brushes that stay still while it turns. Each part of the commutator connects to certain armature windings. As it spins, it switches the connection between brushes and windings. This lets the motor make torque without stopping.

Electric commutators have copper segments on a spinning shaft. These parts help reverse current direction efficiently. This design makes it easier to control motor speed and torque. It also reduces the need for repairs, making commutators dependable in DC motors.

Why It Helps the Motor Run Smoothly

En commutator keeps the motor running smoothly by keeping steady contact with the brushes. Without it, the motor might stop or spin unevenly. The commutator switches current direction at the right time. This keeps the rotor spinning evenly, which is needed for things like robots or electric cars.

En commutator and brushes work together to lower motor wear. It turns electrical energy into movement power efficiently. Its design helps the motor run quietly and with less shaking. This makes the motor reliable for many uses.

💡 Consejo: Check the commutator often for dirt or damage. Clean it carefully to keep your DC motor working well and lasting longer.

Brushes in DC Motor

How Brushes Transfer Current to the Commutator

Brushes are very important for how a DC motor works. They move electrical current from the power source to the commutator. En commutator then sends it to the armature windings. This keeps the rotor spinning without stopping. Brushes stay still while the commutator turns, creating a sliding connection for electricity to flow easily.

The brushes and commutator work together to create torque. The commutator changes the current direction, and the brushes keep steady contact. This helps the motor run smoothly and reliably. Without brushes, the motor couldn’t turn electrical energy into movement properly.

💡 Consejo: Check that brushes are lined up right. This avoids uneven wear and keeps the motor working well.

Materials and Maintenance Considerations

Brushes are usually made from carbon or graphite because they last long and conduct electricity well. These materials also protect the commutator from wearing out too fast. Some brushes have copper for better conductivity in powerful motors.

Taking care of brushes is key to making your DC motor last longer. Look for problems like grooves, threads, or copper marks on the brushes. These issues can lower efficiency or even break the motor if ignored.

Brush life depends on how much work the motor does. For example:

To make brushes last longer, watch for signs like shorter length or rough surfaces. Replace them when needed to avoid damaging the commutator and keep the motor running well.

⚙️ Consejo profesional: Clean the commutator often. This lowers friction and helps brushes connect better with the commutator.

Field Windings or Permanent Magnets in DC Motor

How They Create Magnetic Fields

Field windings or permanent magnets make the magnetic field in a DC motor. This field works with the armature to create torque, which spins the motor. Field windings use insulated wire coils wrapped around the stator. When electricity flows through these coils, they make an electromagnetic field. This field combines with the rotor’s movement to create mechanical energy.

Permanent magnets give a steady magnetic field without needing electricity. These magnets are attached to the stator and keep their strength over time. Whether your motor uses field windings or permanent magnets, the magnetic field helps the motor run smoothly. Without this field, the motor can’t turn electrical energy into movement properly.

💡 Consejo: If your motor has field windings, check for loose wires often to keep it working well.

Comparing Field Windings and Permanent Magnets

Choosing between field windings and permanent magnets depends on your needs.

• Permanent magnet motors are more efficient because they avoid energy loss from induction currents. This saves copper and reduces losses like hysteresis and eddy currents.

• Permanent magnet motors are simpler, easier to maintain, and cost less over time.

• They also allow for better power control, making them great for jobs needing exact speed adjustments.

Field windings offer flexibility. You can change the magnetic field strength by adjusting the current. This is helpful for tasks needing torque control or handling different loads. While field windings need more care, they are more adaptable than permanent magnets.

⚙️ Consejo profesional: Use permanent magnets for high efficiency and low upkeep. Choose field windings for tasks needing adjustable torque.

Shaft in DC Motor Components

How It Transfers Mechanical Energy

The shaft in a DC motor is very important. It moves energy from the rotor to other parts like gears or pulleys. This helps the motor do jobs like turning wheels or running machines. When the rotor spins, the shaft sends this spinning motion out. This changes the motor’s electrical energy into useful mechanical power.

How well this works depends on the shaft’s design and the load. DC motors are usually 70% to 90% efficient. This means they waste little energy and work reliably. Their high efficiency makes them great for tasks needing steady speed and power.

Here’s a simple look at how the shaft performs:

💡 Consejo: Check how the shaft works with different loads to keep it efficient and avoid damage.

Why Alignment and Strength Matter

Keeping the shaft lined up right is very important. If it’s not aligned, the motor may shake, make noise, or wear out faster. Check the alignment often to stop these problems and keep the motor working well.

The shaft also needs to be strong. It must handle spinning forces and heavy loads without bending or breaking. Strong materials like steel or alloy are used to make shafts last longer. A strong shaft lowers the chance of breaking and helps the motor last longer.

To keep your motor in good shape, follow these tips:

• Look at the shaft often for damage or wear.

• Lubricate it properly to reduce friction and heat.

• Replace damaged shafts quickly to protect the motor from more harm.

By keeping the shaft aligned and strong, your motor will work better and last longer.

⚙️ Consejo profesional: Use tough shafts for heavy-duty jobs to save on repairs and keep the motor reliable.

Bearings in DC Motor Parts

How Bearings Reduce Friction

Bearings are very important for a DC motor to work well. They lower friction between the spinning shaft and the motor’s still parts. Without bearings, the shaft would face too much resistance. This could cause it to overheat and wear out quickly. Bearings let the rotor spin easily, saving energy and improving efficiency.

By cutting down friction, bearings help the motor last longer. They stop extra stress on the shaft and other parts, keeping the motor reliable. Good bearings make the motor stronger and help it give steady power.

💡 Consejo: Add lubricant to bearings often to make them last longer.

Common Types of Bearings in DC Motors

Different bearings are used in DC motors based on their job. Here are the main types:

1. Ball Bearings: These are the most common type. They have small steel balls that roll between two rings. Ball bearings are great for high speeds and last a long time.

2. Roller Bearings: These use rollers instead of balls. They can carry heavier loads and are used in big machines.

3. Sleeve Bearings: These are simple and cheap. They have a smooth surface to lower friction and are used in small motors.

4. Thrust Bearings: These handle forces along the shaft’s length. They are used when keeping the shaft steady is important.

Each type has its own benefits. Picking the right one depends on speed, weight, and how the motor is used.

⚙️ Consejo profesional: Check bearings for wear, like noise or shaking, to avoid motor problems.

Other Supporting DC Motor Components

Frame and Its Structural Role

En frame of a DC motor is very important. It works as the outer cover, keeping parts like the rotor safe from harm. The frame also holds the motor steady while it runs.

A strong frame helps the magnetic circuit work properly. If the core inside the frame gets damaged or overheats, the magnetic circuit may stop working well. This can waste energy and lower how well the motor works. Keeping the frame in good shape helps the motor run smoothly in different conditions.

Frames are usually made from tough materials like steel or cast iron. These materials last long and handle tough jobs. Checking the frame often can help you find cracks or heat damage early. Fixing these problems quickly keeps the motor working well.

💡 Consejo: Look at the frame often for cracks or damage. Fixing issues early helps save energy and keeps the motor running well.

End Caps and Their Protective Function

End caps are covers that protect the DC motor. They keep dust, water, and dirt away from important parts like brushes and bearings. This protection helps the motor last longer and work better.

End caps also hold the rotor and shaft steady. This lowers shaking and stops parts from wearing out too fast. They also make the motor safer by covering moving parts so no one gets hurt.

Most end caps are made from light but strong materials like plastic or aluminum. These materials protect the motor and are easy to handle. Check the end caps often for cracks or loose parts. Replace broken end caps quickly to keep the motor safe from dirt and damage.

⚙️ Consejo profesional: Clean end caps often to remove dirt. This keeps your motor safe and working well.

Each DC motor part helps it work well and efficiently. The armature, commutator, brushes, and other parts turn electricity into movement. Taking care of these parts keeps the motor running smoothly. Clean and check the rotor, brushes, and bearings often. This stops damage and keeps the motor working its best. By maintaining these key parts, your motor will last longer and perform reliably in different tasks.

PREGUNTAS FRECUENTES

What does a DC motor do?

A DC motor changes electrical energy into movement energy. It helps run machines by spinning parts like gears or pulleys.

How do you take care of DC motor brushes?

Check brushes often for damage or wear. Replace them if they are too short or rough. Clean the commutator to keep it working smoothly and lower friction.

Why is the commutator needed in a DC motor?

The commutator switches the current direction in the armature. This keeps the motor spinning and working smoothly.

How do bearings help a motor work better?

Bearings lower friction between the spinning shaft and still parts. This stops overheating, reduces wear, and makes the motor run efficiently.

What should you look at when maintaining a motor?

Check the armature, brushes, commutator, bearings, and shaft alignment. Clean off dirt and grease. Lubricate moving parts to make the motor last longer.
