Maximizing how a 12-volt DC high-torque motor works is essential to maximize performance, improving its efficiency, speed, and torque. This enhancement allows it to handle tough tasks more effectively.

1. Efficiency: Motors like the Maxon RE50 can work at 91% efficiency, showcasing their ability to save a significant amount of energy.

2. Speed: These motors can spin up to 18,000 rpm, making them fast for jobs that require precision.

3. Torque: Models like the Neugart WPLE040-20 generate 8 Nm of torque, enabling them to manage heavy loads with ease.

Simple adjustments, such as modifying voltage or utilizing gearboxes, are crucial. Testing these tools is vital to ensure the motor lasts longer and maximizes performance.

Principales conclusiones

• Make your motor work better by using the right voltage and current. This stops it from getting too hot and helps it last longer.

• Add gearboxes to make the motor stronger for tough jobs. Pick the right gears to fit what you need to do.

• Take care of your motor often. Clean it, oil the parts that move, and check for damage to keep it working well.

• Use systems to watch and adjust how the motor works as it runs. This keeps it steady when the load changes.

• Keep track of important things like how often it works, how well it performs, and its quality. This helps you make it better over time.

Understanding the Basics of DC Motor Performance

How Voltage and Current Affect Torque

Voltage and current are key to a motor’s torque. Increasing voltage raises current, creating a stronger magnetic field. This stronger field boosts torque. For example, when a motor handles a heavy load, it needs more current to keep working well. But too much current can cause overheating. So, it’s important to balance voltage and current for the best results.

Here’s a simple table to explain key terms:

By controlling these factors, you can get more torque without damaging the motor.

The Relationship Between Load and Motor Efficiency

A motor’s efficiency depends on the load it carries. Heavier loads need more power to keep speed and torque steady. This can use more energy. For example, adjusting load torque can stop overheating and reduce wear. This helps the motor last longer and work better.

Benefits of managing load torque include:

• Avoiding overheating and damage.

• Lowering repair costs by reducing wear.

• Using less energy during operation.

Watching load conditions closely keeps your motor running efficiently.

Key Performance Metrics for High-Torque Motors

To check how well a motor works, look at speed, torque, and efficiency. Speed, in RPM, shows how fast tasks get done. Torque measures how much weight the motor can handle. Efficiency shows how well it turns electricity into movement.

Good motors can be up to 90% efficient. But this means cutting down on energy and heat losses. For example, uneven voltage and high heat can lower efficiency and torque. Regular checks and care will keep your motor ready for tough jobs.

Practical Methods to Maximize Performance

Adjusting Voltage to Optimize Speed and Torque

Changing voltage is an easy way to improve motor speed. Higher voltage makes the motor spin faster if the load stays the same. But when the load gets heavier, the motor slows down. To get the best results, adjust the voltage carefully for your needs.

For example, tests show that better voltage control can make motors respond faster. A motor with improved voltage settings had a response time of 100 ms, compared to 285 ms with older methods. This proves that fine-tuning voltage helps motors work better.

Consejo: Always use a steady power source to keep voltage stable. Unstable voltage can cause overheating and shorten the motor’s life.

Using Gearboxes to Increase Torque Output

Gearboxes help increase torque while keeping motor speeds manageable. Picking the right gear ratio boosts torque for heavy tasks. High-ratio gearboxes are great for robots and machines needing strong torque.

For instance, pairing fast motors with high-ratio gearboxes improves torque for lifting heavy loads. But high ratios can make motors harder to move backward. Think about this trade-off when designing systems needing precise control.

Nota: Use lightweight actuators with efficient gearboxes to reduce system weight and improve performance.

Upgrading Motor Drivers for Enhanced Control

Better motor drivers can improve control and efficiency. New drivers have features like smart gate drives and advanced tuning. These upgrades make designs simpler, cut costs, and improve accuracy.

For example, compact motor drivers with high power density save space and deliver more power. Tuning PI controllers in these drivers ensures better speed and torque control, improving motor performance.

Consejo: Update your motor driver software often to get new features and keep performance at its best.

Reducing Friction and Heat for Better Efficiency

Friction and heat can lower your 12-volt DC high-torque motor’s efficiency. Fixing these problems helps the motor last longer and use less energy. Here’s how to handle friction and heat better.

1. Use High-Quality Lubricants

Lubricants reduce friction between moving parts. Apply good lubricants to bearings and gears to prevent wear. This saves energy and makes the motor run smoothly. For example, synthetic lubricants work better than regular oils. They handle high heat and last longer. Check and replace lubricants often to keep the motor working well.

2. Improve Cooling Systems

Too much heat can hurt motor efficiency. Heat raises resistance in the windings, lowering torque and performance. Upgrade the cooling system to manage heat. Studies show perforated fins improve heat transfer by 38.09%. This helps cool the motor faster and prevents overheating.

Consejo: Add a fan or heat sink for extra cooling. These tools work with fins to keep the motor at a safe temperature.

3. Lower Mechanical Friction

Mechanical friction happens when parts like gears or bearings rub together. Align all parts properly during setup to avoid extra friction. Misaligned parts waste energy and cause overheating. Use low-friction materials like ceramic bearings to reduce resistance and boost efficiency.

4. Perform Regular Maintenance

Maintenance is key to controlling friction and heat. Check for wear, strange noises, or vibrations. Clean the motor to remove dust that increases friction. Replace damaged parts quickly to prevent bigger problems. A clean, maintained motor works better and lasts longer.

Nota: Skipping maintenance can damage the motor permanently. This shortens its life and raises repair costs.

By reducing friction and controlling heat, your motor will work more efficiently. These steps improve performance and make the motor reliable for tough tasks.

Trade-offs When Enhancing Motor Performance

The Impact of Overvoltage on Motor Lifespan

Too much voltage can harm your motor’s lifespan. High voltage makes the motor run too fast, wearing out parts quickly. This reduces how well it works and how long it lasts. For example, if overvoltage lasts over three minutes, it causes problems. These problems change the RMS voltage, lowering the motor’s efficiency and durability.

To avoid this, check voltage levels often. Use a steady power source to keep voltage safe. Fixing uneven voltage and odd harmonics (not multiples of three) helps the motor stay healthy. Managing these issues makes the motor more reliable and last longer.

Consejo: Add a voltage regulator to keep power steady and protect your motor from damage.

Balancing Torque and Speed for Application Needs

Getting the right mix of torque and speed is key for better motor performance. Torque helps the motor lift or push heavy things. Speed decides how fast tasks get done. But improving one can lower the other. For example, using a high gear ratio boosts torque but slows the motor. Focusing on speed may lower torque for tough jobs.

Think about what your task needs most. For heavy work like lifting, pick a gearbox with a high ratio for more torque. For faster tasks like moving conveyor belts, use a lower ratio to keep speed.

Example: A robotic arm for assembly needs strong torque to lift parts. It also needs enough speed to work efficiently. A medium gear ratio balances both needs.

Efficiency vs. Power: Managing the Trade-offs

Torque and power are important for motor performance. Power comes from torque and speed working together. More torque can increase power, but it might lower efficiency. For example, a fast motor with a high gear ratio loses energy in the gearbox. A low gear ratio saves energy but needs more torque input.

To handle these trade-offs, adjust motor torque and gearbox ratios. For high-power tasks, pick efficient gearboxes and align parts correctly. Regular care, like adding lubricant and checking for wear, also improves efficiency.

Nota: While more power is useful, think about energy use and heat. Balancing these factors keeps the motor working well for a long time.

Advanced Tips for Optimizing DC Motor Control

Using Pulse Width Modulation (PWM) for Precision

Pulse Width Modulation (PWM) helps control your motor accurately. Changing the duty cycle adjusts the motor’s speed and torque. This method gives the motor just enough power to work well. It also makes the motor more efficient and responsive.

Other advanced techniques can improve PWM even more. Field-Oriented Control (FOC) and Model Predictive Control help the motor handle changes in load or speed. Adaptive Control and Neural Networks use live data to adjust PWM signals. Fuzzy Control Systems and State-Space Controllers are great for tricky tasks.

Consejo: Use a high-frequency PWM signal to lower noise. Frequencies over 20 kHz work well for most motors.

Designing Circuits for Stability and Efficiency

Good circuits help motors run smoothly and save energy. Pick parts that match the motor’s voltage and current needs. Use capacitors to remove noise and keep the power steady. Diodes protect the motor from sudden voltage spikes.

MOSFETs or IGBTs are great for reducing energy loss. They make the motor more efficient. Keep the motor cool with heat sinks or fans to avoid overheating. Too much heat can hurt how the motor works.

Nota: Arrange circuit parts neatly. Short wires lower resistance and improve efficiency.

Implementing Feedback Systems for Real-Time Adjustments

Feedback systems help motors stay stable during changes. They watch the motor and adjust speed or torque when needed. For example, feedback fixes problems caused by sudden load changes.

Studies show feedback systems improve motor control. At first, they make quick fixes. Later, they predict changes to keep the motor running smoothly. This makes the motor more efficient over time.

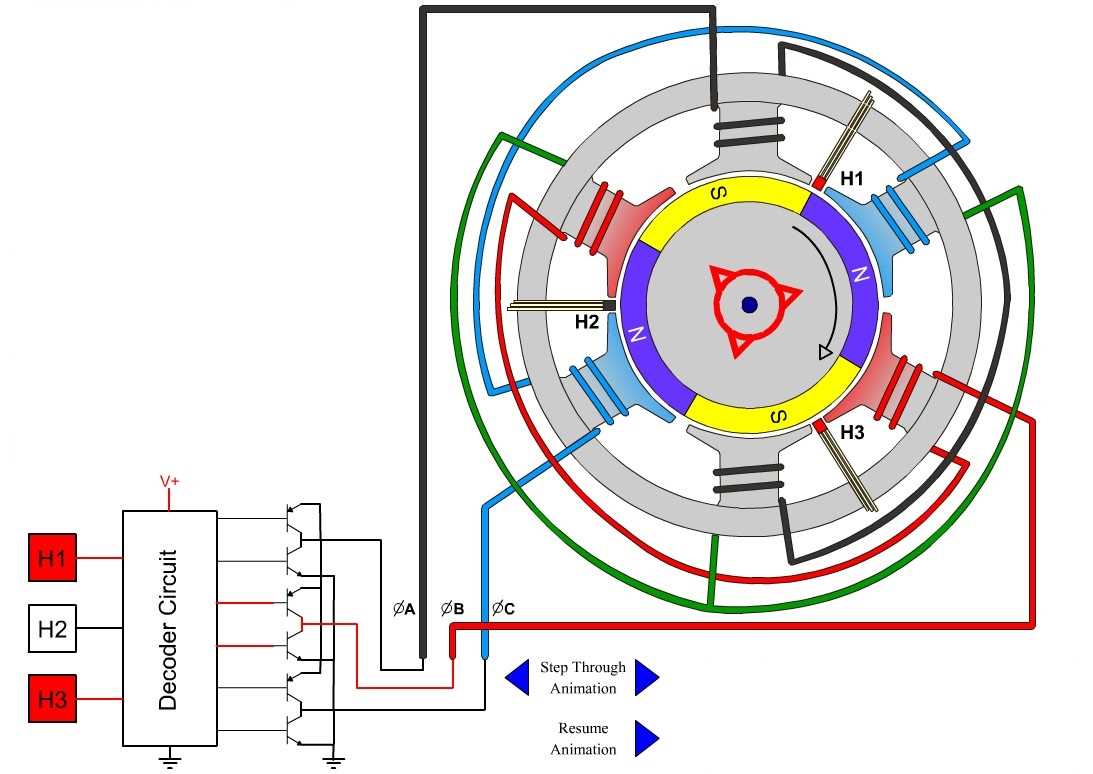

Consejo: Use sensors like encoders or Hall effect sensors to collect data. Accurate data helps feedback systems make better adjustments, improving motor reliability.

Improving your motor’s performance needs a few simple steps. Changing voltage can boost speed and torque. Gearboxes help increase torque for tough jobs. Better motor drivers give you more control and save energy.

Check how well these methods work by tracking key metrics:

Try these ideas to find what works best for your motor. Doing maintenance more often, like every 300 hours, helps it run better and last longer. Regular care keeps your motor strong and dependable.

Consejo: Write down maintenance dates and results. This helps you improve motor performance over time.

PREGUNTAS FRECUENTES

How do you know if your motor is too hot?

Look for strange smells, high heat, or weaker performance. Use a temperature sensor to check the motor’s heat level. If it gets hotter than the safe limit, turn it off right away to avoid damage.

Consejo: Check the motor often for overheating while it’s running.

What’s the best way to take care of your motor?

Keep the motor clean by removing dust and dirt. Add lubricant to moving parts to stop friction. Replace broken parts quickly. Check connections often to make sure everything works well.

Nota: Do maintenance every 300 hours to keep it running smoothly.

Can higher voltage make your motor stronger?

Yes, more voltage can increase torque. But too much voltage can harm the motor and make it wear out faster. Use a voltage regulator to keep the power steady and safe.

Alert: Never go over the motor’s voltage limit to avoid overheating.

How do gearboxes help motors work better?

Gearboxes boost torque by changing the gear ratio. They help the motor carry heavier loads while keeping speeds steady. Pick a gearbox that fits your task for the best results.

What tools can you use to check motor efficiency?

Use sensors like encoders or Hall effect sensors to measure speed and torque. Add a feedback system to adjust the motor in real time. These tools help the motor work better and handle changes easily.

Consejo: Pair sensors with software to get detailed performance reports.
