Have you ever struggled to pick the best small DC gear motor for your project? Many people face this challenge. You want your project to run smoothly, but choosing the wrong motor can lead to problems. Gear motors help by adjusting torque and speed, which is vital for top performance. You need to consider things like size, duty cycle, and efficiency. Sometimes, you might wonder about Brush vs Brushless Motor options. If you match the motor to your project’s needs, you get better reliability and results.

Основные выводы

• Know what your project needs. Check the load, torque, speed, and power needed to Выберите правильный двигатель.

• Figure out torque the right way. Use the formula Torque (T) = Force (F) × Radius (r). This helps you see if your motor can handle the job.

• Pick the right speed range. Make sure the motor’s speed matches your project. This stops the motor from stalling or getting too hot.

• Pick the right power source. Make sure your motor uses the right voltage and current. This keeps the motor from breaking.

• Think about size and how to mount it. Make sure the motor fits in your project space. It should be easy to put in place.

Project Needs

When you start a new project, you want to make sure your маленькие мотор-редукторы fit your needs. If you skip this step, you might end up with a gear motor that fails or doesn’t perform well. Let’s break down why you should look at each factor before you choose a dc gear motor.

Load and Torque

You need to know how much force your project requires. If you pick a gear motor with low torque, it won’t move heavy loads. High torque is important for robotics and automation, especially in high torque applications like conveyor belts or robotic arms.

Совет: Always calculate torque before you buy a gear motor. This helps you avoid stalling or overheating.

Here’s why you should assess load and torque:

1. You want your gear motor to handle the weight or resistance in your application.

2. Use the formula Torque (T) = Force (F) × Radius (r) to find out what you need.

3. Measure the distance from the center of the gearbox to where the force acts.

4. Add extra power for safety and better performance.

5. Account for efficiency losses in your calculations.

For example:

• Робототехника: If your robotic arm lifts 5 kg, you need to calculate the force and radius to get the right torque.

• Automation: Conveyor belts need gear motors with enough torque to move products smoothly.

If you ignore torque, your dc gear motor may wear out quickly or fail during operation.

Диапазон скоростей

Speed matters because every project has different needs. If you want precise control, you need to match the speed and torque of your gear motor to your application.

Why should you care about speed range?

1. The gear ratio in your gearbox changes the speed and torque.

2. A higher gear ratio gives you slower speed but more torque.

3. A lower gear ratio means faster speed but less torque.

4. Matching speed and torque helps you avoid problems like stalling or overheating.

Here are common speed ranges for small gear motors:

• Motors under 500 RPM work best for low-speed, high torque jobs like industrial machinery.

• Motors between 501-2,000 RPM are great for automotive systems and consumer electronics.

• Motors from 2,001-10,000 RPM fit medical equipment and dental tools.

• Motors above 10,000 RPM are for specialized, high-speed machines.

If you pick the wrong speed, your gear motor might not work as expected in your robotics and automation project.

Power Source

The power source affects how your dc gear motor runs and how long it lasts. You want to choose the right power for your project to keep your gear motor safe and efficient.

Why does power source matter?

• Batteries are the most common choice for small gear motors. They give you portability and flexibility.

• Battery-powered dc motors work well in toys, drones, industrial tools, and renewable energy systems.

• If you run your gear motor above its rated power, it can overheat or wear out faster.

• Too much current can damage brushes and bearings in your dc gear motor.

• High voltage makes your gear motor run too fast, which can shorten its life.

Примечание: Always operate your gear motor at or below its nameplate ratings to avoid overheating and extend its lifespan.

If you ignore power source, your gear motor may fail early or not deliver the speed and torque you need.

Size and Mounting

Size and mounting decide how your gear motor fits into your project. If you pick the wrong size, you might struggle to install your gear motor or connect it to your gearbox.

Why should you check size and mounting?

• Shaft diameter must match your couplings or mechanisms. Common sizes range from 3 mm to 8 mm.

• Larger shafts are better for heavy-duty projects.

• The mounting style affects how you attach your gear motor.

• Orientation matters. You want your gear motor to fit the space and work smoothly.

• Lubrication keeps your gearbox running quietly and prevents wear.

If you ignore size and mounting, you may face problems with installation or performance in your robotics and automation project.

Совет: Always check the environment where you’ll use your gear motor. Temperature, moisture, and dust can affect performance. Motors with higher IP ratings resist water and dust better.

You want your small gear motors to last and perform well. That’s why you should always consider load, torque, speed, power, size, mounting, and environment before you choose a dc gear motor for your project.

Selecting the Right Motor

When you pick a motor, every detail should fit your project. If you skip steps, your gear motors might not work well. They could even break or not give the power you want. Let’s see why each part is important when you choose a motor.

Voltage and Current

You must match the voltage and current to your power supply. If you get this wrong, your project can have big problems.

• Use the right voltage and current for good performance.

• Staying in the safe range keeps your motor working well.

• The correct voltage and current help your motor last longer.

Wrong voltage can hurt your motor parts. Too much voltage can break insulation and cause early failure. Not enough voltage makes your motor weak and slow. Wrong current can make your motor too hot and waste energy. It can also hurt batteries or even start a fire. Using high current for a long time ruins motors and controllers. Low voltage means less torque and speed, so your motor may not work for your project.

Совет: Always check your power supply before you pick a motor. This saves energy and keeps your project safe.

Коэффициент передачи

Gear ratio is very important when you pick a motor. It changes how much torque and speed your dc gear motor gives. If you pick the wrong gear ratio, your project might not work right.

1. A bigger gear ratio makes the output slower.

2. Higher gear ratios give you more torque.

3. Tests show this is true in real life.

Think about riding a bike. When you use a lower gear, it is easier to pedal up hills (high torque), but you go slower (low speed). When you use a higher gear, you go faster, but it is harder to pedal up hills (low torque). That is why gear ratios matter for dc motors.

Gear ratios are used in many things:

• Robotics: Moves wheels and arms for better control.

• Automotive: Runs window lifts, seat adjusters, and wipers.

• Industrial machines: Moves conveyor belts for smooth work.

• Consumer electronics: Moves toys, tools, and home gadgets.

• Medical field: Controls surgical tools and wheelchairs for quiet, careful moves.

The gear ratio in your gearbox sets the balance between speed and torque. For example, a 10:1 gear ratio means your motor turns ten times for one turn of the output shaft. This gives more torque but less speed. That is why you must match the gear ratio to your project.

Brush vs Brushless Motor

When you look at brush vs brushless motor choices, you want to know which is best for your project. Each type has good and bad points.

Brushless dc motors last much longer than brushed dc motors. You can use brushless motors for tens of thousands of hours. Brushed motors wear out after a few thousand hours. Brushless motors are easier to take care of. You only need to check the bearings. Brushed motors need new brushes and commutators often.

Brushless dc motors are best when you want high efficiency, long life, and low noise. You find them in electric cars, smart gadgets, and factories. Brushed dc motors are good for simple toys and home devices. If your project needs to be quiet and easy to control, brushless motors are better.

Motor Efficiency and Noise

Efficiency and noise are important when you pick a motor. You want your dc gear motor to use power well and run quietly. This is very important in robotics and automation projects.

Brushless motors turn electricity into movement better than brushed dc motors. This means less wasted energy and more power for your project. Brushless motors are also quieter because they do not have brushes rubbing on the commutator. This makes them great for medical tools and smart devices where you need low noise.

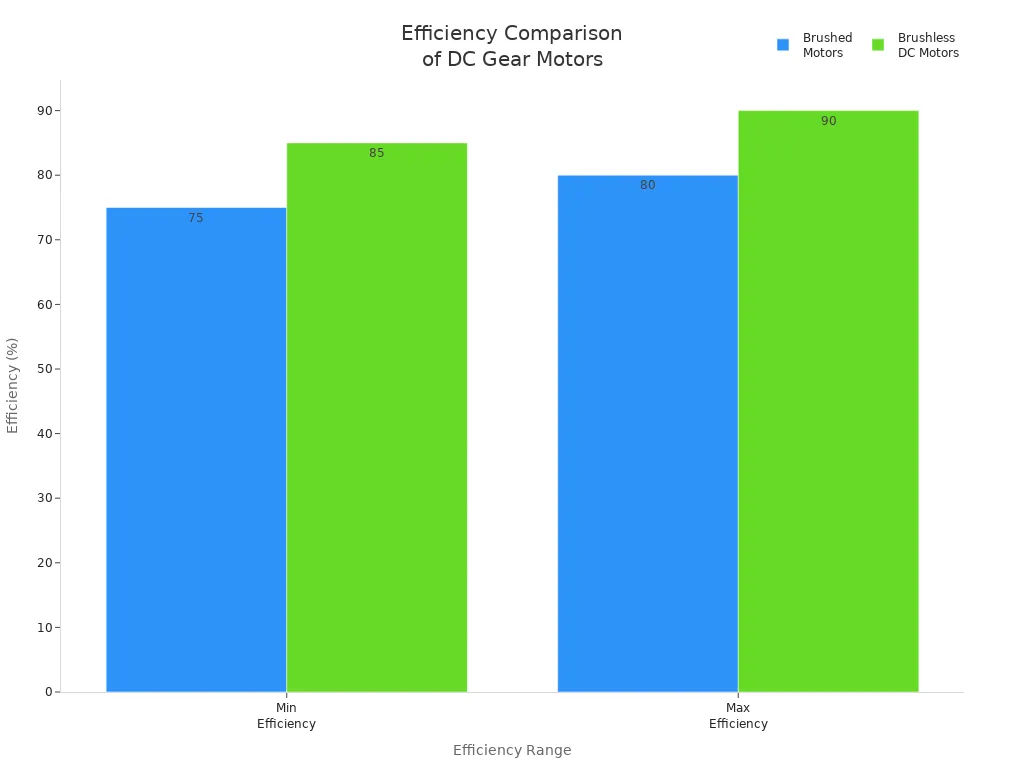

Small dc gear motors are usually 70% to 90% efficient, depending on how they are made and used. The type of motor changes how loud it is. DC motors make noise with many different sounds, and the noise changes with speed and motor parts. If you need a quiet place, like in medical or home electronics, brushless motors are best.

Примечание: Always think about efficiency and noise when you pick a motor. High efficiency saves power. Low noise keeps your workspace nice.

Picking a motor means matching voltage, current, gear ratio, and motor type to your project. If you do this right, your gear motors will give you the speed and torque you want. They will also work well and last a long time.

Контроль скорости

If you want your project to work well, you must control the speed of your small dc gear motors. Speed control is important because it gives you better torque and higher efficiency. It also helps your motor last longer and keeps your project working as it should.

Adjustable Speed Options

There are different ways to change the speed of dc motors in your project. Each way changes how your gear motor works. It can affect torque, rpm, and efficiency. Here are some common ways to adjust speed:

You can use PWM to change the voltage and speed of your dc gear motors. This way saves energy and lets you change speed easily. Feedback systems use sensors to keep your gear motor at the right rpm. This is helpful in robotics and automation when you need things to be exact.

Speed Controllers

Why do you need a speed controller for your dc gear motor? It lets you control speed, torque, and gear ratio very well. It also keeps your motor safe and helps your project work better.

Here are some types of speed controllers:

• DC gear motors often use PWM controllers for smooth speed changes and strong torque at low rpm.

• Brushless dc motors need electronic controllers for good speed and efficiency.

• Inverter units work with three-phase induction motors for variable speed and better results.

• AC speed control motors use single-phase capacitor-run induction motors for simple speed changes.

Pick a controller that fits your project, the type of dc motor, and the gear ratio you need.

Совет: Always choose a controller that matches your motor’s voltage and current. This keeps your gear motor safe and helps it last longer.

Совместимость

Why is compatibility important? If you use the wrong controller, your dc gear motor can get too hot or not work right. You might lose torque or break your gearbox. Using the right controller makes your motor run smoothly, saves energy, and works better.

• If you use the wrong controller, your gear motor can overheat and not last as long.

• The right match lowers torque ripple and keeps your project running well.

• Make sure your controller can handle the highest current your dc gear motor needs.

When you focus on speed control, you get the best from your dc gear motors. You save energy, protect your motor, and help your project work better in any situation.

Compare and Choose

When you get to the last step, you need to look at all your choices. This is important because skipping this step can cause problems. You might pick a motor that does not work well or fit your project. Comparing motors helps you avoid trouble and makes your robotics and automation work better.

Brands and Models

There are many brands and models of dc gear motors. Each brand gives you different speeds, voltages, and gear setups. You should check more than one brand.

You need to compare the specs. This helps you get the right gear ratio, speed, and voltage. Some motors work better for certain jobs.

Reviews and Support

Reading reviews helps you find problems with dc gear motors. You should check reviews to learn from other people. Here are some issues people talk about:

Good support helps you fix problems fast. It keeps your project working.

Надежность

You want your dc gear motor to last a long time. Reliability saves you time and money. Here are ways to help:

• Motors made for long use do not overheat.

• Match voltage and current to your power supply.

• Good airflow and cooling stop overheating.

• Do not overload or stall your gear motor.

• Use the right duty cycle for your job.

• Keep motors clean and dry to stop damage.

• Watch out for shocks and dirt in the gear chain.

Mistakes can cause overheating and bad performance. Picking the wrong size or weight can mess up your project.

Tip: Always compare gear motors for your project. Careful picking means better results and fewer problems.

Picking the right small DC gear motor with adjustable speed is important. It can help your project work well. You need to think about every part of your project. Here is a simple checklist you can use:

• What your project needs

• How much load and torque you need

• How you will control speed

• The gear ratio you want

• The power and voltage needed

• The size and how to mount it

• How long it will run and where it will be used

If you follow these steps, you get more than just a working motor. You make your project work better, use less energy, and spend less money.

Choosing carefully means you will have fewer problems and more success. Your project should be the best it can be, so take your time and enjoy what you build! 🚀

ЧАСТО ЗАДАВАЕМЫЕ ВОПРОСЫ

Why should you choose a gear motor with adjustable speed?

You get more control over your project. Adjustable speed lets you match the motor’s output to different tasks. This helps you avoid damage and keeps your system running smoothly.

Why does torque matter when picking a small DC gear motor?

Torque decides if your motor can move the load. If you pick a motor with low torque, your project may stall or fail. High torque gives you better performance and reliability.

Why do you need to check the motor’s efficiency?

Efficient motors use less power and create less heat. You save energy and money. Your project runs longer without overheating. Efficiency also means quieter operation.

Why is matching the power source important for your gear motor?

You protect your motor from damage. The right power source keeps your motor safe and working well. If you mismatch voltage or current, you risk overheating or short circuits.

Why should you read reviews before buying a DC gear motor?

Reviews show real problems and strengths. You learn from other users’ experiences. This helps you avoid common mistakes and pick a motor that fits your needs.
