Why Inrunner Brushless DC Motors are essential for high-speed performance and precision control applications

Оглавление

Inrunner brushless dc motors are very important for fast and precise control. Their design lets them spin very fast and work well. They also react quickly. Many industries use these motors for hard jobs in small spaces. You can find these motors in CNC machines, robots, electric cars, and medical tools. The table below shows how different industries use inrunner brushless dc motors for good control and steady work:

Industry Sector

Примеры применения

Industrial Automation

Robots, CNC machines

Transportation

Electric vehicles, aircraft

Medical Equipment

Artificial hearts, blood pumps

Household Appliances

Vacuum cleaners, washing machines

Water Sports & Transportation

Electric surfboards, submersibles

Основные выводы

  • Inrunner бесщеточные двигатели постоянного тока spin very fast. They fit into small spaces easily. This makes them great for jobs that need speed and accuracy. Their inside rotor design helps keep the motor cool. It also makes the motor quiet and dependable. This means fewer repairs and a longer life for the motor. Electronic control and sensors help these motors react fast. They can move with a lot of accuracy. This is good for robots, drones, and CNC machines. Inrunners use less energy when running fast. They also stay cooler than other motors. This makes them work better and last longer. Many industries use these motors. You can find them in automation, electric vehicles, medical devices, and drones. They are chosen because they are strong, accurate, and last a long time.

Inrunner Brushless DC Motors

Design and Structure

Inrunner brushless dc motors are special because of their inside rotor. The permanent magnets are on the rotor, which spins inside the stator. The stator has electromagnetic coils and does not move. This design helps the motor stay steady and cool when it spins fast. The stator is made from thin steel layers. These layers guide the magnetic field and help the motor go fast. The rotor uses strong magnets to make more torque and stop shaking, called cogging. Hall sensors watch where the rotor is, so the motor can move exactly how it should.

This design has many good points compared to other motors. The inside rotor lets inrunner brushless dc motors spin faster and stay strong. The coils do not move, and the magnets spin, so there are no brushes or commutators. This means the motor is quieter and needs less fixing. The small size also helps the motor fit in tight places. That makes these motors great for tough jobs.

Примечание: The inside rotor design gives three times more torque density in a small space. This lets the motor work in direct drive systems. These systems save energy and do not need extra parts like gearboxes.

How They Work

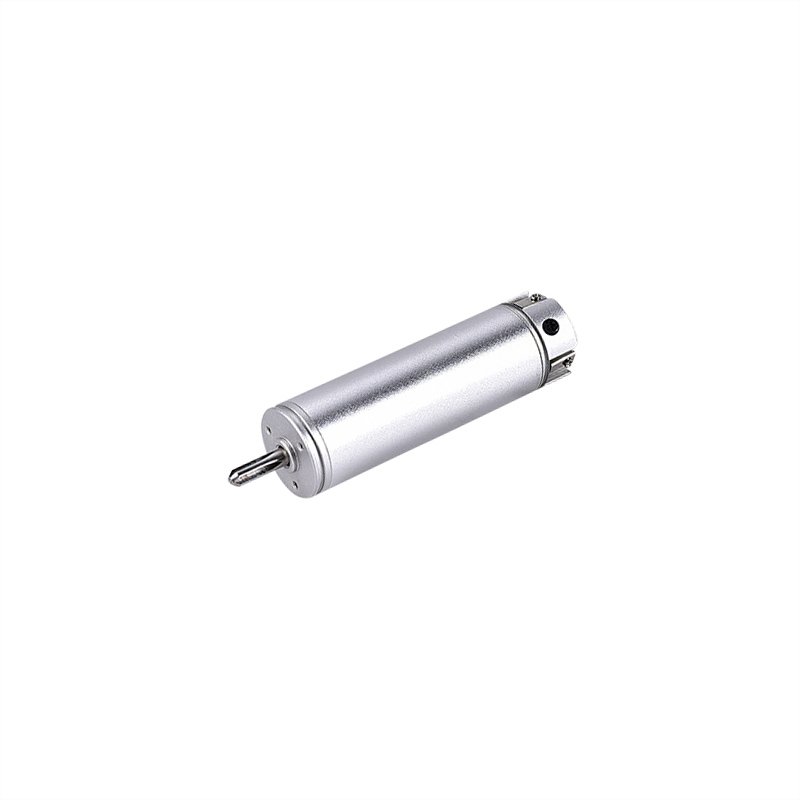

c8fe72a11fc54032b96db2229e84a19a

Brushless dc motors work in a simple way. The stator has many windings, usually in three groups. The rotor sits inside the stator and has permanent magnets. An electronic controller sends signals to the stator coils in a set order. This makes a spinning magnetic field that pulls the rotor and makes it turn.

  • No brushes means less friction and less wearing out, so the motor lasts longer.

  • Electronic commutation takes the place of mechanical switching, so timing is exact and spinning is smooth.

  • Fast bearings and balanced rotors help the motor run quietly and well, even at high speeds.

The table below shows how the main parts work together in bldc motors:

Part

Function

Stator

Holds electromagnetic coils; creates rotating magnetic field

Rotor

Contains permanent magnets; spins inside the stator

Electronic Controller

Sends signals to coils for precise timing and rotation

Hall Sensors

Detect rotor position for accurate control

These features show why bldc motors, especially inrunner types, are best for high speed and control. Their design and how they work help save energy, need little fixing, and work well in new motor technology.

Key Advantages

High RPM and Efficiency

Inrunner brushless dc motors can spin very fast. Some can reach up to 8,000 RPM. This makes them great for jobs that need quick and steady movement. The rotor is small and light. Because of this, the motor can speed up and slow down fast. It also uses less energy when changing speeds.

These motors are small and fit in tight spaces. They give a lot of power for their size. This is why people use them in handheld tools and small machines.

Совет: Inrunner brushless DC motors are best for tight spaces and high performance.

The table below shows how inrunner and outrunner motors compare:

Характеристика

Outrunner Motor

Inrunner Motor

Крутящий момент

Higher torque at lower speeds

Lower torque, higher speed

Скорость

Moderate speed

Higher speed (better for high RPM)

Cooling

Moderate cooling efficiency

Better cooling, easier to cool

Эффективность

Less efficient at high RPM

More efficient at high RPM

Noise

Slightly louder

Quieter

Best Use

High torque, low RPM scenarios

High RPM and precision control

Inrunner brushless DC motors use less energy at high speeds. Their design lets air move inside to keep them cool. This helps them work well for a long time at fast speeds.

Rapid Response and Precision

Engineers like brushless dc motors for their precise control. The rotor is light, so the motor reacts quickly to new commands. This is important for robots and CNC machines that need exact moves.

  • Inrunner bldc motors use electronic commutation. This means they switch power with electronics, not brushes. This makes them run smoother and faster.

  • Advanced controllers use sensors like Hall effect sensors or optical encoders. These sensors tell the controller where the rotor is.

  • With this feedback, the controller can make small changes right away. This gives very accurate speed and position control.

Примечание: High-resolution encoders give more signals per turn. This helps with even finer control, which is needed for robots and automation.

Brushless motors also use control methods like Field-Oriented Control (FOC). FOC helps the motor change speed and direction fast. This is why bldc motors are used where speed and accuracy are both important.

Cooling and Reliability

Brushless dc motors are chosen because they are reliable. The inrunner design puts the rotor inside the stator. This helps the motor stay cool, even when spinning fast.

  • Many brushless motors have fans or heat sinks. These parts help move heat away from the motor.

  • Good cooling lets the motor run longer without overheating.

  • The design also keeps out dust and dirt that could harm other motors.

Brushless dc motors last a long time. They can run for over 20,000 hours if used right. No brushes means less wear and tear. Ball bearings help the motor spin smoothly and need less fixing.

Совет: To make the motor last, keep it cool and use the right oil.

Because of these features, inrunner brushless dc motors are great for tough jobs. Their high speed, strong cooling, and low maintenance make them a smart pick for many industries.

Brushless DC Motors vs. Others

Inrunner vs. Outrunner

Engineers pick between inrunner and outrunner brushless dc motors for fast and precise jobs. Inrunner motors use less energy than outrunners. Their design puts the stator windings near the outside. This helps heat move away fast. Good cooling keeps the motor working well and stops it from getting too hot. Outrunner motors use vents and the shaft to cool down, but this is not as good.

Outrunner motors make more torque at slow speeds. They are good for direct-drive systems and do not need gearboxes. Inrunner motors spin much faster. They often need a gearbox to use their speed for more torque. This makes inrunners better for jobs that need high RPM and efficiency.

  • Outrunners give strong turning force at slow speeds, so they are great for direct-drive.

  • Inrunners are best for fast, efficient work, especially in small spaces.

Совет: Inrunner bldc motors are best for projects that need fast speeds and exact control. Outrunners are better for jobs that need strong force at slow speeds.

The table below shows the main differences:

Характеристика

Inrunner Motor

Outrunner Motor

Скорость

Выше

Нижний

Крутящий момент

Нижний

Выше

Эффективность

Higher at high RPM

Lower at high RPM

Cooling

Better

Умеренный

Best Use

High-speed, precision

High-torque, direct drive

Inrunner vs. Brushed

Inrunner brushless dc motors have clear benefits over brushed motors. Brushed motors use brushes and commutators that wear out fast. This means they need fixing more often and do not last as long. Brushless dc motors, like inrunners, do not have brushes or commutators. This design means less wear and fewer repairs.

The rotor in inrunner bldc motors is inside a shell. This keeps dust and dirt out and helps the motor last longer. Brushed motors need new brushes after about a thousand hours. Brushless dc motors can run up to 20,000 hours with just simple cleaning.

  • Brushed motors need new brushes often.

  • Inrunner brushless dc motors need less fixing and last longer.

Примечание: Picking inrunner bldc motors means less time fixing and lower costs. This is why many industries use them for tough, fast jobs.

Brushless Motor Applications

Brushless Motor Applications
Источник изображения: pexels

Робототехника и автоматизация

Robotics and automation need fast and accurate moves. Inrunner brushless motor designs help robots move quickly and with control. Many robot arms use these motors to pick up and put down parts. The motors let robots do the same job over and over without mistakes. Their small size helps engineers fit them into tight spaces in machines.

  • Robot arms in factories use inrunner brushless motors for smooth moves.

  • Service robots use these motors for quick and careful work.

  • The X-TEAM 58180 inrunner brushless motor powers robots and drones. It can reach speeds up to 25,000 RPM.

Feedback systems, like encoders, work with the brushless motor. They give real-time data about position and speed. This helps the controller change the motor for perfect moves. No brushes means less noise and less fixing, so robots work longer without stopping.

Совет: Inrunner brushless motors help robots work better and more accurately. This is why factories use them for important jobs.

Drones and UAVs

Drones and UAVs need motors that react fast and keep steady in the air. Inrunner brushless motors use electronic commutation for exact speed and torque control. This lets drones hover, turn fast, and fly smoothly even in hard weather. The small design keeps drones light, so they fly longer and move fast.

A brushless motor in a drone can change speed very quickly. This fast response is important for racing drones and taking pictures from the sky. The motor’s small size also lets drones be smaller, so they are easier to carry and use.

Drones with inrunner brushless motors can turn quickly and hover steady. This gives pilots better control in the air.

Industrial and EVs

Factories and electric vehicles (EVs) use inrunner brushless motors for their strength and dependability. In fast manufacturing, these motors run conveyor belts and CNC machines with steady speed and power. Their small build fits into tight spots on production lines. The stator touches the housing, which helps cool the motor, so it can work hard without getting too hot.

Electric vehicles use brushless motors because they are light and cool well. This helps with speed, quick starts, and saving energy. The strong design also means the motor lasts longer and needs less care. Inrunner brushless motors help EVs go farther and work better.

Область применения

Why Inrunner Brushless Motors?

Manufacturing Lines

High speed, precise control, compact design

Electric Vehicles

Efficient, lightweight, reliable, cool running

CNC Machines

Accurate, repeatable motion, fits tight spaces

Inrunner brushless motor uses show why these motors are important for today’s industry. Their speed, control, and small size help solve many engineering problems.

Inrunner brushless DC motors are very important for fast and precise control. Their design helps them work well, last long, and need little fixing. This makes them a good pick for machines and vehicles. These motors work well in small spaces and tough jobs. Engineers like them because they react quickly and control things exactly.

When picking an inrunner brushless DC motor, think about these things:

  • Figure out how much power you need by looking at speed and torque.

  • Make sure the voltage and current match your system.

  • Decide if you need sensored or sensorless control for your job.

  • Look at how long and hard the motor will work to keep it safe.

  • Check if the motor fits in your space and works with gearboxes.

Tip: Always check the motor’s performance curve to see if it gives the speed and control you want.

ЧАСТО ЗАДАВАЕМЫЕ ВОПРОСЫ

Why do engineers choose inrunner brushless DC motors for high-speed tasks?

Engineers like inrunner brushless DC motors for fast jobs. These motors can spin very fast and do not get too hot. Their design helps them stay cool and last longer. This makes them good for work that needs quick and steady movement.

Why are inrunner brushless DC motors more reliable than brushed motors?

Inrunner brushless DC motors do not have brushes inside. Fewer parts wear out, so the motor lasts longer. They need less fixing and work well for tough jobs. Many companies use them for important work.

Why do robots and drones need precise control from inrunner brushless DC motors?

Robots and drones must move quickly and exactly. Inrunner brushless DC motors react fast to new commands. Sensors and controllers help the motors move smoothly and right.

Why does the compact size of inrunner brushless DC motors matter?

These motors are small and fit in tight spaces. Many machines need strong motors that do not take up much room. Inrunner brushless DC motors help solve this problem.

Why do inrunner brushless DC motors save energy in demanding applications?

These motors use electronic control to switch power well. The design helps save energy, especially when spinning fast. This lets machines run longer and use less power.
