Getting accurate control starts with ensuring motor and encoder compatibility. When they work together, you achieve smooth and precise performance. If they don’t match, it can cause jerky movements and wasted energy, leading to expensive delays. Many industries now require better automation, which is driving rapid growth in the motor encoder market. It is expected to expand from $2.5 billion in 2023 to $4.7 billion by 2032, with a yearly growth rate of 7.2%. НУЖНО helps systems avoid problems and enhance motor performance. In factories or robots, ensuring the compatibility of these components is key for steady and reliable results.

Основные выводы

• Pick the right motor and encoder for your project. Brushless motors save energy, while stepper motors are very precise.

• Match the encoder’s resolution to what your system needs. Higher resolution gives better accuracy for detailed tasks.

• Think about the environment when choosing encoders. Get ones that handle shocks and extreme temperatures for tough jobs.

• Take care of encoders to make them last longer. Clean them and check for damage to keep them working well.

• Use INEED’s custom options to improve your system. Adjust motors and encoders to meet your specific needs better.

Key Factors for Motor and Encoder Compatibility

Understanding Motor Types and Encoder Options

Picking the right motor and encoder starts with knowing their types. Motors include brushless, brushed, and stepper motors. Brushless motors last long and save energy. Brushed motors are simple and cheap. Stepper motors are great for exact movements, like in robots.

Encoders also have different designs and uses. Rotary encoders track spinning motion, while linear encoders measure straight-line movement. Each encoder has features like resolution, accuracy, and repeatability. High-resolution encoders (16-24 bits) are very precise. Low-resolution encoders (<12 bits) work for simpler tasks. Repeatability is key for robots doing the same task repeatedly.

Matching Resolution and Feedback Requirements

Matching resolution ensures accurate feedback from motor encoders. The resolution should be four times smaller than the smallest distance to detect. For sensitive tasks, higher resolution avoids errors. Long cables need strong signals to prevent mistakes.

When choosing encoders, balance real and software-made resolution. Software can boost resolution but may cause errors. For robots, repeatability matters most. Knowing the robot’s range and repeatability helps pick the right encoder resolution.

Environmental and Application-Specific Considerations

The environment affects motor and encoder performance. For tough conditions, pick encoders with high shock ratings (>100 g) and wide temperature ranges (-40°C to +85°C). Magnetic encoders handle dust but need protection from metal particles. Bearing-free rotary encoders are durable and resist damage.

For special needs, resolvers work well in hot and rough conditions. Features like GPS syncing improve advanced systems. Always match your motor and encoder to your task for the best results.

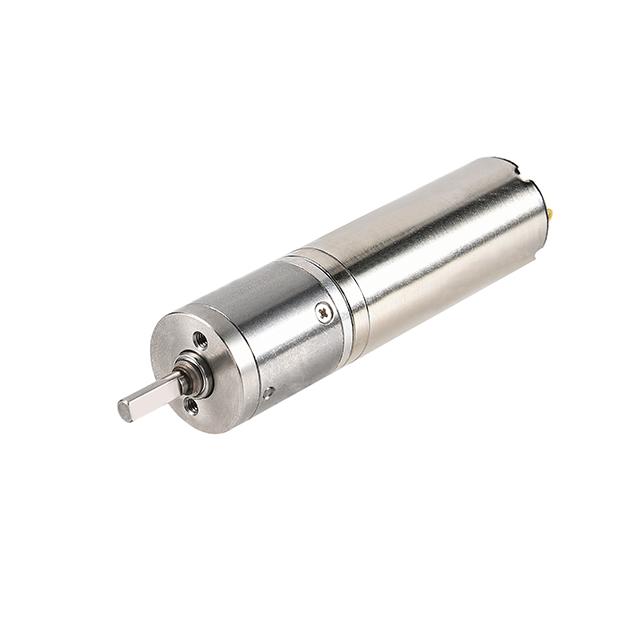

The Role of INEED’s Planetary Gear Motors in Precision Applications

INEED’s planetary gear motors are a trusted option for precise tasks. These motors offer strong power, small size, and great efficiency. This makes them perfect for jobs needing accuracy and steady performance.

Why Pick Planetary Gear Motors?

Planetary gear motors are great for tasks needing strength and precision. Their special design spreads power across gears evenly. This reduces wear and keeps them running smoothly. They work well in robots, medical tools, and factory machines.

Main benefits include:

• Высокий крутящий момент на выходе: They handle tough jobs with ease due to shared load.

• Компактный размер: Their small shape fits tight spaces without losing power.

• Low Noise: Gears touch more, making them quieter during use.

• Customizability: You can change gear ratios, shafts, or add encoders.

Features That Improve Precision

INEED’s planetary gear motors have features that boost accuracy and dependability:

These features make them ideal for tasks like robotic arms needing exact movements.

How INEED Helps You

INEED offers options to fit your specific needs. For example, you can add high-resolution encoders for better control. The motors are tested carefully to meet top standards.

Наконечник: Think about torque, speed, and space when picking a motor. INEED’s team can help you choose the best one for your job.

By using INEED’s planetary gear motors, you get accuracy, strength, and efficiency in your system.

How to Select the Right Encoder for Your Motor

Picking the right encoder helps your motor work accurately. Encoders give feedback to control motor speed and position. To choose the best one, check encoder types, power compatibility, and customization options.

Comparing Encoder Types: Incremental vs. Absolute

Knowing the difference between incremental and absolute encoders is important. Incremental encoders track changes in position. Absolute encoders show exact positions with unique codes. Each type works better for different tasks.

Absolute encoders are better for precise tasks. They start quickly and keep position data after power loss. Incremental encoders are good for fast-moving tasks, like tracking speed and distance.

Наконечник: Use absolute encoders for multi-axis tasks or frequent power outages. Incremental encoders work well for simpler, high-speed jobs.

Matching Power Supply and Communication Protocols

Encoders must match your motor’s power and communication setup. Check the encoder’s voltage range, usually 5V to 24V DC. Wrong voltage can cause errors or damage.

Communication protocols like RS485, CAN, or SPI connect encoders to systems. RS485 resists noise, CAN works for networks, and SPI transfers data quickly in small setups.

Примечание: Always check if the encoder’s protocol matches your motor controller. This avoids problems and keeps data safe.

High-resolution encoders, like the HEIDENHAIN ECA 4000, are great for tough tasks. They measure angles precisely and handle fast speeds, making them ideal for robots and automation.

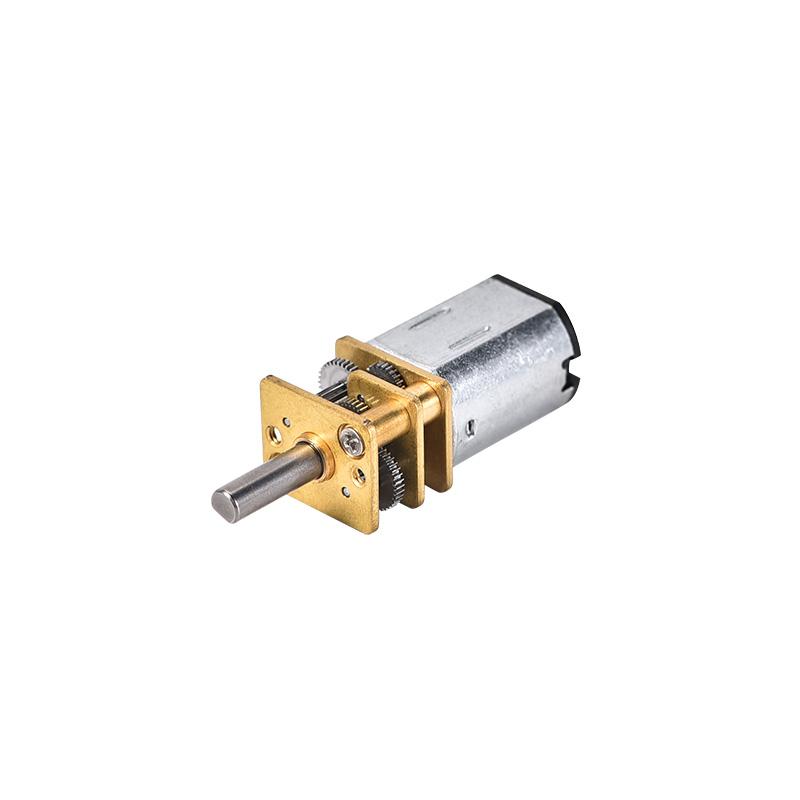

Customizing INEED’s Spur Gear Motors

инеид цилиндрические мотор-редукторы can be customized to fit your encoder needs. Add high-resolution encoders for accurate torque control. Change shaft lengths, gear types, or connectors to suit your system.

Why Pick INEED’s Spur Gear Motors?

• Компактный дизайн: Fits small spaces without losing power.

• High Efficiency: Uses energy well for reliable performance.

• Customizable Features: Adjust parts for your specific needs.

For example, INEED’s motors in smart locks use a 1000:1 gearbox and high-resolution encoders. This setup ensures precise movement and works well in tough conditions.

Наконечник: Focus on encoder resolution, torque, and environment when customizing. INEED’s team can help you make the best choices.

Choosing the right encoder and using INEED’s options improves motor control and system efficiency.

Tips for Picking Encoders for Precise Control

Choosing the right encoder is important for accurate control. Encoders give feedback on position, speed, and direction. This helps motors adjust quickly and precisely. It improves accuracy in tasks like robotics or CNC machines. Below are simple tips to help you decide:

1. Match the Encoder Type to Your Task

Different encoder types work for different jobs. Optical encoders are very precise, great for robotic arms or medical tools. Magnetic encoders handle dust and moisture, perfect for tough environments. Capacitive encoders are strong and reliable for factories.

Наконечник: For fast-moving systems, optical encoders are best because they handle speed well.

2. Think About the Environment

Where you use the encoder affects its performance. Optical encoders need clean spaces since dust can cause problems. Magnetic encoders work better in dusty or wet places.

3. Focus on Resolution and Precision

Resolution shows how many positions an encoder can detect. For precise control, pick an encoder with high resolution. Optical encoders often have the best resolution for detailed tasks.

Примечание: For angular tasks, choose an encoder with pulses higher than 360° divided by your needed accuracy.

4. Check Cost and Maintenance

Optical encoders cost more and need regular care. Magnetic and capacitive encoders are cheaper and last longer, making them better for tough jobs.

5. Make Sure It Fits Your System

Ваш encoder must work with your control system. Check the communication type, like RS485, CAN, or SPI. RS485 handles noisy areas well. SPI is fast for small setups.

6. Look at Installation and Alignment

Easy installation saves time and avoids mistakes. Optical encoders need careful alignment. Magnetic encoders are simpler to install. For frequent changes, pick encoders that are easy to set up.

7. Choose for Speed and Acceleration

For systems running over 500 RPM, pick encoders with fewer states and high speed ratings. Optical encoders are great for fast systems, giving smooth feedback.

8. Use INEED’s Custom Options

INEED’s motors, like spur gear motors, let you add custom encoders. You can change shaft lengths, gear types, or connectors to fit your needs. For example, INEED’s smart locks use a 1000:1 gearbox and high-resolution encoders for precise movement in tough conditions.

Наконечник: When customizing, think about resolution, torque, and environment for the best results.

By following these tips, you can pick an encoder that boosts your system’s accuracy and reliability.

Steps to Ensure Motor and Encoder Compatibility

Proper Installation and Alignment Techniques

Installing and aligning correctly is key for motor and encoder compatibility. Misalignment can cause wrong feedback, shaking, and poor performance. Follow these steps to avoid problems:

• Calibrate Hall Effect Sensors: Make sure sensors are set up right. This keeps position and speed readings accurate. Test multiple motors to check tolerances.

• Fix Magnetic Encoder Misalignment: Misaligned magnetic encoders can give wrong angle readings, especially at high speeds. Check alignment carefully to stop shaking and ensure smooth work.

• Save Calibration Data: Always save data before making changes. This helps you fix issues and go back to old settings if needed.

• Use a Step-by-Step Setup: Pick encoders that match your motor. Run calibration in order to get accurate feedback and smooth system performance.

Наконечник: Use tools to check encoder alignment during setup. This reduces mistakes and improves system accuracy.

System Testing and Calibration for Optimal Performance

Testing and calibration are important for the best motor and encoder performance. These steps find problems and adjust the system for better control. Here are some testing methods and their uses:

Testing keeps encoder feedback correct and dependable. Calibration adjusts for wear and changes in the environment, keeping the system steady over time.

Примечание: Debug closed-loop systems often to improve settings. This boosts feedback accuracy and system efficiency.

Regular Maintenance to Extend Encoder Lifespan

Taking care of encoders regularly helps them last longer. Conditions and use can wear them out. Follow these tips to keep them working well:

• Protect from Harsh Conditions: Keep encoders away from heat, moisture, and vibrations. These can damage them quickly.

• Track Bearing Hours: Watch how long bearings are used. Plan maintenance early to avoid breakdowns and extend life.

• Clean Often: Look for dust or dirt on encoders. Clean them to keep feedback accurate and prevent damage.

• Lubricate Moving Parts: Use good lubricants to lower friction and keep things running smoothly.

Наконечник: Make a maintenance plan based on the encoder type and its environment. This helps fix problems before they affect performance.

By following these steps, your motor and encoder will work well together, giving accurate feedback and great system performance.

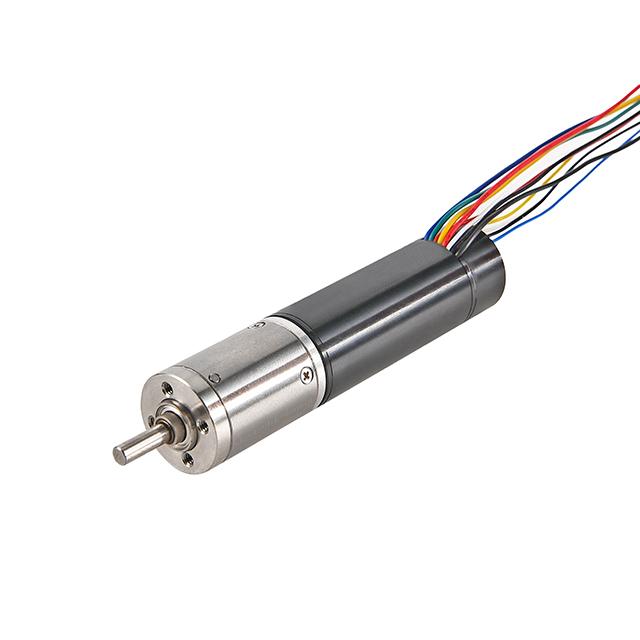

Using INEED’s Brushless Gear Motors for Reliable Feedback

инеид бесщеточные мотор-редукторы are a great choice for systems needing accurate and steady performance. These motors are built for high efficiency, long life, and precise control. They work well in tasks where dependable feedback is very important.

Why Pick Brushless Gear Motors?

Brushless gear motors have many benefits over brushed motors. They don’t use brushes, which means less wear and a longer lifespan. This design also lowers maintenance needs, saving time and money. Plus, they run quietly, making them perfect for places where noise should be low.

Main advantages include:

• High Efficiency: They turn energy into motion with little waste.

• Долговечность: No brushes mean less friction and overheating.

• Точный контроль: They move smoothly and accurately for exact tasks.

• Customizability: INEED lets you adjust torque, speed, and encoder options to fit your needs.

How Brushless Gear Motors Improve Feedback Systems

Good feedback keeps motor-encoder systems accurate and stable. INEED’s brushless gear motors give steady torque and speed control. Their precise work ensures the encoder sends correct data, helping the system adjust in real-time.

For example, in robots, these motors help arms move smoothly and precisely. In factories, they keep conveyor belts running at the right speed, cutting down on mistakes and boosting productivity.

Tips for Using INEED’s Brushless Gear Motors

To get the best results from INEED’s brushless gear motors, follow these tips:

1. Choose the Right Motor: Think about torque, speed, and the environment when picking a motor.

2. Use High-Resolution Encoders: Pair the motor with an encoder that matches your system’s needs for better accuracy.

3. Install Correctly: Align the motor and encoder properly to avoid performance issues.

4. Check Regularly: Even though they need less care, occasional checks can catch problems early.

Совет профессионала: Reach out to INEED’s support team for help customizing brushless gear motors. Their advice can help you make your system more efficient and reliable.

By using INEED’s brushless gear motors, you can achieve smooth control and reliable performance. These motors improve feedback accuracy and make your system more efficient and long-lasting.

Troubleshooting Common Motor-Encoder Challenges

Finding Misalignment and Signal Problems

Misalignment and signal issues can mess up motor-encoder systems. This leads to wrong readings and bad performance. To find these problems, check specific signal details. Use tools like oscilloscopes to see signal quality and spot errors.

Наконечник: Look for jitter or long pulses during setup. These often mean mounting or cable problems.

Fixing these issues keeps encoder feedback accurate and dependable.

Fixing Old System Compatibility Problems

Old systems may have outdated communication or voltage mismatches. To fix this, first check motor and encoder specs. Make sure the encoder’s voltage matches the motor controller. For older setups, upgrade to encoders with flexible protocols like RS485 or CAN.

If replacing parts isn’t possible, use signal converters. These devices help connect systems that don’t naturally work together.

Примечание: Always test the system after making changes. This ensures the encoder feedback stays correct.

Solving Encoder Feedback Problems

Feedback errors can come from dirt, damage, or bad setup. Check the encoder for dust, water, or physical issues. Clean it and make sure it lines up with the motor shaft.

Regular calibration keeps things accurate. Use closed-loop debugging to adjust settings and remove delays. If problems continue, check the encoder’s signal for weak or slow pulses.

Наконечник: Plan regular maintenance to avoid feedback problems caused by wear or the environment.

By following these steps, you can solve common motor-encoder problems and keep your system working well.

How INEED’s Technical Support Can Help

Having good help makes fixing motor-encoder problems easier. INEED’s support team gives expert advice to keep systems working well. They can help with encoder issues or motor setups for special tasks.

1. Expert Guidance from Start to Finish

INEED’s engineers help you through every step of your project. They assist with picking motors and encoders and setting them up correctly. If you’re unsure about what fits your system, they make sure you choose wisely.

2. Troubleshooting Made Simple

System problems can slow things down. INEED’s team finds and fixes issues fast. They use tools to spot problems like bad alignment or signal errors. This helps your system work smoothly again.

3. Customized Solutions for Unique Needs

Every job is different. INEED creates solutions that fit your needs. They can add high-resolution encoders or change motor gears to match your setup. Their advice helps connect encoders to older systems too.

4. Ongoing Support and Maintenance Tips

INEED helps even after setup is done. They share tips to keep motors and encoders working longer. They also update you on new technology to stay ahead in your field.

Совет профессионала: Contact INEED’s team early in your project. Their advice can save time and avoid mistakes.

INEED’s support team works hard to help you succeed. Their knowledge ensures your motor-encoder system stays reliable and accurate.

Future Trends in Motor-Encoder Systems

New Improvements in Encoder Technology for Precision Tasks

Encoders are getting better to meet the need for precise sensing. Modern encoders now focus on being more accurate and reliable. High resolution encoders, which can detect tiny movements, are crucial for robots and automation. These advanced encoders improve how systems work by being more precise and dependable. For example, optical encoders now use better signal processing to avoid errors in fast-moving tasks. Magnetic encoders are also being upgraded to handle tough conditions while staying reliable.

In the future, encoders will be smaller but still have higher resolutions. This means they can fit into tight spaces without losing performance. New features like self-calibrating encoders will make setup easier and reduce the need for maintenance.

Combining Smart Motors with Encoders

Smart motors are changing how systems work. These motors include sensors, communication tools, and smart controls for better performance. They are perfect for automated systems where accuracy and reliability matter most. For example, robotic smart motors work well with encoders to give exact feedback. This teamwork improves how smoothly and accurately systems run.

The demand for smart motors is growing fast because of more automation. Many systems now use these motors to achieve better accuracy and reliability. For instance, in automated warehouses, smart motors and high resolution encoders keep conveyor belts running smoothly. This reduces mistakes and increases efficiency.

How AI Helps Predict Maintenance Needs

AI is changing how we take care of systems by spotting problems early. In motor-encoder setups, AI looks at data to find possible issues. This makes systems more efficient and saves money. For example, AI in vehicle maintenance shows how digital tools can make systems more reliable.

AI also tracks how well encoders stay accurate over time. It can find wear or misalignment early by studying data. This helps schedule repairs before big problems happen, avoiding delays. As AI improves, systems will become smarter, adjust to changes, and keep working at their best.

Наконечник: Use AI-based tools to make your motor-encoder systems last longer and work better.

New Advances in Motor-Encoder Communication Protocols

Communication protocols are key to how motors and encoders work together. Recent updates in these protocols make systems faster, stronger, and simpler to use. Using advanced methods now helps reduce mistakes and improves data sharing.

1. Quicker Data Sharing

Modern protocols like EtherCAT and PROFINET send data very fast. These allow motors and encoders to talk in real-time. This is important for robots, where every second matters. Faster communication reduces delays and keeps systems running smoothly.

2. Better Noise Handling

In loud places, old protocols often fail to keep signals clear. New ones, like RS485 and CAN, resist interference better. They use special signaling to keep data correct, even in tough conditions. This ensures systems work well in factories or outdoors.

3. Easier Setup

New protocols now support easy plug-and-play features. This makes setting up motor-encoder systems quicker and simpler. For example, IO-Link can recognize devices automatically. This saves time and ensures all parts work together.

4. Smarter Problem Detection

Modern protocols also give detailed system health reports. You can check for problems early and fix them fast. This keeps your system working well and avoids sudden breakdowns.

Наконечник: Pick a protocol based on your system’s speed, environment, and need for diagnostics. Advanced protocols can greatly improve your motor-encoder system’s performance.

By using these new protocols, you can make your motor-encoder systems more reliable and efficient. These changes help you achieve better control and meet modern automation needs.

Making sure motors and encoders work well together is very important. Choosing, installing, and taking care of them properly helps them last longer and work better. Follow these simple steps to improve your system:

1. Pick the right encoder for your job.

2. Install and line up parts correctly to avoid problems.

3. Check and clean encoders often, especially in tough environments.

4. Match the encoder’s resolution to your system for accurate results.

INEED has many motors and encoders to fit your needs. Their custom options and expert help make sure your system runs smoothly and reliably. Check out their products to boost your system’s performance.

ЧАСТО ЗАДАВАЕМЫЕ ВОПРОСЫ

How do you align a motor and encoder?

Use a tool to align the encoder with the motor shaft. Check for any wobbling or misalignment during setup. Save calibration settings to keep feedback accurate.

How often should encoders be maintained?

Check encoders every three months for dust or dirt. Clean them, lubricate moving parts, and look for wear. Regular care keeps them working well and lasting longer.

Can one encoder work with different motors?

Yes, but make sure the encoder matches the motor’s voltage. Also, check if the communication protocol works with the motor controller.

What if encoder feedback is wrong?

Clean the encoder and check for damage. Recalibrate the system to fix errors. If problems continue, check cables and signals for interference.

How do INEED’s motors help systems?

INEED’s motors are efficient, strong, and accurate. You can customize them with encoders to improve performance and reliability for many tasks.
