You can change how fast small dc gear motors spin in a few ways. The best ways are:

• Change the input voltage to make the motor go faster or slower.

• Use Pulse Width Modulation (PWM) for better speed control. PWM is popular because it works well at slow speeds.

• Use feedback and closed-loop systems for more exact speed changes. This method is becoming more common as more people want it.

• Pick the right mechanical gear ratio for what you need.

INEED Motors has small gear motors you can customize. You can make them work best for speed, efficiency, and torque in your project.

Основные выводы

• Changing the input voltage is an easy way to control speed. More voltage makes the motor go faster. Less voltage makes it go slower.

• Pulse Width Modulation (PWM) gives very good speed control. It also saves energy. PWM helps the motor run smoothly, even at slow speeds.

• Feedback and closed-loop control systems make speed and position more accurate. They use sensor data to change how the motor works right away.

• Picking the best mechanical gear ratio is very important. It changes both speed and torque. This matters when you need power or careful movement.

• Using more than one control method, like PWM with feedback, can make the motor work better. This mix gives both good efficiency and better control.

Speed Control Techniques

INEED Motors has many маленькие мотор-редукторы. These include N20, planetary, worm, and brushless DC gear motors. There are different ways to control how fast these motors go. Each way has its own good points. Some work better for certain jobs. Let’s look at how these ways help you get the best from your motor.

Input Voltage Adjustment

You can change how fast your DC gear motors spin by changing the input voltage. If you make the voltage higher, the motor spins faster. If you make the voltage lower, the motor slows down. This way is simple and easy to use.

• Changing the input voltage changes both speed and torque.

• You can use this in things like conveyor belts or robots. These need speed changes often.

• Using the right voltage gives you the best results. Lower voltage means less power. Higher voltage can make the motor too hot.

• The torque-speed curve changes with voltage. This lets you adjust the motor for what you need.

Совет: Always check the voltage range for your INEED Motors gear motor. This keeps it safe and working well.

Pros:

• Simple circuit

• Easy to use

• Good for basic speed control

Cons:

• Can’t adjust as much

• Not as efficient at other voltages

Широтно-импульсная модуляция (ШИМ)

Pulse width modulation is a common way to control DC gear motor speed. You use a digital signal to turn the motor on and off very fast. By changing how long the signal stays on, you change the average voltage and the speed.

• PWM lets you control speed very well.

• The duty cycle changes the speed by changing the voltage.

• PWM helps save energy and makes the motor work better.

• You can use a microcontroller to set the duty cycle. This makes the system flexible.

• Most small DC gear motors use PWM between 5 kHz and 20 kHz. Lower numbers can make noise. Higher numbers can make the circuit hot.

Примечание: INEED Motors’ brushless DC gear motors work great with PWM. They run smooth and quiet.

Pros:

• High efficiency

• Good control

• Works well at slow speeds

Cons:

• Circuit is more complex

• May need programming

Feedback and Closed-Loop Control

Feedback and closed-loop control help you control speed and position very well. You use sensors like encoders to check how the motor is moving. The controller looks at the real speed and the speed you want. It changes things right away to match them.

• Closed-loop speed control keeps the motor at the speed you set. This works even if the load changes.

• Closed-loop torque control is good for things like electric cars. You can set the torque you want.

• Current limit control keeps the motor safe from too much load.

• The gearbox in INEED Motors’ DC gear motors makes them more exact and steady. This is good for jobs that need the motor to move just right.

Совет: Use feedback systems for jobs that need high accuracy, like robots or medical tools.

Pros:

• Very accurate control

• Good stability

• Works well when loads change

Cons:

• Circuits are more complex

• Costs more

Mechanical Gear Ratio

Mechanical gear ratios help control speed and torque. Picking the right gear ratio matches the motor to your job.

• A higher gear ratio makes the output slower but stronger.

• For example, a 10:1 gear ratio means the motor turns 10 times for every one turn of the output shaft. This gives you more strength at lower speeds.

• This way is good for robots or conveyors. These need strong force and careful movement.

Pros:

• No need for complex electronics

• Good for strong, slow jobs

Cons:

• Bigger size

• Hard to change once set up

Hybrid Control Methods

You can mix electronic and mechanical ways to get the best results. For example, you can use PWM with feedback to make things more exact and steady. This lets you control both speed and torque for tough jobs.

• Mixing PWM and feedback gives you better control.

• You get high efficiency and exact speed control.

• INEED Motors’ gear motors can be set up for hybrid ways. You can make a system that fits your needs.

Pros:

• Gets the good points of many ways

• More exact and steady

Cons:

• Design and setup are harder

Примечание: INEED Motors can help you pick and use the best speed control ways for your project.

You can pick from INEED Motors’ N20, planetary, worm, or brushless DC gear motors. You can also change them for your job. By learning and using these ways, you can control the speed, torque, and how well your motor works.

DC Motor Control Steps

Step-by-Step Implementation

You can control the speed of INEED Motors’ small dc gear motors by following these steps. This way uses PWM and feedback to help your motor work well and save energy.

1. Put the KA7500CD IC on your breadboard or perfboard.

2. Use a 10kΩ resistor and a 0.1μF capacitor to set the PWM frequency.

3. Add a potentiometer to change the duty cycle for speed.

4. Connect a MOSFET to turn the motor on and off.

5. Attach resistors and capacitors to the right pins on the IC.

6. Use jumper wires to connect all the parts together.

7. Make sure you have good grounding and power connections.

8. Connect the motor’s positive and negative ends to the MOSFET and power supply.

9. Match the power supply voltage to your motor’s rated voltage for best results.

10. Add diodes to keep your circuit safe from back-emf.

11. Check all connections to make sure they are correct.

12. Test the motor and turn the potentiometer to change the speed.

13. Use sensors for feedback if you want more accuracy or stability.

Tip: You can ask INEED Motors’ engineers for help if you need advice about picking the right motor, controller, or feedback methods for your project.

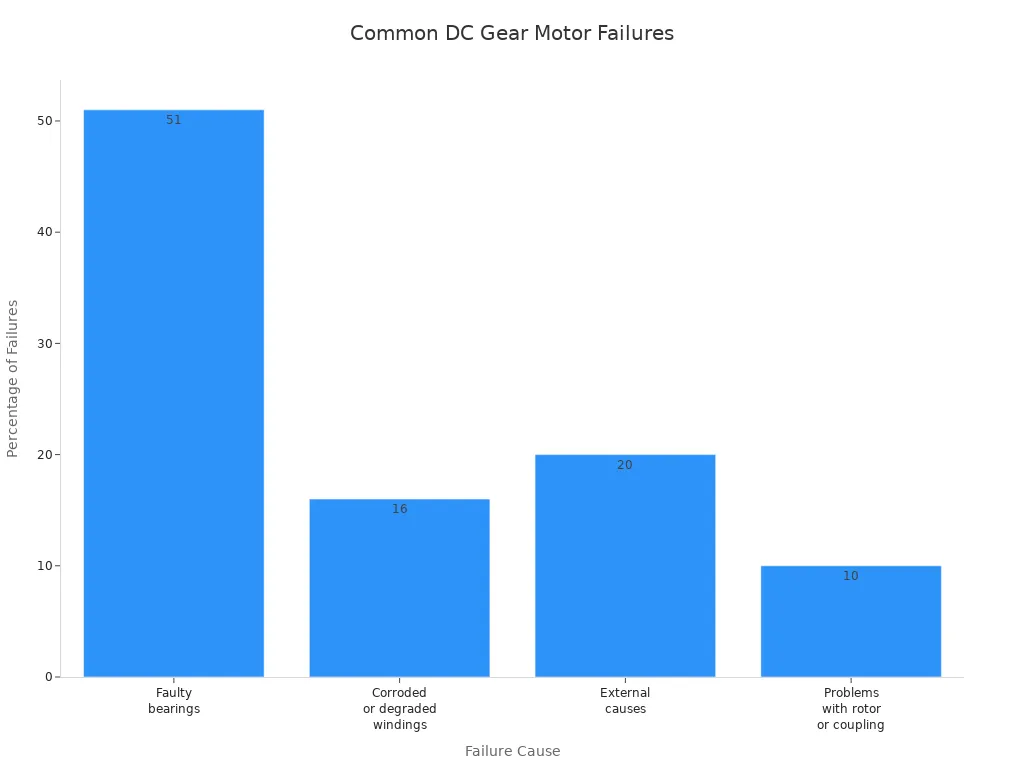

Troubleshooting and Pitfalls

You might have some problems when you try to control the speed of dc gear motors. Checking your setup often and doing things the right way helps you avoid most issues.

• Electrical problems like short circuits can happen if brushes break or wires get too hot.

• Worn gear parts can make the motor weaker and not work as well.

• Bad installation can cause motors to break. Two 500 V dc motors failed because they were set up wrong.

• Looking at your motor often helps you find broken wires or loose parts early.

Note: INEED Motors can help you with picking the right motor, matching voltage and current, adding feedback sensors, and planning your wiring for better efficiency and stability.

Motor Speed Comparison

Эффективность и производительность

When you look at ways to control motor speed, you should think about how well each way saves energy and works. Some ways help you use less power. Other ways let you control the motor more exactly. The table below shows how each way affects your motor:

You can also look at these things to compare motors:

PWM helps your motor use less energy and stay cool. Voltage regulation is good when the load does not change much. If you need strong force at slow speed, pick a gear motor with the right gearbox.

Cost and Complexity

You should think about price and how hard it is to set up each way. Some ways use simple parts. Others need more advanced electronics. Here is a table about gear materials:

Small dc motors are cheap and work for many jobs. Basic motors are good for simple tasks. Motors that work better cost more but last longer and need less fixing. Brushless dc gear motors cost more at first because they use better control and gears, but you save money later because they need less fixing.

Application Recommendations

You should pick the speed control way that fits your job. Here is a table to help you choose:

If you pick the right motor and gearbox from INEED Motors, you get the best speed and force for your job. You can:

• Make the motor stronger and slower for tough jobs.

• Match the motor’s movement to what you need.

• Use gearboxes for slow and strong jobs.

• Pick gearboxes that handle loads well and move smoothly.

Tip: Always check what your job needs before picking a motor and gearbox. INEED Motors has many choices to help you get good results and strong motors.

Making speed control better in small DC gear motors helps them work well. It also makes them use less energy and last longer. You can change the voltage or use feedback to fit what you need. Some advanced ways can help too. Picking the right motor and control method gives you strong torque and exact speed. Always match the motor type, power, and where you use it for best results. If you need help, you can ask INEED Motors for custom solutions and expert advice.

ЧАСТО ЗАДАВАЕМЫЕ ВОПРОСЫ

How do you choose the right speed control method for your DC gear motor?

You should look at your project’s needs. If you want simple control, use voltage adjustment. For precise speed, try PWM or feedback systems. INEED Motors offers motors that work with all these methods.

What is the easiest way to adjust the speed of a small DC gear motor?

You can change the input voltage. Use a variable power supply to make the motor spin faster or slower. This method works well for basic projects and quick tests.

Can you use PWM with all INEED Motors small gear motors?

Yes, you can use PWM with most INEED Motors small gear motors. Brushless DC gear motors work especially well with PWM. You get smooth speed control and better energy efficiency.

Why should you use feedback systems for speed control?

Feedback systems help you keep the motor running at the speed you set. Sensors check the speed and send information to the controller. You get accurate movement, which is important for robots and medical devices.

What should you do if your motor does not respond to speed changes?

First, check all connections and power supply settings. Make sure you use the correct control method for your motor type. If you need help, contact INEED Motors’ engineering team for support.
