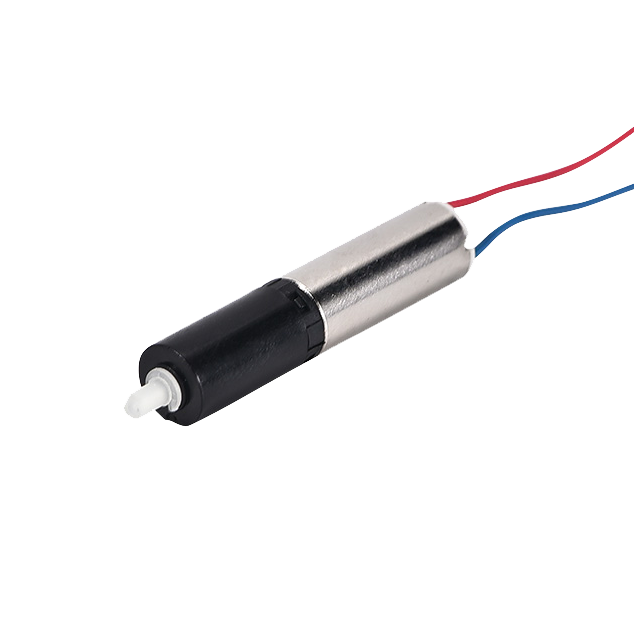

A nano planetary gear motor has a small planetary gearbox and a DC motor. It gives very exact movement and strong turning force in a small size. This gearmotor works well where accuracy and strength are very important. Many industries use these motors for important jobs:

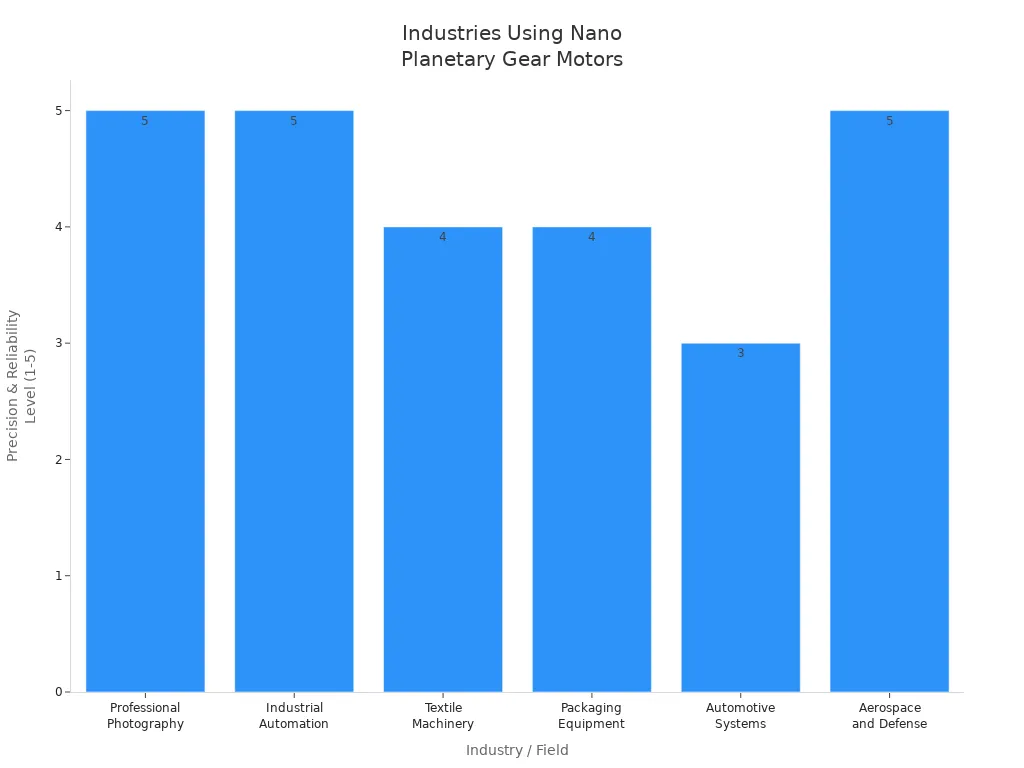

• Industrial automation uses them in robots and on assembly lines.

• Medical and healthcare equipment need them for surgery tools and imaging machines.

• Professional photography, textile machines, and car systems also use them for their exactness and power.

The nano planetary gear motor is small but strong. It can handle tough jobs in new technology.

Principales conclusiones

• Nano planetary gear motors are tiny but give strong, exact movement in small spaces.

• Their special gear system shares force across many gears, so they have high torque and run smoothly.

• These motors work well with little energy loss and can control movement very well.

• People use them in robots, medical tools, small printers, and smart locks because they work well.

• Strong materials and careful design help these motors last a long time and do hard jobs.

Nano Planetary Gear Motor Overview

What is a Nano Planetary Gear Motor

A nano planetary gear motor is very small. It has a tiny DC motor and a planetary gearbox. This gear system has a sun gear in the middle. There are planet gears around it. A ring gear goes on the outside. The planetary design gives high torque in a small size. Some models are only 6mm Dia. They fit inside drones or small gadgets. The planetary system spreads the load over many planet gears. This helps give more torque and less mechanical play. Nano planetary gear motors work well for jobs needing slow, strong, and exact movement in tight spaces.

The planetary gear motor is different from other small gear motors. It keeps the good parts of the planetary gear design. It is very small but can handle more force.

Key Features

Nano planetary gear motors have many important features:

• They use strong materials like titanium alloys and ceramic composites. Nano-coatings help them last longer and lower friction.

• They are made with very careful standards. This makes the gears move smoothly and lowers mistakes.

• The planetary gear system shares the load with many gears. This gives high torque and keeps the motor light and small.

• Good lubrication and heat control keep the motor cool. This helps it last longer, even if used a lot.

• Some designs use zero slip transmission. The gear teeth always touch, so there is no slack. This makes the motor more exact than regular gear systems.

• The planetary setup also makes less noise and vibration. This is good for sensitive machines.

• 3D printing and additive manufacturing help make custom gear shapes. They also make better paths for oil, which helps the motor work better.

The zero slip transmission in the planetary gear motor is a big advantage. The gears always stay together, so there is no slipping or play. This means the motor works better, is quieter, and repeats movements well. The small planetary design also gives a high gear ratio. This makes it great for jobs that need strong and exact movement in a tiny space.

Components of a Planetary Gear Motor

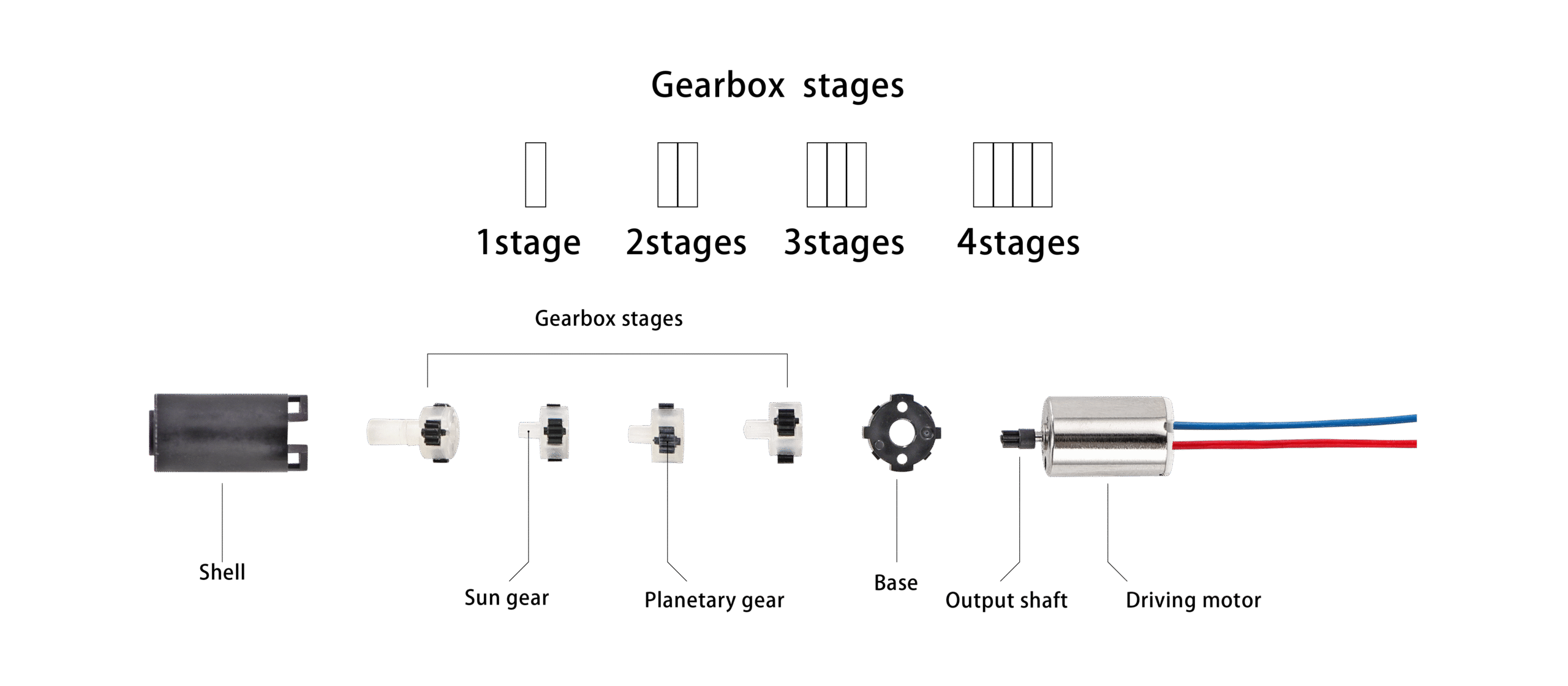

A motorreductor planetario has many important parts. Each part has a special job. These parts help the motor move things with power and accuracy. The whole system works well because of these parts.

Sun Gear and Planet Gears

The sun gear is in the middle of the system. It connects to the motor’s input shaft. When the motor turns, the sun gear spins. This makes the planet gears move around it. The planet gears also spin by themselves. This setup spreads the force over many gears. It helps the motor make more torque and last longer.

Sun and planet gears are made from strong materials. They can be stainless steel, cast iron, or carbon fiber composites. These materials make the gears light and tough. This is important for nano planetary gear motors.

The planet gears link the sun gear to the ring gear. They help move power and torque smoothly. This design lets the motor handle heavy loads without getting big.

Ring Gear and Output Shaft

The ring gear is the outer circle of the system. It has teeth inside that touch the planet gears. The ring gear can stay still or turn, depending on the design. Its main job is to guide the planet gears. It also helps share the torque evenly.

The output shaft is also called the planet carrier. It holds the planet gears in place. As the planet gears move, the carrier turns. This gives the final output. The output shaft makes the motor slow but strong. A strong output shaft, like a one-piece carrier or cross-shaped shaft, helps the motor last longer and work better.

DC Motor Integration

A DC motor connects to the sun gear. It powers the whole planetary system. This setup gives more torque. It lets engineers change speed and power for different jobs. The DC motor and planetary gearbox together make the motor small and reliable. This is good for jobs that need exact control.

All these parts work together as a team. They make the planetary gear motor strong and efficient. The design gives high torque in a small space. This makes it great for new technology and tools that need precision.

Function of a Planetary Gear Motor

Torque Multiplication

A planetary gear motor’s main job is to make more torque and slow down speed. The system has a sun gear in the middle. Planet gears go around it, and a ring gear covers them. When the motor spins the sun gear, the planet gears turn and move around it. This setup changes how fast and how strong the output is.

The motor makes more torque by using a gear ratio. If the gear ratio is 1:5, the output shaft turns five times slower than the input. But the torque gets five times stronger. This lets the motor give lots of torque at low speeds. You find torque output by multiplying the motor’s torque by the gear ratio. When the gear ratio goes up, speed goes down, but torque goes up. This is important for machines that need more power than speed.

The planetary setup also spreads the force over many gears. This helps the motor lift heavy things without getting bigger. You can add more gear stages to get even more torque and slower speed. This makes the planetary gear motor good for jobs that need strong, steady force in small spaces.

The way the planetary gear system boosts torque and lowers speed is a big reason engineers pick it for tough jobs.

Alta eficacia

Another big job of a planetary gear motor is to work efficiently. The design uses many contact points between the sun, planet, and ring gears. This spreads out the force and cuts down on wasted energy. The gears fit together well, so there is less friction and heat. This means the motor can run longer and use less power.

Planetary gear motors use tough materials and are made very carefully. This helps the gears move with less drag. Good oil and careful building also help the motor work better. The small design means less energy is lost moving extra parts. That’s why these motors are great for saving energy and working a long time.

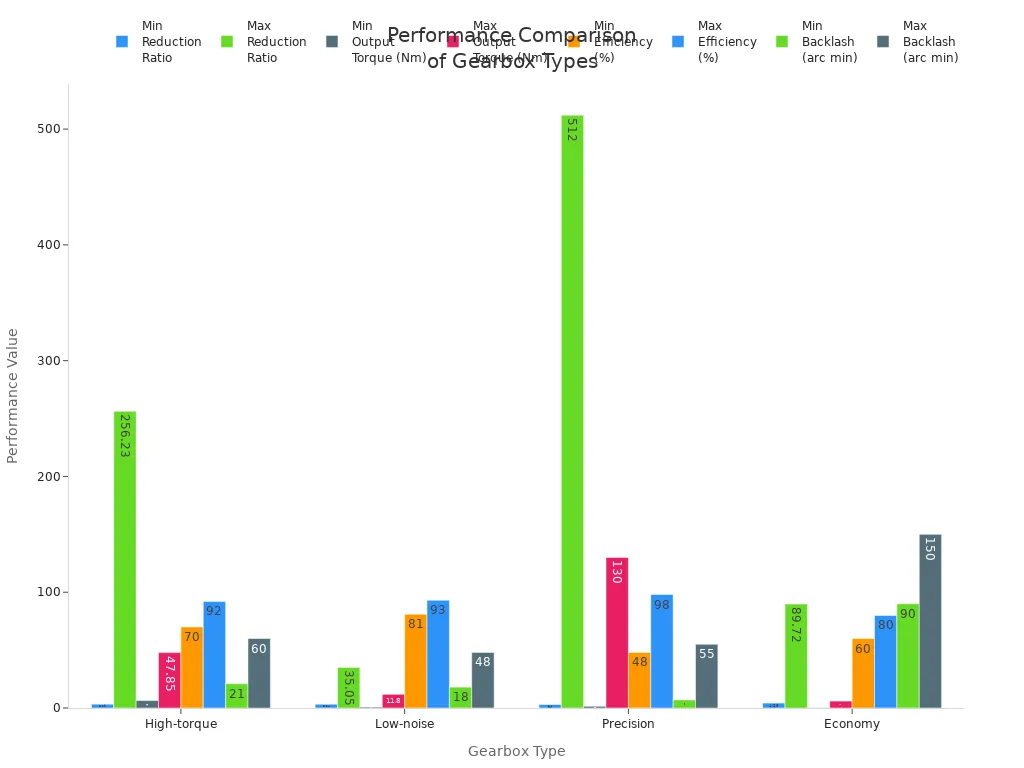

Here is a table that shows how planetary gear motors compare to other types:

Planetary gear motors are efficient and strong, even though they are small.

Motion Control

Planetary gear motors are good at controlling movement very exactly. They can have very low backlash, sometimes only 0.5 to 1 arc-minute. Low backlash means the gears move with almost no delay or looseness. This is important for robots, machines, and other things that need to be very accurate.

Makers use careful cutting and building to keep the gears lined up. This helps the motor repeat moves with high accuracy. In robots, for example, these motors let arms and joints move smoothly and stop right where they should.

To keep control, engineers use feedback systems. These have sensors and controllers that watch the motor’s position, speed, and torque all the time. Some common feedback and control tools are:

• Optical encoders and resolvers that check position and speed.

• Controllers with PID algorithms that change the motor’s output using sensor data.

• Servo systems that use high-resolution feedback for exact moves.

• Smart servos that have the motor, controller, and encoder together.

• Sensors like Hall sensors, incremental encoders, and SSI encoders for real-time feedback.

These feedback tools help the planetary gear motor stay accurate and repeat moves well. They let the motor fix changes in load or mistakes, so it works well for things like making computer chips or medical tools.

With good feedback and control, planetary gear motors can move exactly and repeat moves, even in hard jobs.

Aplicaciones

Miniature Printers

Nano planetary gear motors are important in small printers. These printers need tiny motors that are strong and accurate. The motors help move the print head and paper. They fit in small spaces and give steady power. This helps the printer make clear pictures and words. Using these motors makes the printer run quietly and smoothly. Engineers pick these motors because they last long and work well in small machines.

Robotics and Medical Devices

Nano planetary gear motors are needed in robots and medical tools. Their small size and strong power make them good for robot arms and joints. In medical robots, these motors move surgery tools with great care. They help with careful jobs like brain and dental surgery. Some main uses are:

• Helping robot arms and surgery tools move with strong, exact power.

• Giving smooth, no-slip control for careful medical work.

• Helping tiny robots do advanced medical jobs.

• Making sure the motors work well and last in tough places.

Small servo motors with planetary gearheads are very exact and dependable. Their tiny size lets them fit in surgery tools and test machines. Using these motors in medical tools helps doctors do less invasive surgeries with better control.

Electric Locks and More

Nano planetary gear motors also work in electric locks and security systems. Their small size and strong power make them great for smart locks. The table below shows common features for these motors in electric locks:

These motors fit in small spaces easily. They help locks open and close reliably. They use little energy, so they are good for battery locks. Engineers also use them in other small things, like wearable gadgets and space tools, where being exact and tough is important.

Nano planetary gear motors have a sun gear, planet gears, and a ring gear. These parts work together to make strong and exact movement. The design is small but powerful. These motors give a lot of torque and use energy well. They can fit into very tiny spaces. Engineers use them in robots, medical devices, and space tools.

Nano planetary gear motors help make machines smaller and smarter for the future.
Some main benefits are:

• Lots of power in a small size

• Motion that is steady and can be repeated

• Good for new, tiny systems

PREGUNTAS FRECUENTES

What makes a nano planetary gear motor different from other small motors?

Nano planetary gear motors have a unique gear system. This system gives more turning power and better control. The design spreads the force over many gears. This helps the motor last longer and run smoother than other small motors.

Can nano planetary gear motors handle heavy loads?

Yes, they can move heavy things for their size. The planetary gear setup lets them lift or push strong loads. Engineers pick them for jobs that need steady power in small spaces.

Where do engineers use nano planetary gear motors most often?

Engineers use these motors in robots, medical tools, tiny printers, and smart locks. They fit into small places and give exact movement. Many industries choose them for jobs that need to be accurate and dependable.

How long do nano planetary gear motors usually last?

Most nano planetary gear motors work for a long time. Strong materials and careful building help them last. Good oil and cooling also help them stay in good shape.

Do nano planetary gear motors need special maintenance?

Nano planetary gear motors need regular checks for oil and wear. Clean gears and good oil help them work well. Most do not need much care, but following the maker’s tips keeps them running.
