When you look at rotating motors types, you see how each motor changes how your project works. Picking the right motor helps save energy, makes things faster, and keeps them working well. For example, electric motors in cars now give more power and use less energy because of new winding methods and better magnets. You should know the differences in motor types because your choice changes not just how much work gets done but also how green and successful your system is.

Основные выводы

• Picking the right motor type helps your project work better. Micro DC, brushless DC, and gear motors each have uses. Micro DC motors are small and easy to use. They are good for light jobs. But their brushes wear out, so they need fixing often. Brushless DC motors last longer and are quiet. They save energy but cost more money. They also need special controllers. Gear motors have a motor and gears together. They give strong turning power at slow speeds. This is good for moving heavy things in small spaces. Always look at speed, torque, efficiency, and size. This helps you pick the best motor for your project. It also saves energy and money.

Rotating Motors Types Overview

What Are Motor Types

When you learn about rotating motors types, you find each one works differently. There are three main motor types in robotics and automation: micro dc motor, BLDC, and gear motor. Each type has its own parts and design to make things move. For example, a dc motor has a stator with magnets and an armature with wire coils. The commutator changes the current so the motor keeps spinning. Some motors use permanent magnets. Others use electromagnets. You can see how they are different in this table:

All dc motors have the same basic parts, but they come in many shapes and sizes. Micro dc motors are tiny and fit in small spaces. BLDC motors use electronics instead of brushes. Gear motors have a dc motor and a gear system to change speed and torque.

Why Motor Selection Matters

You must pick the right rotating motors types for your project because each one changes how your system works. If you choose the wrong dc motor, your robot might move too slow or waste energy. In robotics, you need motors that match your needs for speed, torque, and size. Studies show that using the right motor and gear system can save lots of energy. Companies that pick the best motors and improve their systems save hundreds of gigawatt-hours every year.

Tip: When you pick dc motors for robotics and automation, always check the voltage, speed, torque, and gear ratio. This helps you get the best results and save energy.

Knowing about rotating motors types helps you make better robots and machines. The right dc motor and gear system make your project work better and last longer.

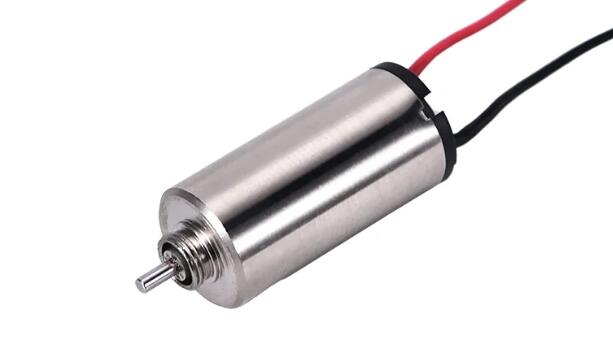

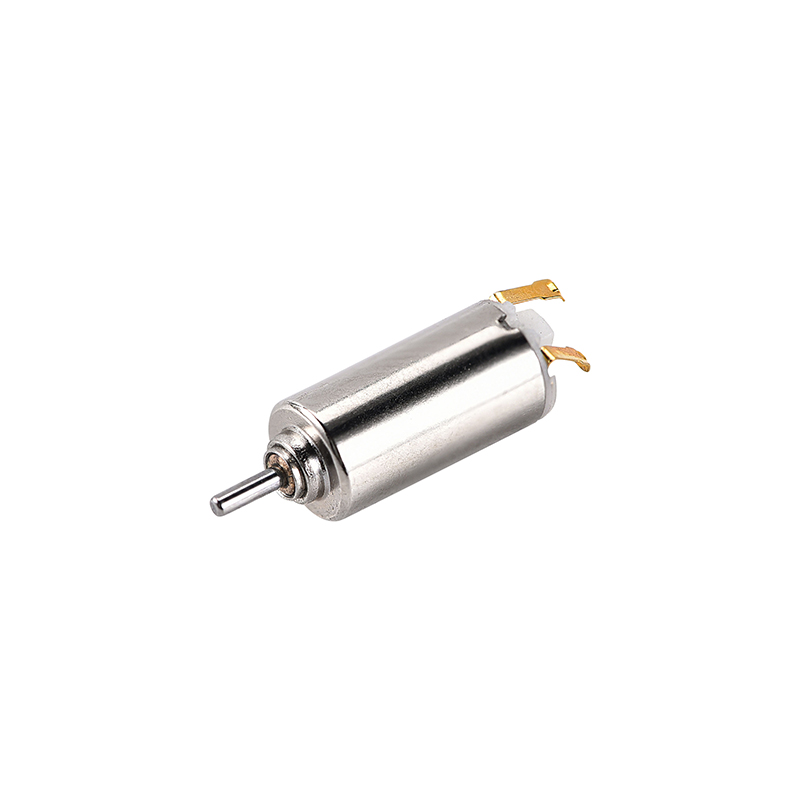

Микромотор постоянного тока

DC Motor Mechanism

A micro dc motor has simple parts that make it move. Inside, there is a rotor, a stator, brushes, and a commutator. When you give it dc current, the stator makes a magnetic field. The rotor has wire coils and sits inside this field. The commutator and brushes change the current’s direction. This keeps the rotor spinning again and again. The motor turns electrical power into movement. Speed, torque, and efficiency all work together. These help you see how the dc motor works best.

Операция

You can control a micro dc motor by changing voltage or current. If you raise the voltage, the motor spins faster. More current gives you more torque. Brushed dc motors use brushes to keep the current moving right. This makes them simple to use. You can add sensors and smart systems to check the motor’s health. These tools help you find problems like overheating or parts not lined up. They also help you save energy by matching speed to the job. Micro dc motors usually run from 1,000 to 10,000 rpm. They are in many devices because they use little power and fit in tight spaces.

Note: AI systems can help your dc motors last longer. They use less energy by changing how the motor runs as needed.

Плюсы и минусы

People pick micro dc motors because they are small and easy to use. Brushed dc motors work well and are about 75% to 80% efficient. They are good for jobs that do not need much power. You can start and stop them quickly. But the brushes wear out after some time. You will need to change them. Brushed dc motors are also louder and need more care than brushless ones. Brushless dc motors last longer and use less power. But they cost more and need special controllers. Gear motors give you more torque but lose some power because of gear friction.

Приложения

Micro dc motors are used in many places. In healthcare, they power tools and pumps because they are steady and exact. In robotics, they move robot arms and drones smoothly. Smartwatches and cameras use coreless dc motors for quiet work. In factories, dc motors help run lines and pumps. This saves energy and cuts down on stops. At home, dc motors help save money and lower carbon footprints.

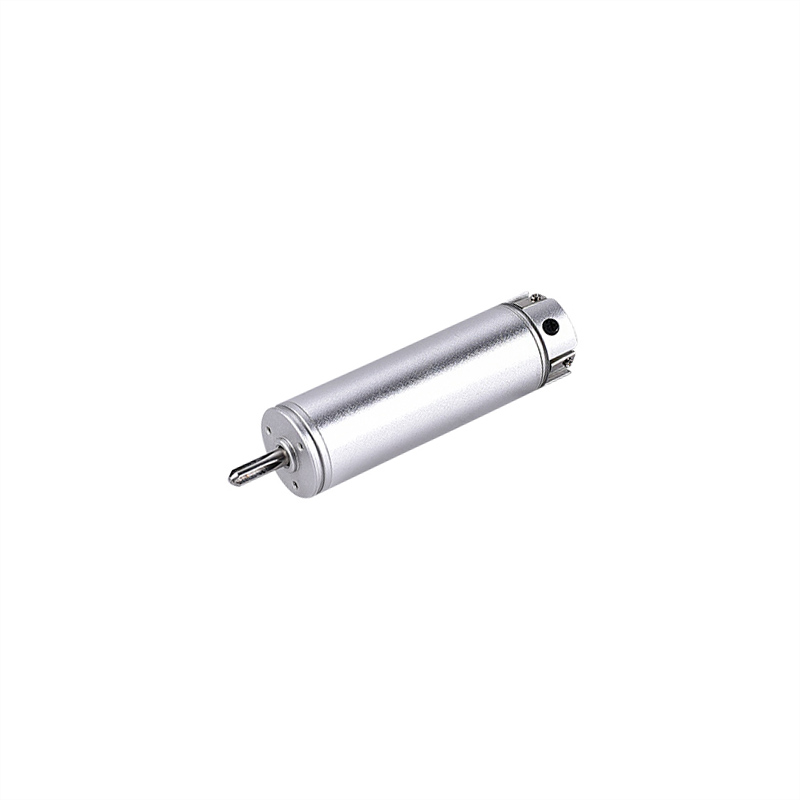

BLDC Motor

Mechanism

A brushless dc motor has a special design. It does not use brushes or a commutator. Instead, it switches current with electronics. Hall-effect sensors or encoders check where the rotor is. The controller sends current to the right coils at the right time. This keeps the motor spinning smoothly. The brushless setup cuts down on friction and heat. This means the motor works better and lasts longer. Feedback systems use smart programs to change current and voltage. These systems keep the motor steady and accurate, even if the load changes. Engineers use models like NARX and LS to guess how the motor will act. These models help control speed well and spot problems early.

Операция

You run a brushless dc motor with a controller. The controller changes current and voltage. It uses pulse-width modulation to control power. This lets you set speed and torque just right. The brushless design lets the motor spin fast and stay quiet. Sensors give feedback to keep the speed correct. The motor can start gently and stop fast. Brushless dc motors work in hot or cold places and tough spots. You do not need to change brushes, so there is less downtime. The motor’s low inertia helps it speed up and slow down quickly.

Плюсы и минусы

Pick a brushless dc motor if you want it to last long and work well. The brushless design gives you many good things:

• High efficiency, up to 95%, and less energy loss

• Exact speed and torque control

• Quiet and low vibration

• Lasts a long time with little care

• Small but powerful

• Stays cool and works well

• Reacts fast when the load changes

But there are some downsides:

• Costs more at first

• Needs a special electronic controller

• Wiring is more complex

Приложения

Brushless dc motors are used in many fields because they work well and last long. Electric vehicles use them for strong power and good speed control. Drones and robots use them for quick moves and accuracy. Medical tools use them because they are quiet and last long. Factories use them for nonstop work and less fixing. Planes and the military pick them for strength and low noise. You also find them in home and business machines where saving energy and quiet matter. Brushless dc motors can save energy and fit many needs, so they are great for new technology.

Gear Motor Types

Mechanism

Gear motors help change how a dc motor works. A gear motor has a dc motor and a gearbox together. The gearbox connects to the motor shaft. It changes how fast the motor spins and how strong it is. When you add a gearbox, the motor turns slower but gets much stronger. This helps gear motors lift heavy things or push with more force. Mechanical diagrams show how gears work. Motor nameplates tell you gear ratios, rpm, and load. These details show how the gear system changes what the motor can do. You can pick different gears, like spur or planetary, for your needs.

Операция

You pick dc gear motors to control speed and torque. The gearbox lets you choose the best gear ratio for your job. For example, a 30 W dc motor with a 200:1 gearbox can make torque go from 13.6 oz-in to 53 lb-in. The gear ratio makes the torque bigger and the speed slower. You can use formulas to find output speed and torque: – Output Speed = Motor Speed / Gear Ratio – Output Torque = Motor Torque × Gear Ratio × Gearbox Efficiency Gear motors help you move bigger loads and keep things steady. Small gear motors save space but still give high torque.

Плюсы и минусы

Gear motors have many good points: – High torque at low speed – Better control for heavy things – Small design with motor and gearbox together – More stable and less shaking – Can handle bigger loads But there are some downsides: – Gearbox makes it heavier and can cause backlash – High speed can wear out parts faster – The motor fan can be louder than the gearbox

Приложения

Gear motors are used in many places because they fix problems with torque and speed. In modular housing, gear motors move heavy panels. In factories, they lift and place loads with high torque. LED lighting systems use gear motors for smooth moves. You see dc gear motors in robots, conveyors, and train repair. Gear motors also work in mining, steel moving, and big doors. Small gear motors fit in tight spots but still give strong power.

Tip: Use gear motors when you need high torque, low speed, and steady work. They help you make your system smaller and easier to control.

Comparing Rotating Motors Types

Key Differences

When you compare different types of motors, you see that each one works in a special way. You need to know how these motors differ because your choice affects your project’s performance, efficiency, and cost. Let’s look at the main differences between micro dc motors, brushless dc motors, and gear motors.

You notice that brushed dc motors use brushes and commutators. This design makes them simple and cheap, but they need more care. They work well for low-power jobs in robotics and automation. Brushless dc motors use electronics to switch current. This gives you higher efficiency, less noise, and longer life. You see these motors in automotive and industrial systems where high torque and speed matter. Gear motors combine a dc motor with a gear system. This setup boosts torque and lowers speed. You use gear motors when you need high torque in a small space, like in robotics arms or automotive seat adjusters.

• Micro dc motors give you simple speed control and moderate torque. They fit in small devices.

• Brushless dc motors give you high efficiency and fast speed. They last longer and need less care.

• Gear motors help you get high torque at low speed. They work best when you need to move heavy loads in tight spaces.

Tip: Always check the motor’s efficiency, torque, and speed before you choose. The right motor type can save energy and lower costs in industrial and automotive projects.

Selection Guide

You need to pick the right motor for your job. The best choice depends on what you want your system to do. Here is a simple guide to help you decide:

1. Define Your Application Needs

   • Do you need high torque or high speed?

   • Is space limited?

   • Will the motor run all the time or just sometimes?

   • Does your project need quiet operation?

2. Match Motor Type to Performance Goals

   • Use micro dc motors if you want simple control, light weight, and low cost. These motors work well in small robotics, toys, and simple automation.

   • Choose brushless dc motors if you need high efficiency, fast speed, and long life. These motors fit best in automotive, drones, and industrial robotics where performance matters most.

   • Pick gear motors when you need high torque at low speed. Gear motors help in robotics arms, conveyor belts, and automotive seat or window systems.

3. Consider Maintenance and Cost

   • Brushed dc motors cost less but need more care. You will need to replace brushes often.

   • Brushless dc motors cost more at first but save money over time. They need less maintenance and last longer.

   • Gear motors have moderate cost. Maintenance depends on the gear design and how much you use them.

4. Check Efficiency and Lifetime

   • High efficiency means less energy waste. Brushless dc motors give you the best efficiency.

   • Gear motors increase torque but can lose some efficiency due to gear friction.

   • Micro dc motors work well for short tasks but may not last as long as brushless types.

5. Think About Noise and Size

   • If you need quiet operation, pick brushless dc motors or coreless motors.

   • Gear motors can be noisy if the gear design is not good.

   • Micro dc motors are small and fit in tight spaces.

Note: In robotics and automation, always balance torque, speed, efficiency, and cost. The right motor choice helps your system run better and last longer.

Quick Checklist for Motor Selection

• Do you need high torque? → Choose gear motors or brushless dc motors.

• Is efficiency your top goal? → Pick brushless dc motors.

• Is low cost more important? → Use brushed dc motors.

• Do you need simple speed control? → Micro dc motors are a good fit.

• Is space tight? → Micro dc motors or compact gear motors work best.

• Will the motor run in an industrial or automotive setting? → Brushless dc motors or gear motors are ideal.

You should always test your motor in your real system. This helps you see if the motor performance matches your needs. Good motor selection leads to better robotics, automation, and industrial results.

You need to know why micro dc motors, BLDC motors, and gear motors work best in different jobs. Each motor gives you unique performance, torque, and speed. You should match the right dc motor to your project for better efficiency and longer life. Always check the motor’s speed, torque, and efficiency. Test the dc motor in your system. Pick a motor that gives you the best performance. Focus on torque, speed, and efficiency. The right dc motor helps you reach your goals.

• Checklist for motor selection:

  1. Check dc motor speed and torque.

  2. Compare efficiency and performance.

  3. Test the motor in your project.

  4. Choose the motor that fits your needs.

Remember, the right dc motor boosts performance and saves energy.

ЧАСТО ЗАДАВАЕМЫЕ ВОПРОСЫ

Why should you choose a brushless motor over a brushed one?

You should choose a brushless motor because it lasts longer and needs less maintenance. It runs more quietly and uses energy more efficiently. This helps your project work better and saves you time on repairs.

Why do gear motors work better for heavy loads?

Gear motors give you more torque at lower speeds. This means you can move heavy things more easily. The gears help the motor handle bigger jobs without getting damaged or overheating.

Why does motor efficiency matter in your project?

Motor efficiency matters because it shows how well the motor turns electricity into movement. High efficiency means you waste less energy. This helps your project save power and reduces costs over time.

Why do some motors need regular maintenance?

Some motors, like brushed types, have parts that wear out over time. You need to replace brushes and clean them. Regular maintenance keeps the motor running smoothly and prevents breakdowns.

Why is it important to match the motor type to your application?

Matching the motor type to your application ensures you get the right speed, torque, and size. This helps your system work safely and efficiently. The right choice also extends the life of your equipment.
