Selecting the right motor is easier with torque-speed curves, which are essential for effective motor selection. These curves illustrate how torque and speed interact, helping you achieve optimal performance for your specific needs. For small gear motors, the curve provides crucial insights, indicating where the motor delivers the most power or operates at peak efficiency.

1. Die area under the curve represents the motor’s power, which is highest at half its no-load speed.

2. Operating beyond peak efficiency diminishes power and negatively impacts reliability.

3. Various loads and gear configurations alter the motor’s performance on the curve.

With this knowledge, you can make informed motor selections that enhance efficiency and ensure longevity.

Wichtigste Erkenntnisse

• Learn torque-speed curves to pick the right motor. These curves show how torque and speed work together, helping you choose the best motor for your job.

• Use the motor in its efficiency zone. Staying in this zone saves energy and makes the motor last longer, giving steady performance.

• Match the motor’s torque to your task. Different jobs need different torque, so pick a motor that fits your load needs.

• Choose the correct gear ratio. The right ratio balances torque and speed, making the motor work better for your task.

• Focus on maintenance and strength. Regular checks and strong motors stop problems and keep them working longer.

Basics of Torque-Speed Curves

What Are Torque-Speed Curves?

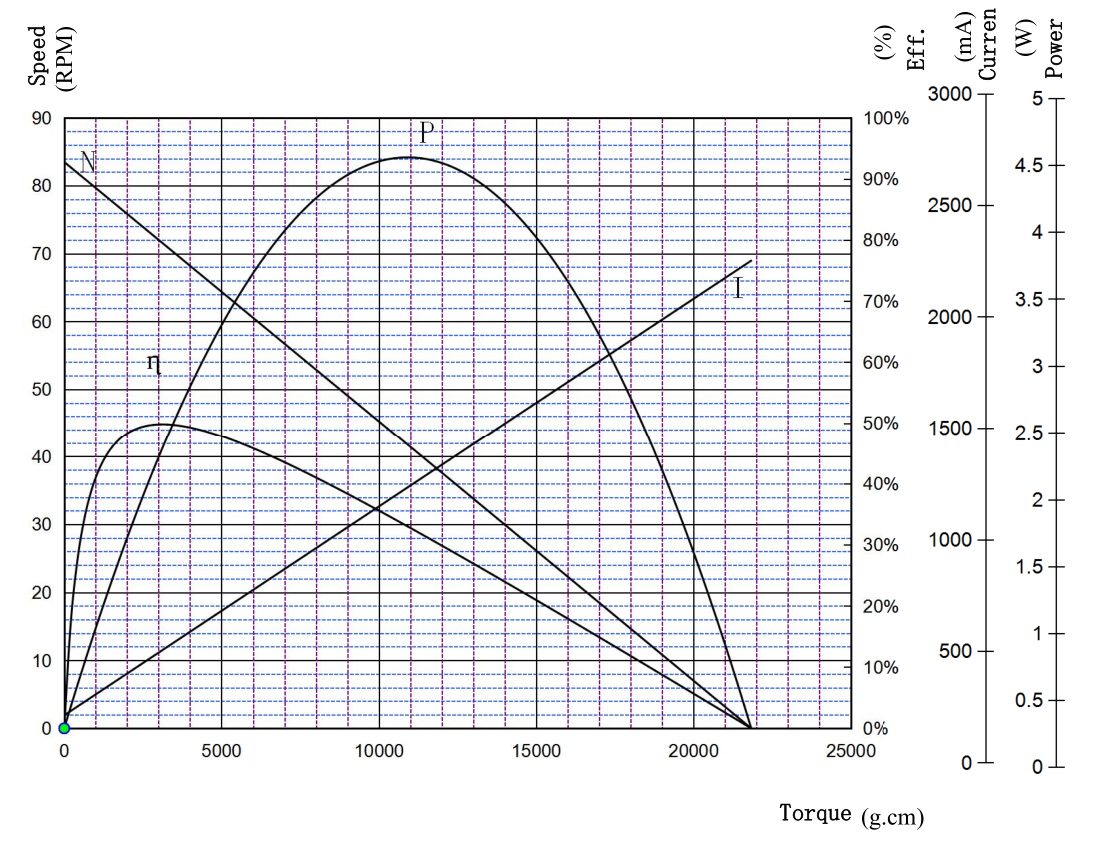

Torque-speed curves are graphs that show how a motor’s Drehmoment changes as its speed varies. These graphs help explain how a motor works in different situations. At one end, the curve starts at stall torque, where the motor stops because the load is too heavy. As the motor spins faster, the torque gets smaller, showing an opposite relationship. This curve is important for finding the best speed and torque for your needs.

When looking at a motor’s curve, pay attention to its shape and key points. The stall point shows the highest torque, while the no-load speed is the fastest speed with very little torque. Between these two points is the motor’s most efficient zone, where it works best with a good mix of speed and torque.

Important Terms: Torque, Speed, Efficiency, Power, and Current

Several terms describe how a motor works and help you read torque-speed curves:

• Torque (T): Shows how much load the motor can handle. Stall torque is the most torque before the motor stops.

• Speed (N): Tells how fast the motor spins. When torque goes up, speed goes down.

• Efficiency (η): Measures how well the motor turns energy into work. Efficiency is highest at lower torque.

• Current (I): Shows how torque and electricity are connected. More torque needs more current.

• Power (P): Shows the motor’s energy output, which is highest between stall torque and top speed.

Knowing these terms helps you pick a motor that fits your gear system.

What Torque-Speed Curves Tell Us About Motors

Torque-speed curves show how a motor behaves in different conditions. For example, the curve shows how Drehmoment affects speed and efficiency. When the motor runs near its best efficiency, it gives the most power with the least energy waste.

The curve also shows how torque and current are linked. When torque increases, the motor uses more current, which affects energy use. The curve also highlights how well the motor handles loads without losing reliability.

By studying the curve, you can see what the motor does well and where it might struggle. This helps you choose the right motor for your job.

Interpreting Torque-Speed Curves for Motor Selection

Finding Key Performance Zones

To understand a motor’s curve, focus on zones where it works best. These zones show how the motor handles different tasks and help decide if it fits your needs.

1. Starting Region (0 to Pull-Up Torque): The motor gives strong torque at slow speeds. This is great for starting heavy loads.

2. Stable Operating Region (Pull-Up Torque to Breakdown Torque): The motor runs steadily here. Speed drops slightly as the load grows.

3. Stalling Region (Beyond Breakdown Torque): Too much load slows the motor. This can cause overheating or damage.

4. Constant Torque Region: The motor keeps high torque from stop to base speed. This is useful for starting heavy machines.

5. Field Weakening Region: After base speed, torque lowers but power stays steady. This helps the motor work well at faster speeds.

6. Constant Power Region: Near top speed, power stays high while torque drops. This keeps the motor efficient during fast operations.

Knowing these zones helps match the motor’s torque to your gear system.

Studying Torque-Speed Connections

Torque and speed affect how a motor performs. When torque rises, speed falls. This balance shows how the motor handles different loads. Engineers use methods to study this connection:

These tools help predict how the motor behaves with changing loads.

Real-Life Gear Motor Examples

Think about a small motor in a conveyor belt. It should stay in the stable zone of the curve for smooth operation. If the load grows, the motor must stay efficient without overheating. By checking the curve, you can pick the best gear ratio for balance.

Another example is a motor in a robotic arm. The constant torque zone is key for lifting heavy items. The motor’s efficiency zone saves energy and makes the system last longer. These examples show how torque-speed curves improve motor performance.

How to Use Torque-Speed Curves for Optimal Motor Selection

Determining Load and Torque Requirements

To pick the right motor, know your load and torque needs. Torque-speed curves help match the motor’s abilities to your system. Follow these steps to figure out load and torque requirements:

1. Check the Load Conditions: Think about steady, starting, and acceleration torque. Steady torque shows heat demand. Starting and acceleration torque handle moving heavy loads.

2. Study the Motor’s Curve: Look at the torque-speed curve to see how the motor works. Match the motor’s output to what the load needs.

3. Plan for Overloads: Use the service factor to pick a motor that handles extra loads. This avoids overheating and keeps efficiency high.

Tipp: Always measure load torque carefully. This helps the motor work well without breaking or losing power.

By thinking about these points, your motor will work better and last longer.

Matching Motor Performance to Application Needs

After knowing the load and torque, match the motor to your task. Torque-speed curves show how the motor acts in different situations. Here’s how to use this info:

• Find the Needed Torque Types: Different tasks need different torque. For example:

  • Full-load torque gives power at full speed.

  • Locked-rotor torque starts heavy loads.

  • Pull-up torque helps the motor speed up smoothly.

  • Breakdown torque shows the motor’s limit before stopping.

• Focus on Efficiency: Pick a motor that works in its best efficiency zone. This saves energy and makes the motor last longer.

• Think About Reliability: Make sure the motor can handle the job without breaking often.

By matching the motor to your task, you’ll get better performance and save energy.

Selecting the Right Gear Ratio for Small Gear Motors

The gear ratio affects how well a small motor works. Torque-speed curves help pick the right ratio by showing torque and speed together. Here’s how to choose:

1. Learn About Transmission Ratios: Different gears have different ratios. For example:

   • Planetary gears have ratios from 3 to 50 but lose efficiency at higher ratios.

   • Strain wave drives range from 30 to 180 but lose efficiency over 100.

   • Cycloidal drives stay efficient across many ratios, great for tough jobs.

2. Balance Torque and Speed: Higher ratios give more torque but less speed. Lower ratios give more speed but less torque. Use the curve to find the right mix.

3. Aim for Efficiency: Pick a ratio that keeps the motor in its best efficiency zone. This saves energy and improves performance.

Hinweis: Don’t overload the gears. Too much strain can wear them out and lower efficiency.

By choosing the right gear ratio, your motor will work better and meet your needs.

Prioritizing Efficiency and Long-Term Reliability

Picking a motor that works well and lasts long is important. Torque-speed curves help find the best balance between energy use and durability. By studying these curves, you can spot where the motor works best and avoid problems like overheating or wasted energy.

Why Efficiency Matters

Efficiency shows how well a motor turns electricity into power. Motors in their best efficiency zones use less energy, saving money and helping the environment. Torque-speed curves show these zones clearly. For example, motors running at high Drehmoment but slow speeds waste energy by making too much heat. Staying in the efficiency zone keeps the motor strong without extra strain.

Tipp: Keep the motor in its best efficiency zone. This saves energy and makes the motor last longer.

The Role of Reliability

Reliability means the motor can handle different loads without breaking often. Torque-speed curves show how the motor reacts to changes in Drehmoment and speed. Motors near stall or breakdown Drehmoment can overheat or fail. Picking a motor that stays in steady zones lowers repairs and makes the system stronger.

Insights from Long-Term Studies

Studies on brushless DC motors show why efficiency and reliability matter. Smart methods, like nature-inspired algorithms, improve speed control and reduce errors. Tests like ANOVA and t-tests prove motors in their best zones work better. These studies show how torque-speed curves help pick the right motor.

Practical Steps to Prioritize Efficiency and Reliability

1. Study the Torque-Speed Curve: Find zones where the motor works well. Avoid areas with high Drehmoment and slow speeds to prevent overheating.

2. Match the Motor to the Job: Make sure the motor fits your system’s needs. For example, a conveyor belt motor should stay in its steady zone for smooth operation.

3. Pick the Right Gear Ratio: Choose a gear ratio that keeps the motor efficient. Higher ratios give more Drehmoment but slower speeds, while lower ratios do the opposite.

4. Check Performance Over Time: Watch how the motor works compared to its curve. This helps catch problems early and keep it efficient.

By following these steps, you can choose a motor that works well and lasts longer.

Avoiding Common Pitfalls in Motor Selection

Misinterpreting Torque-Speed Data

Understanding torque-speed data is key to picking the right motor. Misreading this data can cause poor performance or even motor failure. You need to study how Drehmoment and speed work together in different situations.

A common mistake is ignoring how rotor resistance affects slip and maximum Drehmoment. Higher rotor resistance changes the slip value where peak Drehmoment happens. This might lead you to choose a motor that looks good but doesn’t provide enough starting Drehmoment. Also, more rotor resistance lowers starting current but increases slip during use. This raises rotor losses and lowers efficiency.

To avoid these problems, compare the torque-speed curve with real-world conditions. Check how resistance, load, and operating changes affect motor performance. This helps you pick a motor that fits your needs.

Overlooking Load Variations and Operating Conditions

Load changes and operating conditions affect how motors work. Ignoring these can make a motor fail or wear out faster. You must think about how the motor handles different loads and environments.

For example, a motor made for steady loads may struggle with frequent starts or sudden load changes. These conditions cause extra wear, shortening its life. Environmental factors like heat, humidity, or vibration also affect efficiency and reliability. A motor in a hot area may overheat if it’s not rated for high temperatures.

To solve these issues, study the motor’s load profile and environment before choosing. Pick a motor with a service factor that handles overloads and tough conditions. This ensures the motor works well without breaking down.

Tipp: Test the motor in simulated conditions to find problems before installing it.

Ignoring Efficiency at Different Speeds

Efficiency changes with speed, and ignoring this can hurt motor performance. Motors work best in a specific speed range called the efficiency zone. Running outside this zone wastes energy and creates heat, lowering efficiency and lifespan.

Studies show why managing efficiency matters:

• Motors are efficient at rated conditions but lose efficiency with light loads.

• Adjusting rotor flux reduces losses and boosts efficiency.

• Tests prove controllers can improve efficiency effectively.

To keep efficiency high, match the motor’s speed to your task. Use torque-speed curves to find the efficiency zone and stay within it. Check the motor’s performance often to catch efficiency problems early.

Hinweis: Focusing on efficiency saves energy and makes the motor last longer.

Skipping Maintenance and Ignoring Durability

Not taking care of motors can cause big problems. Motors need regular checks to work well and stay safe. Without proper care, they may break down, cost more, or even become dangerous. To avoid this, focus on keeping them in good shape and choosing durable ones.

Why Maintenance Is Important

Maintenance keeps motors running smoothly for a long time. Small problems can turn into big failures if ignored. For example:

• Skipping repairs leads to expensive fixes. A tiny issue can ruin key parts, costing a lot to replace.

• Broken motors stop work. This downtime wastes time and money.

• Neglect wears out motors faster. This means you’ll need a new one sooner than planned.

Tipp: Check motors often to catch small problems early.

Why Durability Matters

Durable motors handle tough jobs without breaking easily. Motors in hot or shaky places need strong designs. Ignoring durability can cause:

• Motors to fail early in hard conditions. Weak motors may overheat or wear out fast.

• Safety risks in important industries. A broken motor in medical tools or machines can be dangerous.

• Damage to your business image. Customers lose trust if motors break often.

Pick motors that match the environment and workload. Choose ones with extra strength to handle surprises. This keeps them working well under pressure.

How to Improve Maintenance and Durability

1. Make a Care Plan: Set up regular checks like cleaning and oiling. Look for worn-out parts.

2. Watch Motor Stats: Use tools to track speed, torque, and efficiency. Sudden changes mean something’s wrong.

3. Pick Strong Materials: Get motors made from tough stuff that resists rust and damage. This is key for harsh places.

4. Teach Your Team: Train workers to care for motors properly. Skilled teams spot problems early.

Hinweis: Spending time on care and durability saves money and keeps motors reliable.

Taking care of motors helps them last longer and work better. A well-kept motor gives steady power and torque, making your system run smoothly.

Torque-speed curves are important when picking a motor. They show how a motor works in different situations. This helps you choose the right motor for your needs. By studying these curves, you can make the motor more efficient, reliable, and last longer.

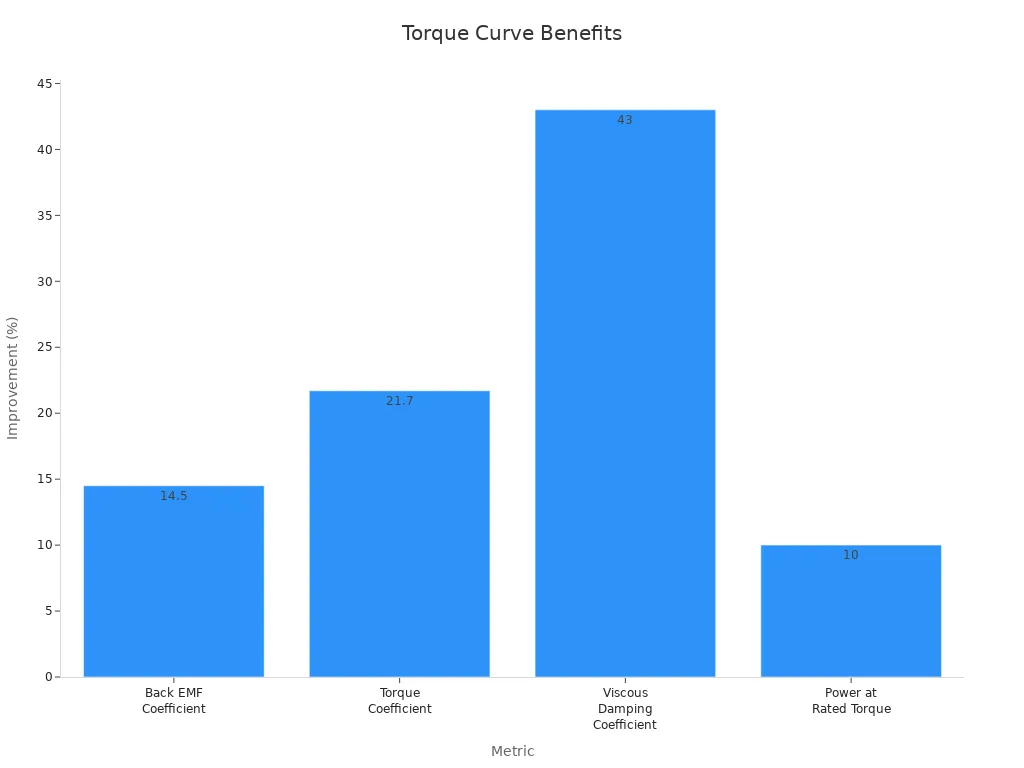

Using torque-speed analysis has clear benefits. For instance, a study compared regular motors to air-isolated ones. The air-isolated motors showed big improvements in key areas:

Adding torque-speed curve analysis to your motor selection process is smart. It boosts performance and saves money over time. Start using this method now to pick better motors for your projects.

FAQ

What is the most important part of a torque-speed curve for motor selection?

Look at the efficiency zone. This part shows where the motor works best without wasting energy. Staying here makes the motor last longer and saves money.

How do you calculate the torque needed for your application?

Find the load’s weight and how fast it needs to move. Use this formula:
Torque (Nm) = Force (N) × Radius (m).
This helps you pick a motor that fits your system.

Can torque-speed curves predict motor lifespan?

Yes, in a way. Running outside the efficiency zone or near stall torque causes more wear and heat. This shortens the motor’s life. Use the curve to avoid these problems.

Why does motor efficiency drop at low speeds?

At slow speeds, motors need more current to keep torque. This wastes energy as heat and lowers efficiency. Staying in the efficiency zone helps avoid this.

How do gear ratios affect torque-speed performance?

Higher gear ratios give more torque but less speed. Lower ratios give more speed but less torque. Use torque-speed curves to find the right mix for your job.
