Product Introduction

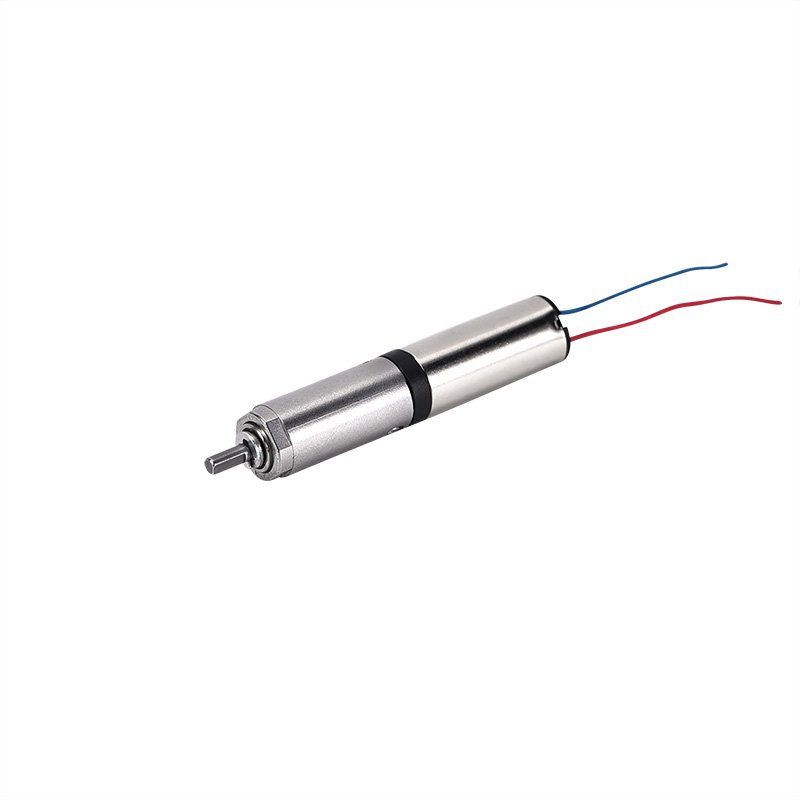

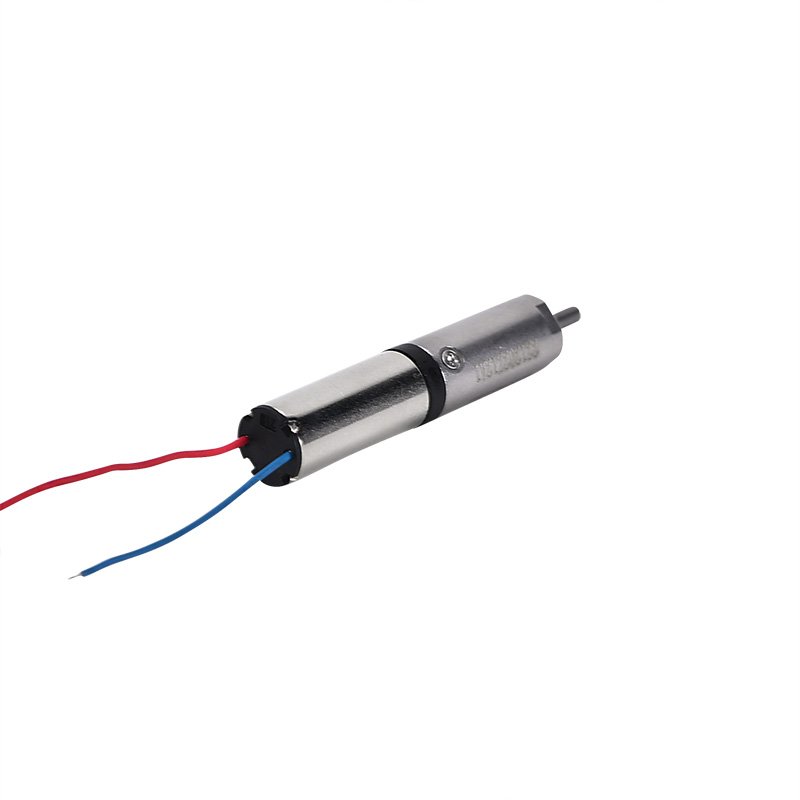

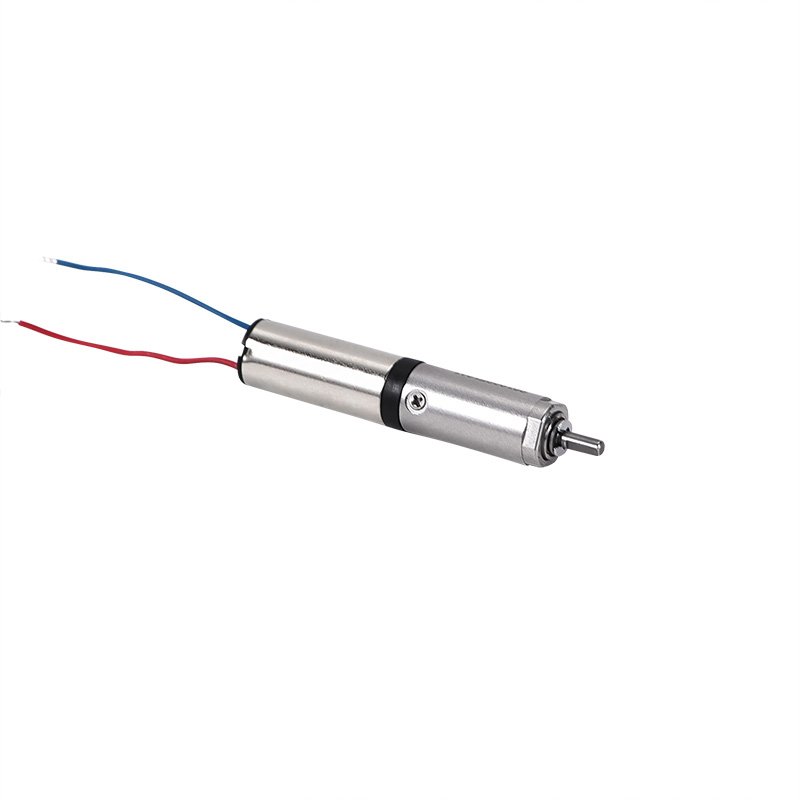

The IND-GMBMD006 precision gear motor series is built around a 6mm metal planetary gearbox for compact mechanisms where torque density and repeatability matter. We keep the series organized with 14 gear ratio options, so engineers can tune output speed and torque without redesigning around a different motor platform.

In a planetary gearbox, multiple planet gears share the load, which helps maintain consistent meshing under changing loads and frequent start-stop operation. That makes this series a practical choice for small actuators and gear-driven micro mechanisms where space is limited but the drive still needs to feel “solid” in use.

From a supplier standpoint, our goal is to reduce integration risk and shorten your build cycle. We can support your selection with drawings and key parameters, then align the configuration around your assembly needs—shaft style/length, wire length, and connector preferences. If you send your target RPM, required torque, available voltage, and duty cycle, we’ll recommend the most suitable ratio within the IND-GMBMD006 range and confirm the mechanical interfaces before sampling.

Outline drawing

Customizable items: 1. Voltage, output speed, torque, etc. ; 2. Adding connectors, lead wire length.

The basic parameters are for reference

FAQs

Q1: How many gear ratios are available in IND-GMBMD006?

IND-GMBMD006 provides 14 gear ratio options. If you share your RPM/torque targets, we’ll narrow it down quickly.

Q2: What information do you need to recommend the right ratio?

Target output RPM, load torque (continuous/peak), voltage, and duty cycle. Shaft and space constraints also help.

Q3: Can you support integration with drawings and OEM options?

Yes. We can provide CAD/outline drawings and support OEM requests for shaft type, wire length, and connector.
