When you look at how planetary gearboxes work, you see a smart system that uses several gears to transmit power with great efficiency. The gears inside mesh together in a way that creates multiple contact points. This setup leads to smoother movement and less friction.
You get high torque even in compact spaces.
The design reduces backlash, so the power transfer stays stable.
Planetary gearboxes use these interactions to deliver reliable results in high-torque, low-speed tasks.
Key Takeaways
Planetary gearboxes provide high torque in compact designs, making them ideal for applications where space is limited.
The unique gear arrangement minimizes energy loss, achieving efficiency ratings of up to 95%, which saves energy and enhances performance.
Multiple planet gears share the load, reducing wear and increasing the lifespan of the gearbox, ensuring reliable operation.
The modular design of INEED planetary gear motors allows for customization, enabling users to tailor gear ratios and performance to specific needs.
Low noise operation and durability make planetary gearboxes suitable for sensitive environments, such as healthcare devices.
Planetary Gearboxes: Key Components
Planetary gearboxes work because each part plays a specific role in transmitting power and controlling movement. You can see how the sun gear, planet gears, ring gear, and carrier interact to create a system that delivers high torque and precision. INEED specializes in designing these components for maximum efficiency and reliability.
Sun Gear
The sun gear sits at the center of the gearbox. You rely on it to drive or receive power from the motor.
The sun gear acts as the main driver, transferring torque and speed to the planet gears.
Its design affects how much torque and speed you get from the gearbox.
The way the sun gear meshes with the planet gears determines how efficiently power moves through the system.
The sun gear is the central driving component. Its interaction with the planet gears influences torque, speed, and overall efficiency.
Planet Gears
Planet gears surround the sun gear and rotate around it. You benefit from their ability to share the load and increase torque.
These gears engage with both the sun and ring gears.
They distribute the load, which reduces stress on each gear tooth.
Multiple planet gears mean you get higher stiffness and more precise motion control.
In a planetary system, the input torque spreads across several planet gears. This load-sharing boosts torque, lowers stress, and increases gearbox stiffness.
Massive torque increase: Three planet gears can transfer three times the torque of a similar spur gear setup.
Reduced stress: Each gear tooth experiences less wear.
Higher stiffness: Multiple contact points improve motion control.
Ring Gear
The ring gear forms the outer edge of the gearbox. You see it mesh with the planet gears, helping to transmit torque.
The ring gear can stay fixed or rotate, depending on the design.
It helps set the gear ratio and influences how much torque you get.
The ring gear evenly distributes torque among the planet gears, which improves efficiency.
Carrier
The carrier holds the planet gears in place. You depend on it to keep everything aligned and stable.
The carrier ensures the planet gears stay evenly spaced around the sun gear.
It maintains smooth operation and efficient power transfer.
Proper alignment from the carrier means less vibration and more reliable performance.
The carrier is essential for keeping the planet gears correctly positioned. This alignment is vital for smooth functioning and efficient power transfer.
Gear Component | Function |
|---|---|
Sun Gear | Transfers torque and speed to the planet gears. |
Planet Gears | Distribute load, engage with sun and ring gears. |
Ring Gear | Meshed with planet gears, influences gear ratio and torque. |
Carrier | Maintains alignment and stability of planet gears. |
INEED’s expertise in high-precision planetary gear motors means you get gearboxes with optimized components for your specific needs. The modular design lets you customize gears, shafts, and casings, so you can adjust power, speed, and efficiency for any application.
Working Principle of Planetary Gearboxes
Understanding the working principle of planetary gearboxes helps you see why these systems deliver high torque and efficiency in compact designs. You notice that the arrangement of gears inside the gearbox is not random. Each gear has a specific job, and the way they interact creates the unique benefits you get from planetary gearboxes.
Gear Interaction
You observe that planetary gearboxes use three main gears: the sun gear, planet gears, and ring gear. The sun gear sits in the center and provides input power. The planet gears surround the sun gear and orbit around it. The ring gear encases the planet gears and helps distribute torque to the output shaft.
The sun gear rotates and drives the planet gears.
The planet gears mesh with both the sun gear and the ring gear.
The ring gear can stay fixed or rotate, depending on the design.
This arrangement allows the planet gears to rotate on their own axes while also revolving around the sun gear. You get simultaneous rotation and revolution, which is the foundation of the working principle. The carrier holds the planet gears and connects to the output shaft. When the sun gear turns, the planet gears roll along the inside of the ring gear, causing the carrier to rotate. This process multiplies torque and reduces speed.
You benefit from multiple contact points between the gears. This design shares the load, reduces stress on each gear tooth, and increases the overall stiffness of the gearbox.
Power Transmission
You rely on planetary gearboxes for efficient power transmission. The working principle ensures that input power from the motor passes through the sun gear to the planet gears. The planet gears then transfer this power to the ring gear and the carrier.
Gearbox Type | Efficiency |
|---|---|
Planetary Gearbox | 95% or better |
Helical Gearbox | High efficiency |
You see that planetary gearboxes achieve up to 95% efficiency or better. The sealed lubrication system inside the gearbox minimizes maintenance and keeps the gears running smoothly. You get reliable performance with regular checks and proper setup.
INEED planetary gear motors use this principle to deliver stable output and high torque. The design allows you to customize the gearbox for different applications, ensuring you get the right balance of speed and power transmission.
Speed and Torque Adjustment
You notice that planetary gearboxes excel at adjusting speed and torque. The working principle lets you change which gear acts as the input, output, or stays stationary. This flexibility gives you different speed and torque ratios.
If you use the sun gear as the input and hold the ring gear stationary, the carrier becomes the output. You get increased torque and reduced speed.
If you use the planet carrier as the input and hold the ring gear stationary, the sun gear becomes the output. You get a different speed and torque ratio.
If you use the sun gear as the input and hold the carrier stationary, the ring gear becomes the output. You get increased speed and reduced torque.
You achieve torque multiplication because the load spreads across multiple planet gears. As torque increases, speed decreases. This is why you choose planetary gearboxes for applications that need high torque in small spaces.
INEED planetary gear motors use this working principle to provide precise speed control and high torque output. You can select different gear ratios to match your needs, whether you want more speed or more torque.
You see that the unique gear arrangement and interaction inside planetary gearboxes explain why these systems are so effective. The working principle gives you the ability to transmit power efficiently, adjust speed and torque, and maintain reliable performance in demanding applications.
Advantages of INEED Planetary Gear Motors
When you choose INEED planetary gearboxes, you unlock several important advantages. These motors stand out because they deliver high torque, precision, and reliability in a compact package. Let’s explore why you benefit from these features.
High Precision and Efficiency
You get high torque transmission with INEED planetary gearboxes. The unique gear arrangement allows for strong turning force without increasing the size or weight. You notice minimal extra movement during gear shifts, which means you achieve precise positioning in robotic and automation tasks. Efficiency ratings reach up to 95%, so you use more power for movement and less is lost as heat.
High torque density lets you power demanding applications.
Low backlash precision ensures accurate control.
High efficiency means you save energy.

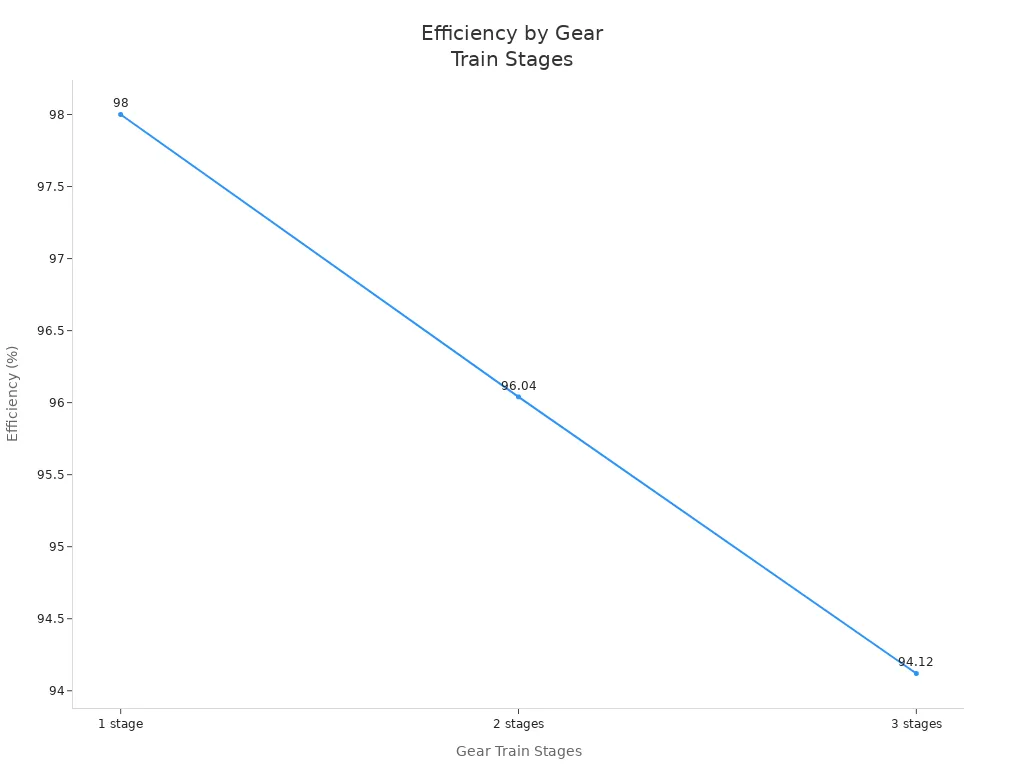

Gear Train Stages | Efficiency Calculation | Efficiency (%) |
|---|---|---|
1 | 98% | 98 |
2 | 98% × 98% | 96.04 |
3 | 98% × 98% × 98% | 94.12 |
Compact Design and Versatility
You benefit from the compact design of INEED planetary gearboxes. These motors fit into tight spaces while still providing high torque. The multi-gear arrangement shares the load, reducing energy loss and boosting performance. You find these motors especially useful in robotics and medical devices, where every millimeter counts.
Compact size allows installation in space-constrained devices.
High torque output supports heavy-duty tasks in small packages.
Versatile design adapts to different applications.
Low Noise and Durability
You experience quieter operation with INEED planetary gearboxes. The advanced gear arrangement and proper lubrication keep noise levels low. You also rely on their durability, as INEED uses strict quality checks and lifetime testing to ensure long-lasting performance.
Quality Checks | What It Guarantees |
|---|---|
Material Checks | Only the best materials are used. |
Lifetime Testing | Motors work well for a long time. |
Key Process Inspections | Motors meet strict performance rules. |
Final Shipment Checks | Products arrive in perfect shape. |
Low noise operation improves comfort in sensitive environments.
Durability testing reduces expected failures by over 50%.
Stable output and reduced oscillation mean reliable results.
You gain peace of mind knowing your motor will last and perform quietly, even in demanding conditions.
Applications of INEED Planetary Gear Motors
You see planetary gearboxes powering a wide range of devices across multiple industries. Their compact size and high torque output make them a top choice for engineers who need reliable and efficient solutions. In 2023, planetary gear motors represented 22% of the total gear motor market, with demand rising by 9% year-over-year. You benefit from their versatility whether you work in robotics, healthcare, or industrial automation.
Robotics and Automation
You rely on planetary gearboxes in robotics and automation because they deliver precise movement and strong lifting power. The high torque density lets robotic joints lift heavy loads with ease. You notice the compact design fits into tight spaces, which is essential for building agile robots. Low backlash ensures that each movement responds accurately to control commands.
High torque density enables lifting and moving heavy objects.
Compact design fits space-constrained robotic joints.
Low backlash provides precise and responsive motion.
You achieve smoother and more accurate motion in robotic arms and automation equipment. INEED planetary gear motors help you build robots that work efficiently in factories, warehouses, and research labs.
Healthcare Devices
You find planetary gearboxes in medical devices such as insulin pumps, oral irrigators, and infusion pumps. Their compact design allows you to create smaller, more comfortable devices for patients. Strong torque handling ensures reliable operation, which is critical for healthcare applications.
Feature | Planetary Gear Motors | Spur Gearboxes |
|---|---|---|
Torque Handling | Stronger torque | Lower torque handling |
Efficiency | Moderate | Higher efficiency |
Design | Compact | Varies |
You improve patient comfort and device reliability by choosing planetary gearboxes for healthcare solutions. INEED motors power devices that require precise control and stable output, such as insulin pumps and portable oral irrigators.
Industrial Machinery
You use planetary gearboxes in industrial machinery to manage power transmission and torque under heavy loads. These gearboxes distribute power smoothly, which helps your machines run efficiently. High-quality materials ensure durability, reducing maintenance and downtime.
Power transmission and torque management for smooth operation.
Durability and reliability in harsh environments.
Enhanced efficiency and fuel economy for lower operating costs.
Aspect | Planetary Gearbox | Helical Gearbox |
|---|---|---|
Initial Purchase Price | 20-40% higher than helical | Lower than planetary |
Total Cost of Ownership | More economical in specific cases | Generally higher in some cases |
Efficiency | Higher efficiency | Moderate efficiency |
Space Requirements | More compact | Larger footprint |
You save space and improve efficiency in your industrial equipment by using planetary gearboxes. INEED motors support miniaturization trends, allowing you to design smaller, more powerful machines.
You see that planetary gearboxes offer solutions for robotics, healthcare, and industrial machinery. Their compact size, high torque, and reliability explain why you choose them for demanding applications.
You choose planetary gearboxes because they deliver high torque, top efficiency, and a compact design.
You get up to 98% efficiency and reliable torque distribution.
You benefit from a structure that resists bending and handles heavy loads.
You see INEED planetary gear motors praised for durability, ease of use, and strong customer support.
You support sustainability with recyclable materials and energy-saving manufacturing.
Planetary gearboxes give you precision, versatility, and lasting value in robotics, healthcare, and industry.
FAQ
Why do you choose a planetary gearbox for high-torque applications?
You select a planetary gearbox because it shares the load across multiple gears. This design increases torque output and reduces wear. You get reliable performance in compact spaces, which is ideal for robotics and industrial machinery.
Tip: Multiple planet gears mean higher torque and longer lifespan.
Why does a planetary gearbox operate with less noise?
You notice less noise because planetary gearboxes have more gear contact points. This setup allows smoother rotation and reduces vibration. You experience quieter operation, especially in sensitive environments like healthcare devices.
More contact points
Smoother movement
Why is a planetary gearbox more efficient than other types?
You benefit from higher efficiency because planetary gearboxes minimize energy loss. The gears mesh tightly, so you get up to 95% efficiency. You use more of your input power for movement, not heat.
Gearbox Type | Efficiency (%) |
|---|---|
Planetary Gearbox | Up to 95 |
Spur Gearbox | 85-90 |
Why do you see planetary gearboxes in medical and automation devices?
You find planetary gearboxes in these devices because they offer precise control and compact design. You can fit them into small spaces without losing torque. You get stable, reliable motion, which is critical for medical pumps and robotic arms.
Note: Precision and compactness make planetary gearboxes ideal for advanced devices.
Why should you consider INEED planetary gear motors for custom solutions?
You choose INEED planetary gear motors because you can customize gear ratios, output shafts, and encoders. You get motors tailored to your needs, ensuring optimal performance for your specific application.
Customizable options
Reliable support
