Selecting the right BLDC motor driver is critical for your project’s success. When you match your driver to your motor and application, you help avoid issues like inconsistent rotation or unexpected stops. Many failures stem from mismatched voltage, current, or control settings.
Fault | Symptoms | Common Causes |
|---|---|---|
Start-up failure/jitter | Motor jitters and shuts down | Hall sensor failure, mechanical resistance, control parameter mismatch |
You should always consider voltage, current, control interface, protection, and compatibility. Trusted brands like INEED offer reliable, customizable solutions that help you achieve lasting performance.
Key Takeaways
Understand your BLDC motor’s voltage, current, and power ratings. This knowledge helps you select a compatible driver and avoid performance issues.
Choose a driver with the right control features for your application. Options like PWM control and overvoltage protection enhance motor performance and safety.
Ensure the driver includes essential protection features. Overcurrent and overtemperature protection prevent damage and extend the lifespan of your motor.
Consider environmental factors when selecting a driver. High temperatures and humidity may require additional cooling solutions to maintain stability.
Always prototype and test your setup before full production. This step helps identify issues early and ensures your system operates smoothly.
Application Requirements
Motor Specs: Voltage, Current, Power
You need to start by understanding the basic specifications of your bldc motor. Voltage, current, and power ratings help you match the motor driver to your application. Each motor has unique requirements, so you must check the datasheet or manufacturer’s guidelines. The input voltage determines how much electrical energy the motor receives. Current ratings show how much electricity the motor uses during operation. Power ratings help you estimate the motor’s workload and efficiency.
Here is a simple table to help you understand these parameters:
Parameter | Description |
|---|---|
Input Power | Calculated as Current (Amps) * Voltage (Volts) |
Output Power | Calculated as Speed (radians/sec) * Torque (Nm) |
Power Density | BLDC motors exhibit high power density |
You should also consider continuous and peak current ratings. Continuous current is the maximum the driver can handle during regular use. Peak current is the highest level the driver can support for short bursts, such as during acceleration.
Tip: Always calculate both input and output power to ensure your motor meets your project’s needs.
Control Needs and Environment
Control features play a big role in how your bldc motor performs. You may need options like PWM control, current limiting, or overvoltage protection. These features help you manage speed, torque, and safety.
Environmental factors can affect your motor’s stability and lifespan. High temperature and humidity may require cooling systems or protective enclosures. Vibration and electromagnetic interference can also impact performance, especially in industrial settings.
Applications in harsh or damp environments may need specific IP ratings.
High temperature and humidity can affect stability, so consider cooling solutions.
Electromagnetic interference and vibration can impact operation, so plan for protection.
You must ensure the motor driver is compatible with your motor type and application. Proper thermal management, such as heat sinks or fans, helps prevent overheating and extends the life of your motor.
BLDC Motor Driver Selection
Choosing the right bldc motor driver for your application requires careful attention to technical details. You need to match the driver’s specifications to your motor and the demands of your project. This section will guide you through the most important factors to consider.
Voltage and Current Ratings
You must always check that the voltage and current ratings of your brushless dc motor driver match your motor’s requirements. If you use the wrong ratings, you risk damaging both the motor and the driver. Here are some industry standards to help you:
The voltage rating of the brushless dc motor driver must align with the motor’s voltage rating.
Operating a motor below its rated voltage can increase current draw, which raises heat and lowers efficiency.
Always follow the recommended voltage range in the motor’s datasheet to avoid overheating and failure.
If you mismatch the ratings, you can face serious problems:
Consequence | Description |
|---|---|
Increased mechanical stress | Higher than rated voltage increases stress on motor components. |
Overheating | Higher voltage leads to more heat, risking overheating of both motor and driver. |
Potential damage | Continuous operation beyond ratings can damage both the motor and the brushless dc motor driver. |
You should also consider the current. If the current is limited, the motor may act like a load on a constant current power supply, but this does not remove the risks of exceeding voltage ratings. Always check both continuous and peak current ratings for your brushless dc motor driver.
Tip: Use the torque-to-speed ratio to relate the force you need to the speed of your application. This helps you select the right brushless dc motor driver for your needs.
Control Interface Options
The control interface of your brushless dc motor driver affects how you manage speed, direction, and torque. You have several options to choose from, each with its own benefits:
Control Method | Description |
|---|---|
Trapezoidal Commutation | Uses a simple six-step sequence with Hall-effect sensors for rotor position. |
Field Oriented Control (FOC) | Provides precise control of speed and torque, but needs more processing power. |
Direct Torque and Flux Control | Offers efficient sensorless commutation, ideal for high-speed operation with minimal torque ripple. |
You can also select from different input types:
GPIO Inputs: Simple on/off control and state detection.
Serial Communication Ports: Use protocols like UART, SPI, or I2C for advanced control and monitoring.
PWM Inputs: Adjust the duty cycle to control motor speed.
Digital signals in a brushless dc motor driver give you better noise immunity and higher precision. They also make it easier to connect with digital systems, which increases flexibility. For example, you can use digital inputs for precise control in industrial robots or electric vehicles.
Note: Choose a brushless dc motor driver with the control interface that matches your system’s needs and your level of technical experience.
Protection Features
A good brushless dc motor driver should protect your system from common electrical problems. These features help prevent damage and keep your project running smoothly. Look for these essential protection features:
Protection Feature | Description |
|---|---|
Overcurrent Protection | Limits or cuts off output to prevent overheating and motor damage. |
Overvoltage Protection | Monitors input voltage to stop damage from abnormal voltage. |
Overtemperature Protection | Uses sensors to reduce power or shut down if temperatures get too high. |
Short Circuit Protection | Quickly disconnects power in case of a short circuit. |
Phase Loss Protection | Detects phase loss or undervoltage and stops operation to protect the motor. |
You should always check that your brushless dc motor driver includes these features. They help you avoid costly repairs and downtime.
INEED Brushless Gear Motors Compatibility
When you pair an INEED brushless gear motor with a brushless dc motor driver, you must check several compatibility factors. INEED offers a wide range of customizable motors and drivers, so you can find the perfect match for your application. Here is a checklist to help you:
Check the model of your motor.
Verify the voltage specifications of both the motor and the brushless dc motor driver.
Assess the power rating to ensure the driver can handle your load.
Evaluate the load characteristics, such as torque and speed.
Make sure the phase sequence of the motor and driver match.
INEED brushless gear motors work with drivers designed for a range of input and output voltages. You can customize the driver for your specific needs, including gearbox options, shaft design, and sensor types. INEED also provides technical support to help you select the right brushless dc motor driver for your project.
Tip: INEED offers tailored engineering, custom controllers, and integrated driver options. You can request features like encoders, wiring harnesses, and maintenance-free operation for over 25,000 hours.
By following these steps, you can confidently select a bldc motor driver that matches your motor and application. INEED’s focus on quality, customization, and support ensures you get a reliable solution for any industry, from robotics to healthcare.
Brushless DC Motor Driver Features
Integrated vs. External Components
You can choose between integrated and external components when selecting a brushless dc motor driver. Integrated drivers combine the controller and power electronics in one unit. This design saves space and simplifies installation. External drivers allow you to separate the controller from the motor, which gives you more flexibility for upgrades or repairs. Integrated solutions work well for compact devices like home appliances. External setups suit larger systems where you need to adjust or replace parts easily.
Supported Control Algorithms

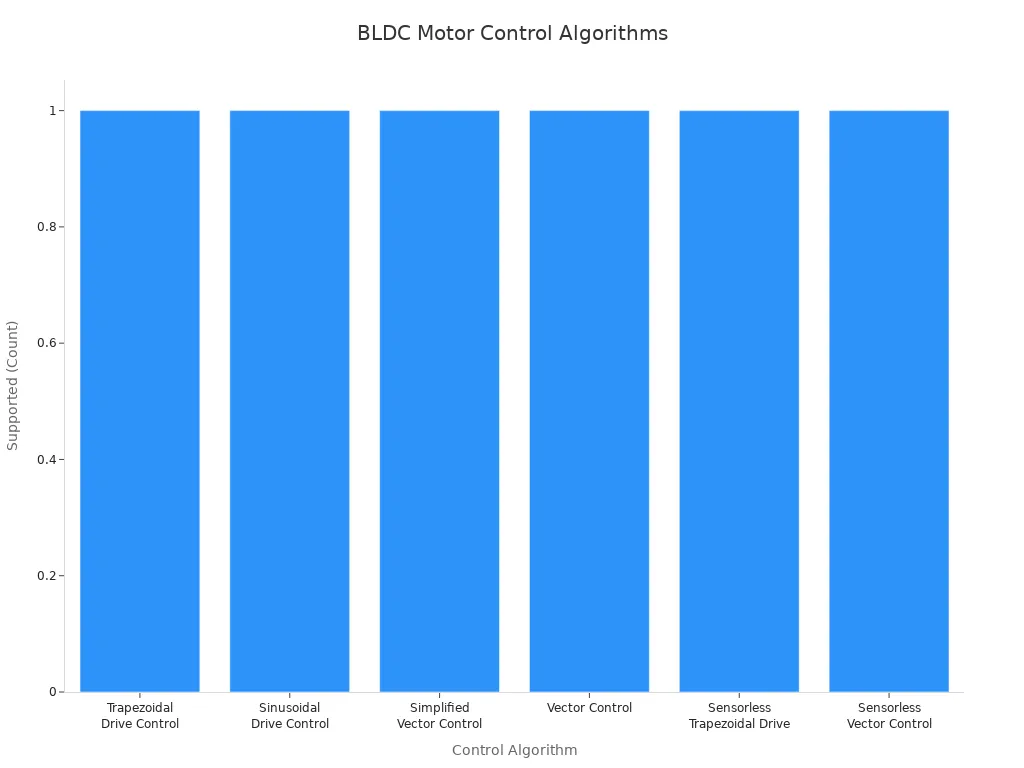

Modern brushless dc motor drivers support many control algorithms. These algorithms help you manage speed, torque, and efficiency. The table below shows common control methods and their features:
Control Algorithm | Motor Type | Torque Controllability | Feedback Sensors | MCU Processing Requirements |
|---|---|---|---|---|
Trapezoidal Drive Control | BLDC | High-Torque Ripple | Hall Sensor | 8-16 bit |
Sinusoidal Drive Control | BLDC, AC | Low-Torque Ripple | Hall Sensor, Encoder | 16-32 bit |
Vector Control | BLDC, AC | Precise Control | Hall Sensor, Encoder | 32 bit |
Sensorless Vector Control | BLDC, AC | Precise Control | Not Required | 32 bit |
Advanced control algorithms like Model Predictive Control and Fuzzy Logic Control improve performance in dynamic environments. These techniques help you achieve smoother operation and reduce torque ripple. You can use them for applications that need precise speed and torque control, such as robotics or medical devices.
Tip: Fuzzy Logic Control adapts to changing loads and uncertainties, making it ideal for brushless dc motors in variable conditions.
Efficiency and Thermal Management
Efficiency is a key feature of brushless dc motors and their drivers. Most brushless dc motor drivers reach efficiency ratings between 85% and 92%. High-end models can achieve up to 95%. Higher efficiency means less heat and lower energy costs. You should always consider thermal management to protect your motor and driver.
Effective thermal management solutions include:
Passive cooling with natural convection.
Active cooling using fans or liquid systems.
Temperature sensors for real-time monitoring.
Thermal cutoff to prevent overheating.
Proper sizing to avoid overload.
Duty cycle management to reduce heat buildup.
These methods help you maintain reliable operation and extend the lifespan of your brushless dc motors.
INEED Brushless DC Motors Example
INEED brushless dc motors stand out for their efficiency and reliability. You can customize these motors for demanding projects. Over 80% of INEED’s projects involve tailored solutions, which optimize performance for each application. The company uses advanced production equipment and strict inspection methods. INEED holds ISO 9001 certification, showing a strong commitment to quality and safety.
You will find INEED brushless dc motors in many industries:
Industry | Applications |
|---|---|
Home Appliances | Air conditioners, refrigerators, electric fans |
Commercial Products | Laser printers, drones, power tools |
Precision Devices | Hard drives, DVD players, Blu-Ray recorders |
Automotive Industry | Electric power steering, headlamp leveling, parking brakes, door lock motors |
You can rely on INEED brushless dc motors for projects that require high efficiency, quiet operation, and long-term reliability.
Selection Checklist & Testing
Step-by-Step Checklist
You can simplify the process of selecting a brushless dc motor driver by following a clear checklist. This helps you avoid mistakes and ensures your system works as expected.
Check voltage and current ratings. Make sure the driver matches your motor’s needs.
Choose the right control method. Decide if you need trapezoidal, sinusoidal, or Field-Oriented Control for your application.
Decide between sensor-based or sensorless operation. Use Hall sensors for precision or go sensorless for simpler setups.
Review application-specific requirements. Think about size, thermal management, and programmability.
Confirm compatibility with your system. Look at duty cycle, PCB design, and thermal management.
Select the correct pwm input options for speed and torque control.
Tip: Always calculate input and output power before making your final choice.
Prototyping and Testing Tips
You should build a prototype before full-scale production. This lets you test the driver and motor together in real conditions. Use pwm signals to adjust speed and monitor how the system responds. Check for overheating, noise, and smooth operation. If you see any issues, adjust your settings or try a different driver.
Test in the same environment as your final application.
Use temperature sensors to watch for overheating.
Record performance data for future reference.
Note: Prototyping helps you catch problems early and saves time later.
Planning for Scalability
When you plan for future growth, you make your project more flexible. Ask yourself if your solution can handle more power or new features later. Look for drivers that support upgrades or higher current ratings. Make sure your system can adapt to new control methods or larger motors.
Choose drivers that allow customization for different applications.
Make sure your design can grow with your needs.
Think about long-term compatibility with new technologies.
Planning ahead ensures your investment lasts and supports future projects.
You can select the best BLDC motor driver by matching technical specs to your motor and application. Always check voltage, current, and control needs. Reliable brands like INEED help you avoid problems and support long-term success.
Quality Checks | What It Guarantees |
|---|---|
Material Checks | Only the best materials are used. |
Lifetime Testing | Motors work well for a long time. |
Key Process Inspections | Motors meet strict performance rules. |
Final Shipment Checks | Products arrive in perfect shape. |
To ensure safety and future growth, remember:
Pick modular designs for easy upgrades.
Choose drivers that support higher voltage or current.
Look for compatibility with many controllers and sensors.
Use programmable options to adapt as your needs change.
INEED offers expert advice, fast support, and flexible customization. This makes them a smart choice for your next project.
FAQ
What is a BLDC motor driver?
A BLDC motor driver controls the speed, direction, and torque of a brushless DC motor. You use it to manage power delivery and ensure smooth operation in your project.
How do I choose the right voltage for my motor driver?
You should match the driver’s voltage rating to your motor’s rated voltage. Always check the datasheet. Using the correct voltage helps you avoid overheating and ensures reliable performance.
Why are protection features important in a BLDC motor driver?
Protection features keep your motor and driver safe from electrical faults. Overcurrent, overvoltage, and thermal protection help you prevent damage and extend the lifespan of your system.
What are common applications of brushless dc motors?
You find these motors in robotics, medical devices, drones, and home appliances. Their efficiency and reliability make them ideal for many industries that need precise control and long service life.
Can I customize a BLDC motor driver for my project?
Yes, you can request custom features like specific control interfaces, encoders, or wiring options. Many manufacturers, including INEED, offer tailored solutions to fit your unique application needs.
