Choosing between inrunner brushless dc motor and outrunner motors depends on your project’s main goals. You will often find inrunner motors best for projects that need extremely high speeds, such as fixed-wing drones or racing models. Outrunner motors deliver higher torque and efficiency at lower speeds, which suits multi-rotor drones and applications with large propellers. INEED offers both motor types for a wide range of needs. As you decide, consider these factors:
Speed
Torque
Size
Noise
Efficiency
Matching these needs to the right motor ensures your project runs at its best.
Key Takeaways
Inrunner motors excel in high-speed applications, making them ideal for racing models and fixed-wing drones.
Outrunner motors provide higher torque at lower speeds, making them suitable for multi-rotor drones and applications requiring stable power.
Consider your project’s specific needs, such as speed, torque, and size, to choose the right brushless motor.
Both motor types offer unique advantages; inrunners are compact and efficient, while outrunners are quieter and provide better cooling.
INEED offers customization options for both motor types, allowing you to tailor them to your project’s requirements.
Quick Comparison
Inrunner vs Outrunner Table
When you compare inrunner and outrunner brushless motors, you see clear differences in how each type delivers power, efficiency, and performance. The table below gives you a quick overview of the main features, using INEED’s brushless motor product strengths as a reference.
Comparison Aspect | Inrunner Brushless Motor | Outrunner Brushless Motor |
|---|---|---|
Torque | Lower torque, needs higher speed for same power | Higher torque at low speeds, ideal for larger loads |
Speed Capability | Achieves very high speeds, perfect for racing or tools | Lower top speed, stable at mid-to-low speeds |
Size & Weight | Compact, high power density, fits tight spaces | Larger volume, lighter for same power, simple structure |
Heat Dissipation | Better cooling, handles continuous high-load operation | Longer heat path, needs attention to temperature rise |
Noise & Vibration | Higher-frequency noise at high speed | Softer sound, quieter at lower speeds |
Efficiency | High efficiency at high speed | High efficiency at low-to-medium speed |
Typical Applications | RC cars, dental tools, industrial automation | Drones, e-bikes, robots, smart home devices |
Cost & Availability | Higher cost, specialized uses | Lower cost, widely available |
Most drone makers choose brushless dc outrunner motors because they offer better efficiency and more power for flight. This makes them the top choice for multi-rotor drones and similar projects.
You should pick an inrunner brushless motor if your project needs high speed and compact size. Outrunner brushless motors work best when you need more torque and efficiency at lower speeds. Both types of brushless motors from INEED give you reliable power and long-lasting performance. You can match the right brushless motor to your needs by looking at your project’s speed, torque, and efficiency requirements.

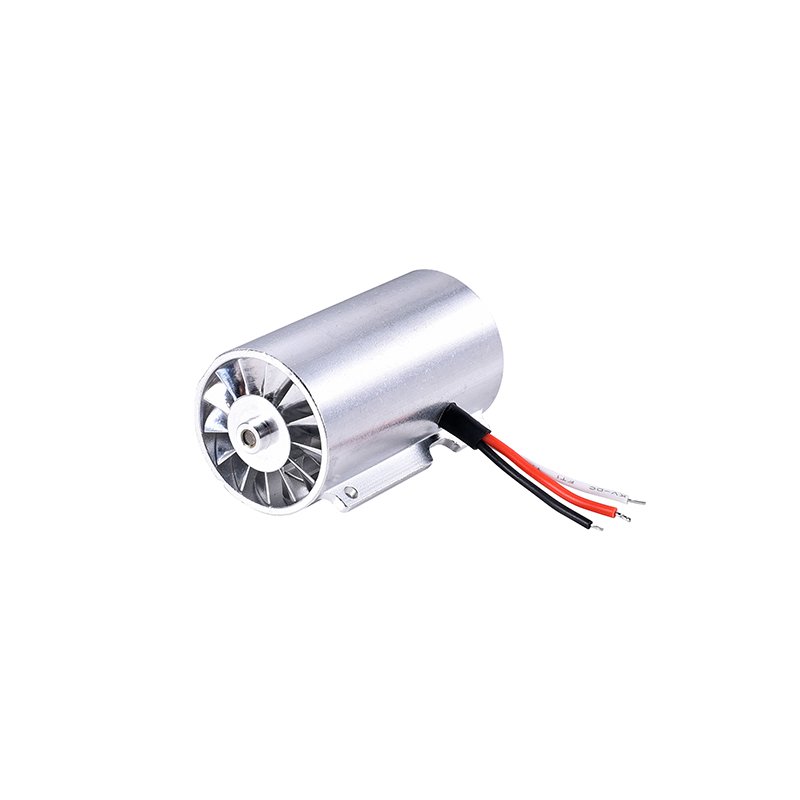

Inrunner Brushless DC Motor
What Is an Inrunner?
You will find that an inrunner brushless dc motor uses a unique design to deliver high-speed performance. The stator sits on the outside and holds several sets of coils. These coils create electromagnetic energy when powered. The rotor, which contains permanent magnets, spins inside the stator. An electronic speed controller sends power to the stator’s windings in a specific order. This process creates a changing magnetic field. The magnetic field interacts with the rotor’s magnets and causes the rotor to spin. This action converts electrical energy into mechanical energy.
You can use inrunner brushless motors in applications that demand compact size and rapid acceleration. INEED offers inrunner brushless dc motor options with advanced features, such as built-in Hall sensors for precise control. You can also request custom designs to match your project’s speed, torque, and installation needs.
The main working parts of an inrunner brushless dc motor:
Stator with multiple coils
Rotor with permanent magnets
Electronic speed controller for power delivery
Changing magnetic field for rotation
Pros and Cons
You should consider the advantages of brushless motors when choosing an inrunner brushless dc motor for your project. These motors offer high speed, compact design, and efficient operation. You will notice that inrunner brushless dc motor models from INEED provide long service life and quiet performance.
Advantages of Inrunner Brushless DC Motors | Disadvantages of Inrunner Brushless DC Motors |
|---|---|
Longer service life due to lack of brushes | Higher cost compared to brushed motors |
More compact design, saving space | Requires additional wiring for electronic commutation |
Higher efficiency with minimal friction | More complex operation requiring motion controllers/drivers |
Higher speed ranges and better acceleration | |
Quieter operation, reducing noise levels |
You will benefit from the high dynamic response and better speed versus torque characteristics. Inrunner brushless dc motor solutions from INEED can be customized for voltage, speed, and shaft design. You can select brushless motor models with built-in sensors or sensorless options, depending on your control needs.
If you need a motor for high-speed tools, RC cars, or medical devices, inrunner motors from INEED give you reliable and efficient performance. You can contact INEED for tailored brushless motors that fit your exact requirements.
Outrunner Brushless Motor
What Is an Outrunner?
You will notice that an outrunner brushless motor has a unique construction. The rotor sits on the outside and rotates with the housing, while the stator remains fixed inside. This design allows the motor to produce higher torque at lower speeds. You often see outrunner brushless motors in multi-rotor drones, aerial photography equipment, and FPV racing setups. The outer rotor configuration helps with cooling and provides smooth thrust output.
Here is a table that shows the main differences between outrunner and inrunner brushless motors:
Feature | Outrunner Brushless Motor | Inrunner Brushless Motor |
|---|---|---|
Rotor Position | Rotates with the housing | Stationary housing with a rotating rotor |
Torque Characteristics | High torque at low speeds | High speeds, lower torque for the same size |
Typical Applications | Multi-rotor drones, aerial photography, FPV racing | Fixed-wing propulsion, high-speed applications |
Efficiency | High overall efficiency, smooth thrust output | High power density, excellent heat dissipation |
Maximum RPM | Lower than inrunner motors | Higher RPM capabilities |
INEED offers a wide range of outrunner brushless motors. You can choose models with different diameters, voltage ratings, and torque outputs. If you need a custom solution, INEED can design a brushless motor to fit your project’s exact requirements.
Pros and Cons
Outrunner brushless motors provide several advantages for your project. You get high torque at low speeds, which is perfect for applications like drones and robots. The larger diameter of the motor allows for better cooling and efficiency. You also benefit from quieter operation, making these motors ideal for smart home devices and consumer electronics.
Here is a table that summarizes the benefits and disadvantages of brushless motors with an outrunner design:
Benefits | Disadvantages of Brushless Motors |
|---|---|
Larger diameter provides higher torque | Larger size may not fit in space-constrained applications |
Outer rotor enhances cooling | Higher moment of inertia leads to slower startup times |
Better efficiency in certain applications | Requires additional protective features due to exposed rotating parts |
You will find that outrunner brushless motors from INEED deliver reliable performance and long service life. You can request customizations for shaft design, gear reduction, and control features. INEED’s engineering team supports you with technical advice and sample motors for prototyping. If your project needs quiet, efficient, and high-torque brushless motors, you can rely on INEED’s solutions.
Side-by-Side Comparison
Speed & Torque
When you compare speed and torque between inrunner and outrunner brushless motors, you see clear differences in how each motor delivers power. Inrunner brushless motors excel at high-speed performance. You can use them in applications that demand rapid acceleration, such as dental handpieces or RC cars. These motors often reach speeds above 50,000 RPM. Outrunner brushless motors focus on torque. You get high torque at lower speeds, which is perfect for drones and robots that need to lift or move heavier loads.
Here is a table that shows the typical performance benchmarks:
Motor Type | Torque Output | Maximum Speed |
|---|---|---|
Outrunner | High torque at low speeds, suitable for large-diameter propellers | Limited maximum speed due to mechanical constraints |
Inrunner | Lower torque per unit current, relies on high speeds for thrust | Can exceed 50–60k RPM, suitable for high-speed applications |
You should choose an inrunner brushless motor if your project needs maximum speed and compact power delivery. Outrunner brushless motors work best when you need strong torque and stable performance at lower speeds. INEED’s brushless motor solutions give you both options, so you can match the motor to your project’s requirements.
Size & Weight
Size and weight play a big role in how you select a brushless motor. Inrunner brushless motors have a compact design. You can fit them into tight spaces, which makes them ideal for medical devices or small automation systems. Outrunner brushless motors usually have a larger diameter but lighter construction for the same power output. This design helps you reduce overall weight in drones and smart home devices.
Inrunner brushless motors from INEED feature high power density and small footprints. You can use them in projects where space is limited.
Outrunner brushless motors offer a simple structure and lighter weight, which helps you optimize your device’s balance and stability.
If you need a motor for a compact device, you should consider an inrunner brushless motor. For applications where weight matters more than size, such as aerial drones, an outrunner brushless motor may be the better choice.
Efficiency & Noise
Efficiency and noise levels affect your project’s overall performance and user experience. Inrunner brushless motors deliver high efficiency at high speeds. You get smooth operation and minimal friction, which leads to longer service life. Outrunner brushless motors provide excellent efficiency at low-to-medium speeds. You benefit from quieter operation, which is important for smart home devices and consumer electronics.
INEED’s brushless motors use advanced electronic commutation. You get reduced mechanical wear and lower noise.
Brushless gear motors from INEED combine high efficiency with quiet performance, making them suitable for healthcare and automation.
You should look for a brushless motor that matches your project’s speed and noise requirements. If you need silent operation, outrunner brushless motors offer a softer sound profile. For high-speed tools, inrunner brushless motors maintain efficiency and keep noise levels low.
Tip: You can request custom brushless motor designs from INEED to optimize efficiency and noise for your specific application.
Cost & Durability
Cost and durability help you decide which brushless motor fits your budget and long-term needs. Outrunner brushless motors usually cost less to acquire and replace. You find a wide price range because of their mature supply chain. However, the exposed housing and magnets make them more susceptible to damage from drops or collisions. Inrunner brushless motors cost more per unit and system. You get better resistance to impact because the stationary housing acts as a protective shell.
Here is a table that summarizes cost and durability:
Motor Type | Cost Characteristics | Durability Characteristics |
|---|---|---|
Outrunner | Lower acquisition and replacement costs; mature supply chain with a wide price range | More exposed housing and magnets; susceptible to damage from drops or collisions |
Inrunner | Higher unit and system costs; focused on specialized scenarios | Better resistance to impact and foreign object intrusion; stationary housing acts as a load-bearing shell |
INEED’s brushless DC motor and brushless gear motor products offer reliable durability and quality control. You can trust these motors to deliver consistent performance over time. If your project faces tough environments, you may prefer the added protection of an inrunner brushless motor. For cost-sensitive applications, outrunner brushless motors provide a budget-friendly solution.
Application Guide
Drones & RC
You often see brushless motors as the top choice for drones and RC vehicles. These motors give you more power, higher efficiency, and longer life than brushed motors. Most modern drones use brushless motors because they deliver the thrust and quick response needed for stable flight and sharp maneuvers. Outrunner brushless motors work best for multi-rotor drones and high-power propeller application projects. They provide high torque at low speeds, which helps lift heavy loads and keep your drone stable in the air.
When you build or upgrade a drone, you should consider these factors:
Motor weight affects how agile your drone feels.
Power and thrust determine how much your drone can lift.
Efficiency impacts flight time and battery use.
Torque and RPM response control acceleration and stability.
INEED offers a range of brushless motor options for drones and RC models. You can select outrunner motors for quadcopters or inrunner motors for high-speed RC cars. If you want to maximize flight time and performance, choose a brushless motor with the right balance of power and efficiency.
Tip: Most drone makers prefer outrunner brushless motors for their ability to deliver strong torque and smooth operation, especially in multi-rotor designs.
Robotics & Automation
Robotics and automation projects need motors that offer precise control, high efficiency, and reliable performance. Brushless motors stand out in these fields because they do not lose steps like stepper motors and operate more quietly. You get more power and efficiency, which is important for robots that must move quickly or handle changing loads.
Key selection criteria for robotics include:
Speed: How fast your robot needs to move.
Torque: The force required to move or lift objects.
Accuracy: The level of precision needed for tasks.
Load variability: How much the load changes during operation.
System complexity: The design and control requirements.
INEED brushless motors have powered many automation solutions. For example, in pool cleaning robots, INEED’s brushless gear motors provide the torque needed to climb stairs and remove debris. These motors also work well in home appliances and automotive systems, where high-speed control and dynamic response are essential.
Application Area | Use Case | Benefit of Brushless Motors |
|---|---|---|
Robotics | Pool Cleaner | High torque, quiet operation, reliable cleaning |
Home Appliances | Washers, Dryers | Accurate speed control, dynamic load response |
Automotive | Fuel Pump Control | Precise, efficient, and durable performance |
You can rely on brushless motors from INEED for robotics and automation projects that demand both power and precision.
Healthcare & Medical Devices
Medical devices require motors that are precise, quiet, and reliable. Brushless DC motors meet these needs with high efficiency, low noise, and long lifespan. You find these motors in dental handpieces, surgical drills, infusion pumps, and diagnostic equipment. For example, INEED’s brushless motor solution for electric dental handpieces delivers constant torque and smooth operation, which improves patient comfort and safety.
When you select a brushless motor for healthcare, you should focus on:
Autoclavability for sterilization.
Understanding torque and load to prevent damage.
Modeling the motion cycle to avoid overheating.
Brushless motors offer high precision and responsiveness, which is essential for medical tools. They also run quietly, which helps reduce stress for patients and staff. The compact design of INEED’s brushless motors allows you to fit them into handheld or portable devices.
Note: INEED’s brushless motors power dental handpieces, surgical drills, ventilators, and even prosthetics, providing reliable and consistent performance in critical healthcare applications.
Smart Home & Consumer
Smart home and consumer devices need motors that are efficient, quiet, and easy to control. Brushless motors excel in these areas. You see them in electric curtains, smart locks, and cordless pool cleaners. INEED’s brushless gear motors, for example, drive intelligent electric curtains with noise levels under 30dB, ensuring quiet operation in homes and hotels.
Important considerations for smart home applications include:
High efficiency to reduce energy costs.
Long lifespan for fewer replacements.
Quiet operation for comfort.
Compact size for easy integration.
Precise control for automation.
INEED brushless motors also power pool cleaners, handling demanding cleaning tasks while maintaining efficiency and reliability. You can integrate these motors into various consumer products, from smart appliances to electric vehicles, to achieve better performance and user satisfaction.
Consideration | Why It Matters |
|---|---|
High Efficiency | Saves energy and reduces costs |
Quiet Operation | Improves comfort in living spaces |
Long Lifespan | Lowers maintenance and replacement needs |
Compact Design | Fits into small or portable devices |
Precise Control | Enables advanced automation features |
You can trust INEED’s brushless motors to deliver the performance, reliability, and quiet operation your smart home or consumer project needs.
Decision Checklist
How to Choose
Selecting the right brushless motor for your project can feel overwhelming, but you can simplify the process by following a clear checklist. Use these steps to match your needs with the best motor type:
Define Your Project Goals
Start by listing what your project needs most. Do you want high speed, strong torque, compact size, or quiet operation? Knowing your main goal helps you focus on the right brushless motor.Compare Performance Needs
Outrunner brushless motors give you higher torque and work best at lower speeds. These motors suit drones, robots, and devices that need steady power. Inrunner brushless motors reach higher speeds and fit projects like RC cars or dental tools. Think about whether your project needs more speed or more torque.Check Space and Weight Limits
If your design has tight space, an inrunner brushless motor’s compact shape may fit better. Outrunner brushless motors often have a larger diameter but weigh less for the same power.Consider Environment and Durability
Inrunner brushless motors offer better impact resistance because of their fixed housing. Both types perform well in different temperatures, but you should check if your project faces tough conditions.Plan for Maintenance and Repairs
Outrunner brushless motors have a simple structure, making repairs like bearing replacement easier. Inrunner brushless motors protect internal parts better, which can help in rough environments.Think About Control and Integration
Changing motor types may require you to recalibrate your flight controller or control system. Always plan for this step when switching between brushless motors.Ask for Support and Samples
INEED’s team can help you choose the right brushless motor. You can request free samples to test in your project. Their experts guide you through selection, integration, and troubleshooting.
Tip: If you have questions about lifespan, wind resistance, or repairs, INEED’s customer service can provide answers and technical support. You can also get help with custom brushless motor designs to fit your unique needs.
By following this checklist, you can confidently select the best brushless motor for your application. INEED’s support and customization services make the process even easier, ensuring your project gets the right solution from start to finish.
You can select the best brushless motor for your project by matching your needs to the strengths of each type. Inrunner brushless motors work well for high-speed tools and compact devices. Outrunner brushless motors excel in applications needing high torque and quiet operation. INEED’s brushless motor product range covers household, industrial, healthcare, and consumer sectors.
Motor Type | Typical Use Cases |
|---|---|
Brushless motor | Appliances, automation, robotics |
Brushless motors | Medical devices, smart home, tools |
You should use the checklist to guide your decision. INEED’s engineers offer technical support, custom brushless motor solutions, and detailed documentation.
Next steps for you:
Learn how brushless motor drivers work.
Determine your application and verify specifications.
Contact INEED for samples, technical support, or custom brushless motors.
FAQ
What is the main difference between inrunner and outrunner brushless DC motors?
You see the rotor inside the stator in inrunner motors. Outrunner motors have the rotor outside the stator. Inrunner motors reach higher speeds. Outrunner motors deliver more torque at lower speeds.
Which motor type should you choose for drones?
You should pick outrunner brushless motors for drones. These motors provide strong torque and stable flight. INEED offers reliable outrunner motors for multi-rotor and aerial applications.
Can you customize brushless DC motors for your project?
You can request custom brushless DC motors from INEED. You choose voltage, speed, shaft design, and control features. INEED’s team helps you match the motor to your project’s needs.
How do you reduce noise in smart home devices using brushless motors?
You select brushless gear motors with quiet operation. INEED’s motors for electric curtains run below 30dB. You improve comfort and reduce noise in smart home environments.
