When you need strong turning force in a small space, look for planetary gear motors that are tough and have the right gear ratio. Think about a robot arm that lifts heavy things or a medical tool that works in small places. In these cases, torque is more important than power. You can see this in things like auto-cocking crossbows and home elevator doors. A planetary gear motor gives strong torque but does not need much space. INEED has good choices for hard jobs. They help you find what you need for your work.
Key Takeaways
Know how torque and power are not the same. Torque is the force that makes things turn. Power tells you how fast work happens.
Pick a planetary gear motor with more torque than you need. This helps your machine deal with heavy loads that may come up.
Choose the best gear ratio for your project. A higher ratio gives you more torque but less speed. A lower ratio gives you more speed but less torque.
Always look at the highest torque the motor can handle. This helps you choose a motor that will not break when you use it.
Think about where the motor will be used. Things like heat and dust can change how well it works, so pick the right one.
Understanding Torque and Power in Planetary Gear Motors
Torque vs. Power Basics
When you pick a planetary gear motor, you hear about torque and power. Torque is the force that turns something around. Power shows how fast work gets done. Torque helps you lift or move heavy things. Power tells you how quickly you can do this job.
Here is a table that explains how torque and power are connected:
Variable | Description |
|---|---|
Pout | Output power in Watts |
Tout | Output torque in Nm |
ωout | Output speed in rpm |
Equation | Pout = (Tout × ωout × 2π) / 60 |
If you want more turning force, you need more torque. If you want something to go faster, you need more power. Many machines need both, but some jobs need more torque than power.
Why Torque Matters in Applications
Lots of devices need strong torque to work well. For example, medical devices like infusion pumps need steady torque to be safe and accurate. Automotive systems, like electric seat adjusters, use torque to move heavy parts smoothly. Industrial equipment, like packaging machines, needs good torque to run all day.
Medical Devices: Infusion pumps, powered surgical tools
Automotive: Electric seat adjustments, power window lifts
Industrial Equipment: Packaging machines, conveyor systems
In robotics and automation, high torque helps move robot arms exactly where you want. Strong torque also helps machines last longer and work better in hard places. More people want small machines with high torque, so the market for robot and automation actuators is growing.
Role of the Planetary Gearbox
A planetary gearbox makes torque stronger. It uses many gears together to share the work. This design lets you use a smaller motor and still get strong torque. The table below shows how a planetary gearbox can make torque bigger:
Gear Type | Teeth Count | Gear Ratio | Torque Multiplication |
|---|---|---|---|
Sun Gear | 16 | 4:1 | Increases torque by 4 times |
Planetary gear systems lower the torque the motor needs to give. They also help the motor stay cool and make the system work better. You see planetary gear motors in robots, healthcare, and factories because they give high torque in a small space. INEED planetary gear motors are special because they are very accurate, have many gear ratio choices, and give strong torque. Their design helps you get the best results, whether you need accuracy, strength, or efficiency.

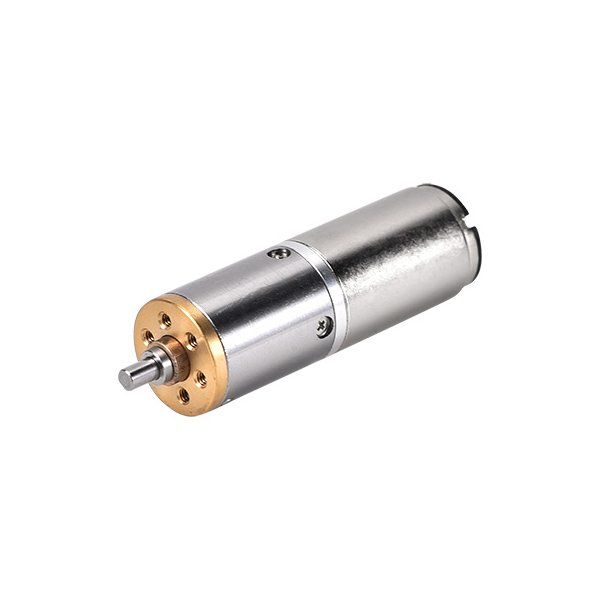

Selecting a High-Torque Planetary Gear Motor
Defining Required Torque and Speed
First, you need to know the torque and speed your project needs. Every machine has a load that must be moved or lifted. You must figure out how much force is needed to turn or move this load. Follow these steps:
Find the load torque. Check the running and peak torque for your device.
Measure the torque. Use the formula: Torque = Force × Radius. This helps you guess the turning force.
Pick a planetary gear motor that gives more torque than you calculated. Make sure it fits your power, speed, and efficiency needs.
Think about the type of load. Some loads stay steady, but others change fast. Decide if your project needs steady or peak torque. Nominal torque is the steady torque a motor can give without getting too hot. If your device needs careful control of torque and speed, choose a motor that can do both.
Industry standards say you should look at your specific project, like robotics, medical devices, or industrial machines. Check the needed output speed, torque, and space. Things like temperature, dust, and moisture can change how well the motor works.
Tip: Always add extra torque to your requirement. This helps your planetary gear motor handle surprises and keeps your system working well.
Using Gear Ratios to Maximize Torque
The planetary gearbox helps make torque stronger. You can change the gear ratio to get the right mix of torque and speed. When you raise torque, speed goes down. When you raise speed, torque goes down.
A higher gear ratio gives more torque but less speed.
A lower gear ratio gives less torque but more speed.
The relationship goes in opposite directions.
For most factories, the best gear ratio for single-stage planetary gear systems is between 4:1 and 8:1. This range gives good performance, efficiency, and long gear life. Multi-stage planetary gearboxes can give even more torque, but efficiency drops if the ratio is over 10:1. Helical gears with bigger angles can boost torque by up to 20% and make less noise.
Pick the right gear ratio for your project. If you need lots of torque in a small space, choose a ratio that fits your load and speed. This helps you get the best results from your planetary gear motor.
Evaluating Maximum Torque Ratings
Check the maximum torque rating for each planetary gear motor. This rating shows the highest torque the motor can handle without slipping or breaking. Makers test motors in different ways:
Testing Method | Purpose |
|---|---|
Torque Testing | Checks the highest torque the motor can handle without slipping. |
Electrical Performance | Makes sure motors meet power, speed, and torque needs. |
Durability Testing | Tests how motors work in tough conditions for long life. |
Endurance Testing | Checks how motors handle changes in temperature and humidity. |
INEED planetary gear motors show torque ratings under set conditions. Compare stall, rated, and peak torque values. Change these values to the same unit for easy comparison. This helps you pick the motor that fits your torque needs and gives strong performance.
Note: Always check if the motor can give maximum torque for your load and environment. Choose motors with low backlash if you need careful movement.
Translating Torque Needs into Catalog Filters
You can use catalog filters to find the best planetary gear motor for your project. Start by getting correct motor details from datasheets. Calculate the needed torque using this formula:
T = 9550 × P / n
Where T is torque, P is power, and n is speed in RPM.
Change for gear ratio and efficiency. Think about the load and environment. Use a torque calculator with exact numbers and add safety factors.
The table below shows common catalog filter choices:
Filtering Option | Details |
|---|---|
Motor Type | DC Planetary Gearmotors |
Voltage | 12, 24, 90, 130, 180VDC |
Speed | 0.5 – 475 RPM |
Torque | 3.5 – 950 in-lb rated torque |
Frame Size | 60, 80, 108 mm |
Gear Ratios | 5:1 – 1000:1 standard ratios |
Think about these technical needs:
Torque needs: Know your highest and lowest torque.
Speed and gear ratio: Pick the output speed and the right ratio.
Motor size and power: Make sure the motor fits your setup.
Efficiency and precision: Choose motors that work well and control carefully.
Working conditions: Check temperature and humidity.
Mounting options: Make sure the motor fits your setup.
Budget: Balance how well it works and the cost.
Manufacturer reputation: Pick a trusted supplier like INEED.
Customization: Look for choices that fit your needs.
Buying strong and efficient planetary gear motors saves energy and makes your system last longer. DC motors turn more electrical energy into mechanical energy, so they work better. Good motors keep speed and torque steady, which is important for automation projects.
Reminder: Always match your torque and power to your load and project. This makes sure your planetary gear motor works well and lasts a long time.
Application Considerations for INEED Planetary Gear Motors
Compact Solutions: 6mm Planetary Gear Motor
Sometimes, you need strong motors in small devices. The 6mm planetary gear motor is great for tiny spaces. It uses a planetary gearbox to make torque stronger. The motor stays small but gives good power. You get smooth and accurate motion control. This is important for robots and smart gadgets. The planetary gearbox also makes the motor work up to 30% better than regular motors. These motors are good for medical tools. They are quiet and steady, which is important in hospitals. The small size lets you build lighter products without losing strength.
Efficiency: The planetary gearbox spreads torque evenly.
Compactness: The small size fits tight spaces.
Noise Reduction: Quiet operation helps in sensitive environments.
Durability and Precision with Metal Gearbox
You want your machines to last and work well. INEED’s metal planetary gearbox uses strong materials like hardened steel and tough alloys. These materials do not wear out fast. They help the motor last a long time. The design keeps backlash low. This means your machines stay accurate. The table below shows how different materials change how long gears last and how much weight they can hold:
Gear Material | Durability | Load Capacity |
|---|---|---|
Steel | High | High |
Brass | High | High |
Plastic | Low | Low |
A metal planetary gearbox needs less fixing and lasts longer. You can trust these motors for hard jobs in factories.
Industry Examples: Healthcare, Construction, and More
INEED planetary gear motors are used in many places. In healthcare, they power oral irrigators and body warmers. These motors are quiet and give steady torque in small devices. In construction, they help land survey tools work with high precision and low backlash. Consumer electronics use these motors for projects that need power and small size. You can change your motor for special needs. You can pick custom shafts, gear ratios, or encoders. More than 80% of automation projects use custom motors to fit special jobs. Low noise and high efficiency help your devices last longer and save energy. You get steady performance for all your factory needs.
Tip: Always match your planetary gearbox and motor features to your project. This helps you get low backlash, high precision, and long-lasting results for your machines.
You can pick the right planetary gear motor for strong jobs by following easy steps. First, look at things like torque, radial and axial loads, how exact it is, noise, gearbox setup, and how it works in different places. Use this checklist to help you:
Rated output torque
Maximum permissible torque
Gear ratio
Backlash
Torsional rigidity
Efficiency
Service factor
You need to match the motor’s details to what you really need. Do not use the wrong gear ratio, the wrong oil, or let the motor get too hot. INEED gives custom choices for speed, torque, gearbox, shaft, connectors, and encoders. Their support team helps you get the best power and performance for your job. Good suppliers make you feel sure about quality and trust. You can save energy, make machines last longer, and help your work run better by making smart picks.
Tip: Always check if the supplier is trusted and ask for help with custom planetary gear motor choices. This makes sure your device has the right power and lasts a long time.
Impact Area | Description |
|---|---|
Energy Waste | Wrong ratios can waste $5,000-$50,000 in power each year. |
Equipment Longevity | Bad load matching can make parts wear out 42% faster. |
Operational Efficiency | Wrong ratios can make each item cost more and use more power. |
You can look at INEED’s planetary gear motors for your strong turning force needs. Their motors give steady power and are small but work well.
FAQ
What makes a planetary gearbox different from other gearboxes?
A planetary gearbox has many gears that work together. This setup spreads out the work. It gives you more torque and smoother movement. The system is small and fits in tight places. Many machines use this gearbox when they need strong turning force.
How do I choose the right planetary gearbox for my project?
First, check how much torque and speed you need. Think about what you want your machine to do. Pick a planetary gearbox with the best gear ratio. Make sure it matches your device’s needs. You can ask INEED for help if you need a special gearbox.
Why does a planetary gearbox increase output torque?
A planetary gearbox makes the input force stronger. The gears inside share the work. This means you get more torque from the same motor. The output stays smooth and steady. That is why these gearboxes are good for tough jobs.
Can a planetary gearbox handle high output speeds?
You can use a planetary gearbox for fast output speeds. The design keeps the movement smooth. It also makes less noise and gives you better control. The gear ratio changes how fast the output is. Always check the speed rating before you pick a gearbox.
Where do you use planetary gearboxes with high output?
People use planetary gearboxes in robots, medical tools, and factory machines. These machines need strong force and small size. The planetary design gives you high torque. You get steady movement in many types of work. The gearbox helps your machine last longer and work better.
