You see a worm gearbox at work when a screw-shaped gear (the worm) turns against a toothed wheel (the worm wheel), transferring motion and reducing speed at a right angle. This system creates high torque and often prevents the output from moving backward, a feature called self-locking. Worm gearboxes accounted for 15% of global industrial gearbox demand in 2023 because you can rely on their compact, powerful design for applications like conveyor systems and elevators. INEED supplies trusted worm gear motors for industries that need precise, durable solutions.
Key Takeaways
Worm gearboxes provide high torque and speed reduction, making them ideal for applications like elevators and conveyors.
The self-locking mechanism prevents reverse motion, ensuring safety in critical applications where loads must remain secure.
Worm gearboxes feature a compact design, allowing installation in tight spaces while operating quietly, which is essential for noise-sensitive environments.
Customization options are available to tailor worm gearboxes to specific project needs, enhancing performance and efficiency.
Proper lubrication is crucial for maintaining efficiency and longevity, reducing friction and heat generation in worm gearboxes.
What Is a Worm Gearbox
A worm gearbox is a special type of mechanical device that helps you control speed and direction in machines. You find a worm gearbox in places where you need to transfer motion at a right angle and create high torque. This unique design makes worm gearboxes popular in many industries, especially when you need reliable and compact solutions.
Main Components
You can break down a worm gearbox into several main parts that work together to deliver smooth and powerful motion:
Worm Shaft: This is the input shaft shaped like a screw. When you turn the worm shaft, it drives the rest of the gearbox.
Worm Gear (Worm Wheel): This large gear meshes with the worm shaft. It usually sits at a right angle to the worm and receives the motion.
Bearings: These support both the worm shaft and the worm gear, helping them spin smoothly and handle heavy loads.
Housing and Seals: The housing keeps all the parts in place, protects them from dust and water, and helps with heat dissipation. Seals keep the lubricant inside.
Lubrication: An oil bath or grease inside the housing reduces friction and wear, making the gearbox last longer.
Tip: The worm shaft is often made from hardened steel for strength, while the worm gear uses softer metals like bronze or cast iron. This combination reduces wear and keeps the gearbox running smoothly.
Basic Operation
When you use a worm gearbox, you start by rotating the worm shaft. The screw-like shape of the worm shaft engages the teeth of the worm gear. As the worm turns, it moves the worm gear at a right angle. This setup allows you to achieve a high reduction ratio, which means you can turn a fast input into a slow, powerful output. The number of threads on the worm and the teeth on the worm gear decide how much the speed drops and how much torque you get.
Worm gearboxes stand out because they can deliver high torque and often prevent the output from moving backward. The housing keeps everything aligned and protected, which is important for long-term performance. You see worm gearboxes in applications where you need reliable, quiet, and compact power transmission.
INEED specializes in manufacturing worm gear motors that use these principles. You get high-quality, customizable solutions for your projects, whether you need precision, durability, or both.
How Worm Gearboxes Work
Motion Transfer
You see motion transfer in a worm gearbox when the worm gear acts like a screw and pushes against the teeth of the worm wheel. This process starts when you rotate the worm shaft. The worm gear’s helical shape lets it slide along the worm wheel’s surface, creating a smooth transfer of motion at a right angle. This unique setup is why you choose a worm gearbox for applications where you need to change the direction of force and achieve reliable power transmission.
Let’s break down the physical principles behind motion transfer in worm gearboxes:
Kinematics and Dynamics: The worm gear works as a helical inclined plane. When you turn the worm, it moves the worm wheel by sliding contact, not rolling.
Torque Transmission and Gear Ratios: You get high torque multiplication because the gear ratio depends on the number of starts on the worm and the number of teeth on the worm wheel. This ratio lets you control how much force you deliver to the output.
Self-Locking Principle: The friction between the worm and worm wheel prevents the worm wheel from driving the worm backward. This feature is essential for safety in many machines.
Heat Generation and Energy Efficiency: Sliding contact produces heat. You need proper lubrication to reduce energy loss and keep the gearbox running smoothly.
You benefit from this motion transfer because it allows you to control heavy loads with precision. The worm gear reducer design makes it possible to achieve large speed reduction and high torque output in a compact space.
Speed Reduction
You rely on worm gearboxes for speed reduction because they can turn fast input speeds into slow, powerful output. The worm gear’s design lets you achieve gear ratios that are much higher than other gearbox types. For example, you often see ratios like 40:1, 20:1, or even above 300:1 in industrial worm gearboxes. This means the worm must turn many times to move the worm wheel once, giving you precise control over speed and torque.
Here’s why speed reduction matters in worm gearboxes:
You need speed reduction to match the output speed to your application’s requirements. If you want to lift a heavy load or move a conveyor slowly, a worm gearbox gives you the control you need.
The gear ratio directly affects both speed reduction and torque multiplication. Higher ratios mean greater reduction and more torque at the output.
You see worm gearboxes used in places where large speed reduction is necessary, such as elevators, conveyors, and heavy machinery.
Gear Ratio (i) | Efficiency (η) | Input Speed (n1) |
|---|---|---|
5 | 96% | 1500 min-1 |
High Ratio | < 50% | N/A |
Note: Worm gearboxes have an efficiency range of 50% to 90%. Spur and helical gearboxes are usually more efficient, especially at lower gear ratios. You trade some efficiency for the benefits of high torque and self-locking ability.
Self-Locking Mechanism
You depend on the self-locking mechanism in worm gearboxes when you need to prevent the output from moving backward. This feature is possible because of the unique angle and friction between the worm and worm wheel. When the lead angle of the worm is smaller than the friction angle, the system locks. The worm gear cannot be driven by the worm wheel, which keeps your load secure.
Why does self-locking matter?
You need self-locking ability in applications where safety is critical. For example, elevators and lifts use worm gearboxes to hold loads in place when the motor is off.
The self-locking design relies on the transmission ratio, friction characteristics, and the helix angle of the worm. If the coefficient of friction is higher than the tangent of the worm’s lead angle, the gearbox locks automatically.
You see this feature in conveyors, automotive systems, and industrial actuators. It prevents reverse movement and keeps your equipment stable.
Tip: The self-locking ability of worm gearboxes is most effective when the worm gear is static. You get peace of mind knowing your machinery will not slip or move unexpectedly.
Why choose a worm gearbox for your project?
You get precise motion transfer, reliable speed reduction, and a built-in self-locking mechanism. These features make worm gearboxes ideal for applications where you need safety, control, and high torque output.
Worm Gearbox Features by INEED
High Torque Output
You choose INEED worm gearbox solutions when you need high torque in compact size. The worm gear drive design lets you handle heavy loads with ease. You get large single-stage reduction, which means you achieve high torque output without needing multiple gear stages. This matters when you want reliable performance in demanding applications. The worm gear reducer multiplies force, so you can lift, move, or hold objects securely. You see the difference in output torque and durability when you compare INEED worm gearboxes to others.

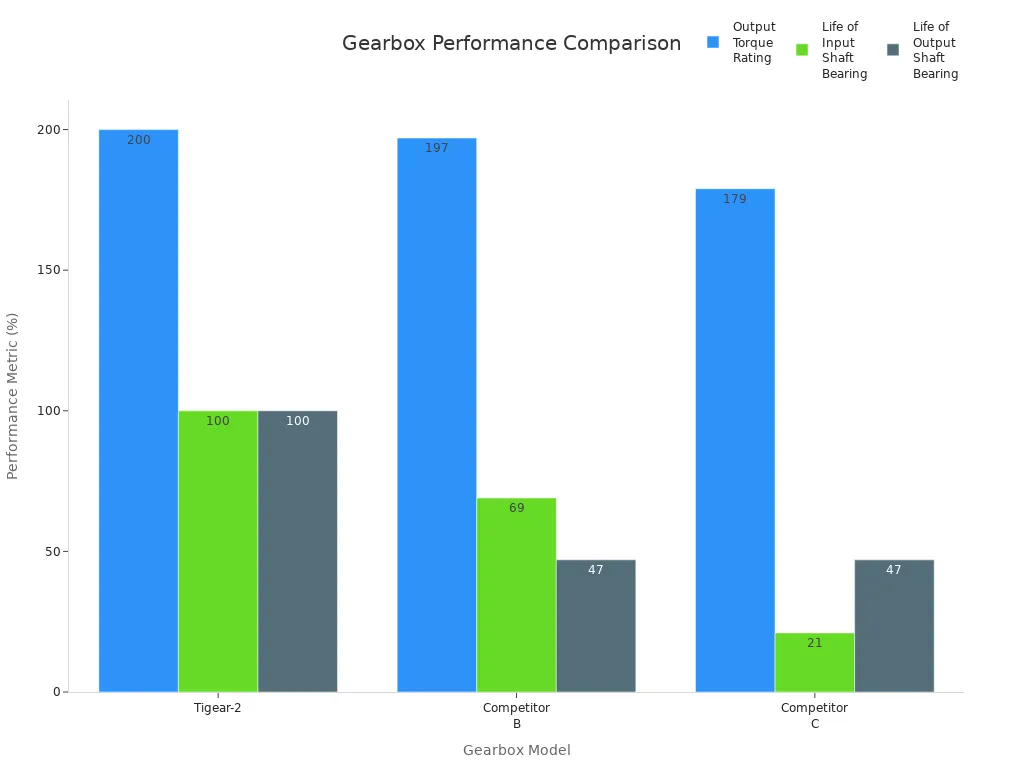

Feature | Tigear-2 | Competitor B | Competitor C |
|---|---|---|---|
Output Torque Rating | 200% | 197% | 179% |
Life of Input Shaft Bearing | 100% | 69% | 21% |
Life of Output Shaft Bearing | 100% | 47% | 47% |
Wear After 500 Hours | None | Noticeable | Noticeable |
You benefit from high torque output because it gives you confidence in the gearbox’s ability to perform under stress. You avoid frequent maintenance and enjoy longer service life.
Compact and Quiet Design
You want a worm gearbox that fits into tight spaces and runs quietly. INEED worm gearboxes feature a compact design that allows flexible installation. You reduce vibration, which leads to quieter operation. The worm gear’s low-speed motion and high torque output further minimize noise. You notice the difference in environments where silence matters, such as medical devices or robotics.
The compact design lets you install the gearbox in limited spaces.
You experience less vibration, which means quieter operation.
High torque output at low speed helps reduce noise even more.
You choose INEED worm gearboxes when you need reliable, quiet, and space-saving solutions.
Customization Options
You need a worm gearbox that matches your specific requirements. INEED offers extensive customization options for worm gear motors. You can tailor dimensions, internal structures, and technical parameters to fit your project. You add accessories like encoders to enhance functionality. More than 80% of INEED’s projects involve custom solutions, so you know they can meet your industry’s needs.
Customization Aspect | Description |
|---|---|
Dimensions | Tailored sizes to fit specific applications. |
Internal Structures | Custom designs to enhance performance based on project requirements. |
Technical Parameters | Adjustments in specifications to meet unique operational needs. |
Additional Accessories | Options for encoders and other components to enhance functionality. |
You rely on INEED’s quality control and customization expertise to get a worm gear reducer that works for you. You get high torque, large single-stage reduction, and high torque in compact size, all designed for your application.
Tip: You can contact INEED for custom worm gearboxes that deliver high torque and fit your exact specifications.
Worm Gearbox Applications
Typical Applications
You see worm gearboxes used in many industries because they solve problems that require high torque, compact design, and reliable speed reduction. You choose a worm gearbox when you need to move heavy loads, control motion precisely, or keep equipment safe from back-driving. These gearboxes fit into tight spaces and work quietly, making them ideal for environments where noise and size matter.
Here are some typical applications for worm gearboxes:
Manufacturing: You use worm gearboxes in assembly lines and automated machinery to control speed and direction.
Construction: You rely on worm gear reducers in hoists and lifts for safe, stable movement of materials.
Packaging: You find worm gearboxes in packaging machines that need precise motion and speed control.
Agriculture: You use worm gearboxes in equipment like grain elevators and conveyors for reliable operation.
Transportation: You see worm gearboxes in conveyor systems and vehicle lifts, where high torque and self-locking features are essential.
Mining: You depend on worm gearboxes for heavy-duty machinery that requires strong torque and shock resistance.
Worm gearboxes improve performance in conveyor systems and material handling equipment. You benefit from their ability to transmit high torque, which helps move heavy materials efficiently. Their compact design lets you install them in confined spaces. The self-locking feature prevents loads from moving backward, which keeps your operations safe. You also get smooth operation and shock resistance, which means your equipment lasts longer.
You often choose worm gearboxes for elevator and lift mechanisms. The table below shows why they work so well in these applications:
Advantage | Description |
|---|---|
High Torque Output | You move heavy loads with confidence. |
Compact Design | You fit the gearbox into limited spaces. |
Self-Locking Feature | You keep lifts and hoists secure without extra brakes. |
Smooth Operation | You enjoy quiet, reliable performance in machinery. |
You keep your equipment safe because the gear system does not move under external load when the motor stops. This makes worm gearboxes ideal for lifts and hoists.
Smart Lockbox Solution
You need reliable security in smart lockboxes, and that is why you choose INEED’s 370 worm gear motor. This solution gives you high torque for smooth bolt retraction, even with reinforced doors. The compact design fits into slim lock mechanisms, so you do not need extra space. You benefit from self-locking security, which prevents forced back-driving and keeps locks secure without extra brakes.
INEED worm gear motors operate quietly, with noise levels below 50dB. You get a long lifespan rated for over 50,000 cycles, which suits high-traffic doors. The motor holds position without continuous power, so you avoid power drain and improve reliability. You prevent tampering or forced entry, ensuring your lockbox stays secure.
Feature | Description |
|---|---|
High Torque | Smooth bolt retraction under heavy load. |
Compact Design | Fits into slim smart lock mechanisms. |
Self-Locking Security | Prevents forced back-driving, keeps locks secure. |
Quiet Operation | Operates at less than 50dB, ideal for noise-sensitive environments. |
Long Lifespan | Rated for 50,000+ cycles, suitable for high-traffic doors. |
No Power Drain | Holds position without continuous power. |
Reliable Locking | Prevents tampering or forced entry. |
You choose INEED worm gear motors for smart lockboxes because you want security, reliability, and long-term performance. These applications show why worm gearboxes remain essential in modern security solutions.
You choose worm gearboxes because they deliver high efficiency, compact size, and reliable torque. These gearboxes offer several advantages:
Compact design fits tight spaces.
High torque output supports heavy loads.
Self-locking keeps your equipment stable.
Quiet operation suits noise-sensitive areas.
INEED worm gearbox solutions give you high efficiency and customization for any project. You get proven performance in demanding environments. When you need a dependable, high-torque drive, INEED helps you achieve your goals.
FAQ
Why should you choose a worm gearbox for high torque applications?
You select a worm gearbox because it delivers high torque in a compact design. The gearbox multiplies force, making it ideal for lifting, moving, or holding heavy loads. You benefit from reliable performance and increased efficiency in demanding environments.
Why does a worm gearbox offer better self-locking than other types?
You rely on a worm gearbox for self-locking because its design prevents reverse motion. The friction between the worm and wheel keeps loads secure. You avoid unwanted movement, which improves safety and efficiency in your equipment.
Why do you see worm gearboxes in noise-sensitive environments?
You use a worm gearbox in quiet settings because it operates smoothly and reduces vibration. The gearbox design minimizes noise, making it perfect for medical devices, robotics, and offices. You achieve efficiency without disturbing your surroundings.
Why is efficiency important when selecting a worm gearbox?
You focus on efficiency because it affects energy use and performance. A worm gearbox with high efficiency saves power and reduces heat. You get more output from less input, which lowers costs and improves reliability in your system.
Why do you need customization for your worm gearbox?
You need customization to match your gearbox to specific requirements. Custom gearboxes improve efficiency and fit your project perfectly. You choose dimensions, accessories, and technical parameters, ensuring your gearbox delivers the best results for your application.
