Selecting the right 24V DC gear motors can be challenging. Opting for the incorrect one might lead to energy waste, increased costs, or system failures. Simplifying the selection process helps you save time and enhance efficiency.

Fun fact! A 24V DC gear motor winding allows it to operate at higher speeds while consuming less power, making it ideal for industrial applications.

Here’s what makes these 24V DC gear motors stand out:

• They consume up to 20% less energy compared to AC motors.

• Brushless 24V DC gear motors have a lifespan of 40,000 hours—10,000 hours longer than AC motors.

Understanding your requirements, aligning specifications, and evaluating performance are crucial steps in the selection process.

Key Takeaways

• Picking the right 24V DC gear motor saves energy and money. Match the motor’s power and speed to what you need.

• 24V DC gear motors work well in many fields like cars, planes, and medical tools. They are strong and work efficiently.

• Know why power, speed, and voltage matter when choosing a motor. These things affect how well the motor works for your job.

• Check for good signs like expert makers and strong materials. A good motor saves time and money on fixing problems.

• Take care of your motor by cleaning and oiling it often. This helps it last longer and work its best.

1. Applications of 24V DC Gear Motors

Industries that use gear motors

Many industries need gear motors for their work. These include:

• Industrial Automation: Automation is growing fast, making up 28% of the micromotor market by 2029.

• Automotive: Electric and hybrid cars use 24V DC gear motors for windows and seats.

• Aerospace and Defense: These fields depend on strong motors for advanced systems.

• Medical Devices: These motors are key for accurate and reliable medical tools.

In 2023, 24V DC brushless gear motors made up 35% of the market. This shows their importance in factories and robotics.

Tasks needing exact torque and speed

24V DC gear motors are great for jobs needing controlled torque and speed. For example:

• Industrial Applications: They run conveyor belts, robotic arms, and packaging machines.

• Automotive Systems: They help with electronic throttle control and power steering.

• Consumer Electronics: Devices like printers and vending machines use these motors for smooth work.

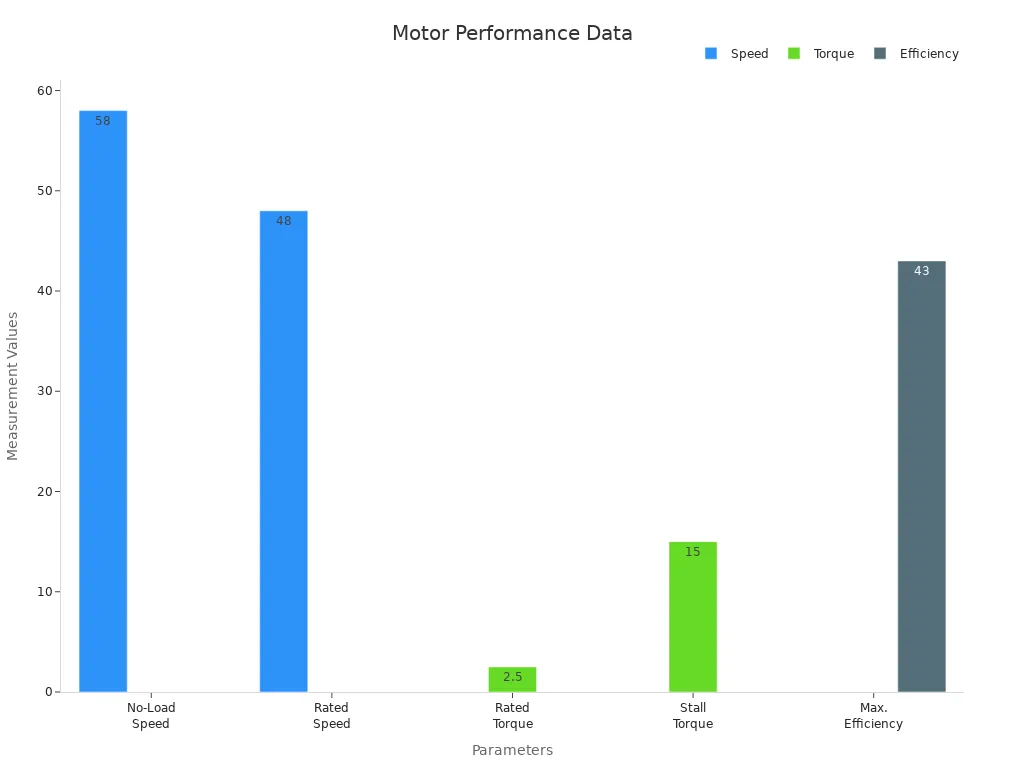

The table below shows how a high torque gear motor performs:

Why 24V DC gear motors are useful

24V DC gear motors work well in many areas. Their small size and energy savings lower costs. They also give strong torque at slow speeds, which is good for heavy tasks.

The table below lists the benefits of these motors in different industries:

Knowing these uses shows why 24V DC gear motors are popular for jobs needing precision, strength, and efficiency.

2. Selection Criteria for 24V DC Gear Motors

Important factors: torque, speed, and voltage

Picking a gear motor means knowing how torque, speed, and voltage work together. These three things affect how well the motor works for your needs.

• Torque: Torque shows how much weight the motor can move. Heavy tasks, like lifting big objects, need more torque.

• Speed: Speed is measured in RPM (revolutions per minute). Jobs needing accuracy often use slower speeds with higher torque.

• Voltage: Voltage changes the motor’s power. Raising voltage from 36V to 48V increases power by 33%, without changing torque.

Tip: Check the controller’s current limit. It sets the highest torque, no matter the voltage.

Matching motor specs to your needs

To pick the right motor, match its features to your job. Different parts help the motor work better:

Steps to make it easier:

1. Decide what torque and speed you need.

2. Share your job details with the motor maker.

3. Make sure the motor fits your exact needs.

Checking motor quality and reliability

Good motors save time and money on repairs. Look for these signs of quality:

• Manufacturer Expertise: Pick a company known for making great motors.

• Material Durability: Strong materials help the motor last longer.

• Testing Standards: Motors tested in tough conditions work better over time.

By focusing on these points, your 24V DC gear motor will work well. Whether it’s for a conveyor belt or a high torque motor, it will deliver steady results.

3. Performance of 24V DC Gear Motors

Torque and speed trade-offs

When picking a gear motor, knowing torque and speed is key. More torque usually means less speed, and the opposite is true too. For example, motors with higher gear ratios give more torque but move slower. These are great for heavy jobs like lifting or moving big objects. Motors with lower gear ratios are faster but have less torque. These work well for tasks needing quick and precise movements.

The table below shows how gear ratios affect torque and speed:

By looking at these numbers, you can find the right motor for your job.

Efficiency and energy consumption

Efficiency is important for how well a motor works. Good motors turn electricity into movement without wasting much energy. This saves power and lowers costs. To check efficiency, look at performance charts like torque-speed and efficiency-power graphs.

1. Torque-Speed Curves: These show how torque changes as speed increases.

2. Efficiency and Power Curves: These graphs show how well the motor uses energy.

3. Best Performance Points: Running the motor at its best spot saves energy and lasts longer.

Using an efficient motor saves energy and keeps it working well for a long time.

Durability and maintenance considerations

Durability matters for motors used in tough conditions. A strong motor reduces breakdowns and repair costs. Things like cooling, good materials, and reducing interference help motors last longer.

The table below lists key points about durability and maintenance:

Focusing on these factors helps your motor work well and need less care.

Picking the right 24V DC gear motors is simpler with good questions. Start by thinking about how the motor fits your job. Check if it meets the torque and speed needed. Then, look at the motor’s features to see if they match your needs. Lastly, review its efficiency and strength to ensure it lasts long.

Choosing a motor that fits your needs gives better results. Focus on torque, speed, and quality for the best performance. This also helps lower repair costs over time.

Pro Tip: Tell manufacturers about your job to get custom motor advice.

FAQ

1. Why are 24V DC gear motors better than AC motors?

24V DC gear motors use less energy and give better speed control. They are smaller, quieter, and great for precise tasks.

Tip: Choose DC motors for jobs needing efficiency and long-lasting use.

2. How can I figure out the torque needed for my job?

To find torque, use this formula:
Torque (Nm) = Force (N) × Distance (m).
Know the load’s weight and how far it is from the motor. This helps you calculate the torque required.

3. Are 24V DC gear motors good for high-speed tasks?

Yes, but pick a motor with a low gear ratio. High-speed jobs need motors with less torque and more RPM. Always check the motor’s speed details before buying.

4. How should I take care of a 24V DC gear motor?

Clean the motor often and check for worn-out parts. Lubricate moving parts when needed. Keep it cool by ensuring good airflow.

Note: Follow the maker’s care tips for the best results.

5. How long does a 24V DC gear motor last?

Brushless 24V DC gear motors can run for up to 40,000 hours. Proper care and using them correctly can make them last even longer.

Pro Tip: Don’t overload the motor to keep it working well.
