You encounter electric motors and gears every day. The main categories include AC motors, DC motors, and specialized gear systems like spur, planetary, and worm gears. AC motors hold over 70% of the market, powering devices from irrigation pumps to robotics. Spur gears make up 28.6% of gear motor use, valued for cost efficiency and reliability. Check the table below for a quick comparison of electric motors and gears in terms of efficiency, torque, and size.
Type | Efficiency | Torque | Size |
|---|---|---|---|
AC electric motors and gears | Higher | More powerful | Smaller |
DC electric motors and gears | Lower | Less torque | Larger |
INEED’s Small gear motor combines compact size and high torque, making it perfect for space-limited applications. You see electric motors and gears in consumer electronics, industrial machinery, and everyday tools.
Key Takeaways
Electric motors come in two main types: AC and DC. AC motors are efficient for large machines, while DC motors excel in precision applications.
Coreless DC motors are lightweight and efficient, making them ideal for devices needing quick response times, like smartphones and medical equipment.
Gear motors, including spur, planetary, and worm types, enhance torque and control in machines. Choose the right type based on your application needs.
When selecting a motor, consider factors like torque, efficiency, and space. Custom options can help tailor motors to specific requirements.
Electric motors and gears are essential in everyday devices and industrial applications, improving performance and reducing maintenance costs.
Types of Electric Motors
Electric motors come in many forms, each designed for specific tasks. You will often see two main categories: AC motors and DC motors. AC motors use alternating current and power large machines, fans, and pumps. DC motors use direct current and work best in devices that need precise control or run on batteries. Within these categories, you will find several different types of electric motors, each with unique features.

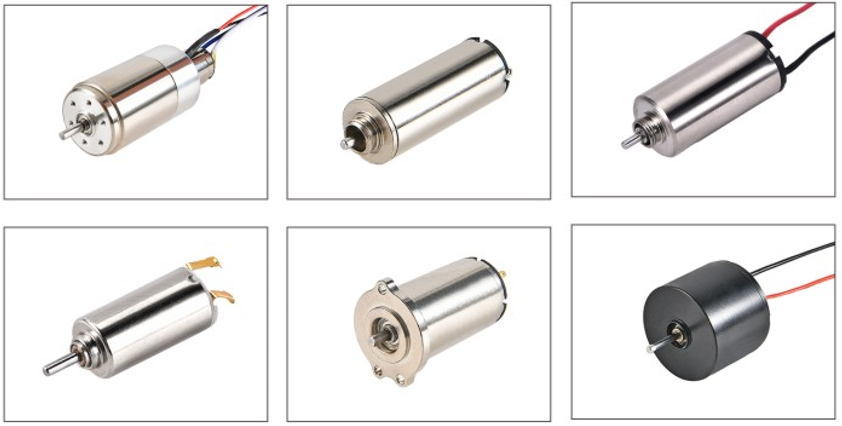

Coreless DC Motors
Coreless DC motors stand out because they do not have an iron core in the rotor. This design makes them lightweight and allows for quick response times. You will find these motors in devices that need high efficiency and precise control.
Key Features of Coreless DC Motors:
Lightweight and compact
High efficiency and low current use
Reduced noise during operation
Smooth rotation without cogging
Here is a comparison to help you understand how coreless DC motors differ from other DC motors:
Characteristic | Coreless DC Motors | Other DC Motors |
|---|---|---|
Design | Lightweight, no iron core | Typically heavier, with iron core |
Efficiency | High efficiency | Varies, generally lower |
Noise | Reduced noise | Can be noisier |
Current Consumption | Lower current consumption | Higher current consumption |
Speed | Slower to achieve very high speeds | Can achieve high speeds more quickly |
Lifespan | Depends on bearing quality | Generally longer lifespan |
Applications | Robotics, medical devices | Broader range of applications |
You will often see coreless DC motors in:
Smartphones, cameras, and gaming consoles
Surgical robots, infusion pumps, and ventilators
UAVs and satellite systems
Power windows and seat adjusters in vehicles
If you need a compact and efficient solution for a space-limited device, INEED’s Small gear motor uses this technology to deliver high torque and precision.
Iron Core DC Motors
Iron core DC motors use a rotor with an iron core. This structure gives them higher inertia, which means they respond more slowly but can deliver more torque. These motors work well in applications where you need steady power and can handle a bit more weight.
Feature | Iron Core DC Motors | Coreless DC Motors |
|---|---|---|
Inertia | Higher due to the weight of the iron core | Lower due to the lightweight rotor |
Response Time | Slower due to higher inertia | Faster due to reduced inertia |
Power Loss | Can experience iron losses | Generally runs smoother with less loss |
Cogging Effect | Can experience cogging at low speeds | Rotates smoothly without cogging |
Size | Typically larger due to core | Can be manufactured in compact sizes |
Efficiency | May have reduced efficiency due to losses | Higher efficiency due to ironless design |
Application Suitability | Suitable for applications requiring torque | Ideal for space-constrained, high precision applications |
You will find iron core DC motors in:
Conveyor belts and industrial machines
Toys and hobby models
Applications where steady torque is more important than speed
Brushed DC Motors
Brushed DC motors use brushes and a commutator to switch the direction of current in the rotor. This design makes them simple and affordable. You can easily control their speed and direction, which is why they appear in many everyday products.
Advantages of Brushed DC Motors:
Simple construction and easy to use
Lower initial cost
Good for applications where you need variable speed
Maintenance Tip:
Brushed DC motors require regular brush replacement. Typical brush life ranges from 2,000 to 10,000 hours, depending on load and speed.
You will see brushed DC motors in:
Electric toys and small appliances
Automotive starters and windshield wipers
Power tools that do not need long lifespans
INEED’s Small gear motor offers brushed DC motor options for projects that need a balance of cost and performance, especially in compact spaces.
Brushless DC Motors
Brushless DC motors use electronic circuits instead of brushes to control the current. This design removes friction and wear, making these motors more efficient and reliable. You get higher speeds, less noise, and longer life.
Feature | Brushed Motor | Brushless Motor |
|---|---|---|
Lifetime | Shorter | Longer |
Maintenance Requirements | Regular brush replacement | Minimal |
Speed & Acceleration | Lower | Higher |
Efficiency | Lower | Higher |
Noise & Vibration Levels | Higher | Lower |
Torque | Moderate | Higher |
Weight & Size | Lighter | Heavier |
Cost | Lower | Higher |
You will find brushless DC motors in:
Drones and aerospace equipment for longer flight times
Laptops, electric screwdrivers, and other consumer electronics
Industrial conveyors and pumps that run for long hours
Why Choose Brushless? Brushless DC motors offer up to 92% efficiency and can last from 10,000 to 50,000 hours. They need little maintenance and run quietly, making them ideal for high-performance and continuous-use applications.
INEED’s Small gear motor line includes brushless DC motor options. You can use these in devices that demand precision, efficiency, and long service life.
Tip:
When you select from the different types of electric motors, always match the motor type to your application’s needs. Consider factors like torque, efficiency, and available space. INEED’s Small gear motor gives you flexible options for both brushed and brushless DC motors, all in a compact package.
Gear Motor Types
You will find that gear motor types play a crucial role in how machines control speed and torque. Each type of gear motor uses a different mechanical design to achieve specific performance goals. You can choose from spur, planetary, and worm gear motors, each with unique strengths for different applications.
Spur Gear Motor
Spur gear motors use gears with straight teeth that mesh directly. This simple design makes them the most common choice in basic gearboxes. You will often see spur gear motors in devices that need reliable and cost-effective power transmission.
Key Features of Spur Gear Motors:
Simple and straightforward design
High mechanical efficiency, often up to 90%
Cost-effective due to easy manufacturing
Best for slow or medium speeds
Spur gear motors work well in applications where you want to save on costs and need efficient motion. They do produce more noise and vibration at higher speeds, but you can rely on them for steady performance in many everyday products.
Application | Performance Benefits |
|---|---|
Washing Machines | Regulates rotation and torque for optimal washing performance |
Blenders | Adjusts speed and power for efficient blending |
Construction Equipment | Converts high rotational speed to lower speeds for effective operation |
Industrial Automation | Provides precise control in positioning systems and speed adjustments |
Conveyor Systems | Alters torque and maintains controlled speed for material handling |
Sports Cars | Converts engine speed to suitable wheel speed, enhancing performance |
Radio Dials | Ensures precision in tuning to the exact frequency |
Road Rollers | Converts engine speed to a slower speed for heavy machinery |
You will find spur gear motors in many consumer electronics and household appliances. INEED’s Small gear motor product line offers spur gear options that deliver high torque in a compact size, making them ideal for electric screwdrivers and other space-limited devices.
Planetary Gear Motor
Planetary gear motors use a central sun gear surrounded by planet gears inside a ring gear. This design allows the gearbox to distribute loads across multiple gears, which increases both stability and torque.
Why Choose Planetary Gear Motors?
High efficiency, often above 95%
Compact and lightweight for the same torque compared to spur gear motors
Handles high torque loads with ease
Smooth and quiet operation, even under heavy loads
Planetary gear motors excel in applications that demand high torque and precision. You will see them in robotics, electric vehicles, and automation systems. Their ability to distribute force across several gears means you get reliable performance and less wear over time.
Application Use Case |
|---|
Backgauge drive for press brakes |
IML robot |
Axis drive for laser cutting machines |
Wheel hub drive for AGVs |
Height adjustment of operating tables |
Linear systems for precision portal systems |
Drum motor drive for conveyor belts |
Automation & Handling |
Curved stair lifts |
Automated guided vehicles (AGV) |
Machine construction |
You can select planetary gear motors from INEED’s Small gear motor range when you need high torque in a small package. These gear motors work well in advanced consumer electronics and industrial automation, where space and performance matter most.
Worm Gear Motor
Worm gear motors use a screw-like worm that meshes with a gear wheel. This setup creates a right-angle gear motor, which is perfect for applications where you need to change the direction of power flow.
Main Features of Worm Gear Motors:
High torque output in a compact design
Self-locking feature prevents back driving, adding safety
Quiet and smooth operation
Space-saving, ideal for small machines
Worm gear motors provide strong turning power and hold loads securely, even when the power is off. The self-locking feature makes them a top choice for applications that require holding torque, such as lifts, gates, and security devices.
Parameter | Worm Gear Motors | Spur Gear Motors |
|---|---|---|
Efficiency | 50-70% | Up to 90% |
Heat Generation | High | Low |
Torque | High | Moderate |
You should note that worm gear motors trade some efficiency for higher torque and safety. They generate more heat due to friction, but their ability to prevent back driving is essential in many consumer electronics and industrial uses.
INEED’s Small gear motor product line includes worm gear options for right-angle gear motors. You can use these in devices where you need compact size, high torque, and secure load holding, such as electric screwdrivers and automated locks.
Tip:
Gear motors combine an electric motor with a gearbox to limit speed and increase torque. You can choose from inline gear motors, which use spur or planetary gears, or right-angle gear motors, which use worm, bevel, or hypoid gearing. INEED offers all these gear motor types, so you can match the right solution to your application.
Electric Motors and Gears in Applications
Consumer Electronics
You interact with electric motors and gear systems every day, often without realizing it. In consumer electronics, these components power devices like electric toothbrushes, robot vacuum cleaners, and smart curtain drives. DC gear motors play a key role in these products by combining speed control with high torque. For example, INEED’s Small gear motor provides the gentle motion needed for electric toothbrushes and the steady force required for massage devices.
Application | Example Device |
|---|---|
Smart curtain drives | Automates opening/closing |
Electric toothbrushes | Gentle cleaning motion |
Massage devices | Provides relaxing vibrations |
Electric curling irons | Styles hair with steady heat |
Robot vacuum cleaners | Cleans floors autonomously |
Medical pumps | Delivers medicine steadily |
When you select a motor for consumer electronics, you must consider several factors:
Input power: Check the available voltage and current.
Efficiency: Choose a gearbox style that matches your device’s needs.
Environmental constraints: Make sure the motor can handle damp or harsh conditions.
INEED’s DC gear motor for electric screwdrivers shows how customization can improve electric motor applications. You can request specific torque, speed, or even custom dimensions to fit your product perfectly. This flexibility ensures your device works efficiently and reliably.
Industrial Uses
In industrial settings, electric motors and gear systems drive productivity. You see them in machine tools, conveyors, and automated robots. These systems improve efficiency by reducing energy losses and providing precise control over speed and torque. Gear motors also help lower maintenance costs because they have fewer moving parts.
Gear motors enhance efficiency and reliability in power generation systems.
Their robust design ensures reliable performance in harsh environments.
The compact size allows for easy integration into existing equipment.
You must match the motor and gear system to your application’s requirements. Consider speed, torque, shock loads, and space constraints. For example, INEED offers customization options for torque, speed, voltage, and even internal structures. This ensures your gear motor fits your unique industrial process.
Tip: Choosing the right electric motor applications can boost your product’s performance and reduce long-term costs. Always evaluate your needs for efficiency, durability, and space.
Selecting the right motor and gear system is essential for both consumer and industrial uses. You gain better control, higher efficiency, and longer service life. These benefits make electric motors and gears a smart choice for common applications across many industries.
You see clear differences between electric motors and gear systems in torque, size, and efficiency. The table below shows how gearboxes boost torque output:
Gearbox Ratio | Motor Speed (rpm) | Torque Output (in-lbs) |
|---|---|---|
No gearbox | 934 | 4.75 |
10:1 | 93.4 | 40.45 |
15:1 | 62.3 | 59.81 |
Choosing the right motor and gear system matters for every project. INEED’s Small gear motors offer high efficiency, lower operating costs, and flexible customization. For expert advice, you can:
Define your application needs.
Share exact specifications with the manufacturer.
Ask about mounting and lubrication options.
Explore INEED’s solutions to improve your product’s performance and reliability.
FAQ
What is the difference between a DC motor and a DC gear motor?
A DC motor provides rotational power. A DC gear motor combines a DC motor with a gearbox. The gearbox reduces speed and increases torque. You get more control and power for your application.
How do you choose the right small gear motor for your project?
Start by listing your application’s needs:
Required torque and speed
Available space
Voltage and power supply
Shaft type
INEED offers custom options to match your exact requirements.
Which gear motor type should you use for high torque in a small space?
Planetary gear motors deliver high torque in a compact size. You should choose this type for robotics, automation, or any device where space is limited and performance matters.
Can you customize INEED’s small gear motors for special applications?
Customization Options | Examples |
|---|---|
Size | 6mm to 42mm diameters |
Gear Type | Spur, planetary, worm |
Output | Torque, speed, voltage |
You can request custom designs to fit your unique needs.
