A gear reduction motor combines a standard motor with a set of gears to lower speed and increase torque. You see these motors in many modern machines because they help devices run smoothly and efficiently.
Over 65% of today’s industrial machinery uses gear reducers for better performance.
Year | Projected Market Size (USD Billion) | CAGR (%) |
|---|---|---|
2024 | 36.7 | 9.52 |
2030 | 57.2 | N/A |
2035 | 90.1 | 8.51 |
INEED Motors leads the industry by providing advanced small gear motors, offering expert engineering and custom solutions for your unique needs.
Key Takeaways
A gear reduction motor combines an electric motor with gears to lower speed and increase torque, making it ideal for heavy loads.
These motors operate quietly and efficiently, saving energy and reducing costs in various applications like robotics and home appliances.
Choosing the right gear reduction motor depends on your speed and torque needs, as well as space and noise considerations.
Different types of gear reduction motors, such as spur, worm, and planetary, offer unique advantages for specific tasks.
Customization options are available, allowing you to tailor gear motors to fit your project’s exact requirements.
Gear Reduction Motor Basics
What Is a Gear Reduction Motor
You encounter gear reduction motors in many devices that need controlled movement and reliable power. A gear reduction motor combines an electric motor with a geared transmission system. This combination allows you to reduce the speed of the output shaft while increasing torque. The geared mechanism multiplies the force, making it easier for machines to handle heavier loads. You benefit from quieter operation and improved energy efficiency compared to standard motors running at high speed.
Here are the key characteristics that set a gear reduction motor apart from other types:
Operates at optimal speed and torque for energy efficiency
Quieter operation than motors without reduction
Reduces speed while increasing torque
Compact design fits into small spaces
Efficient in many applications
Multiplies torque for heavier loads
Reduces high rotational speed to manageable output
Saves space by combining motor and gearbox
You see gear reduction motors in robotics, automation, and household appliances. The geared transmission system ensures precise control and smooth operation, making these motors essential for modern technology.

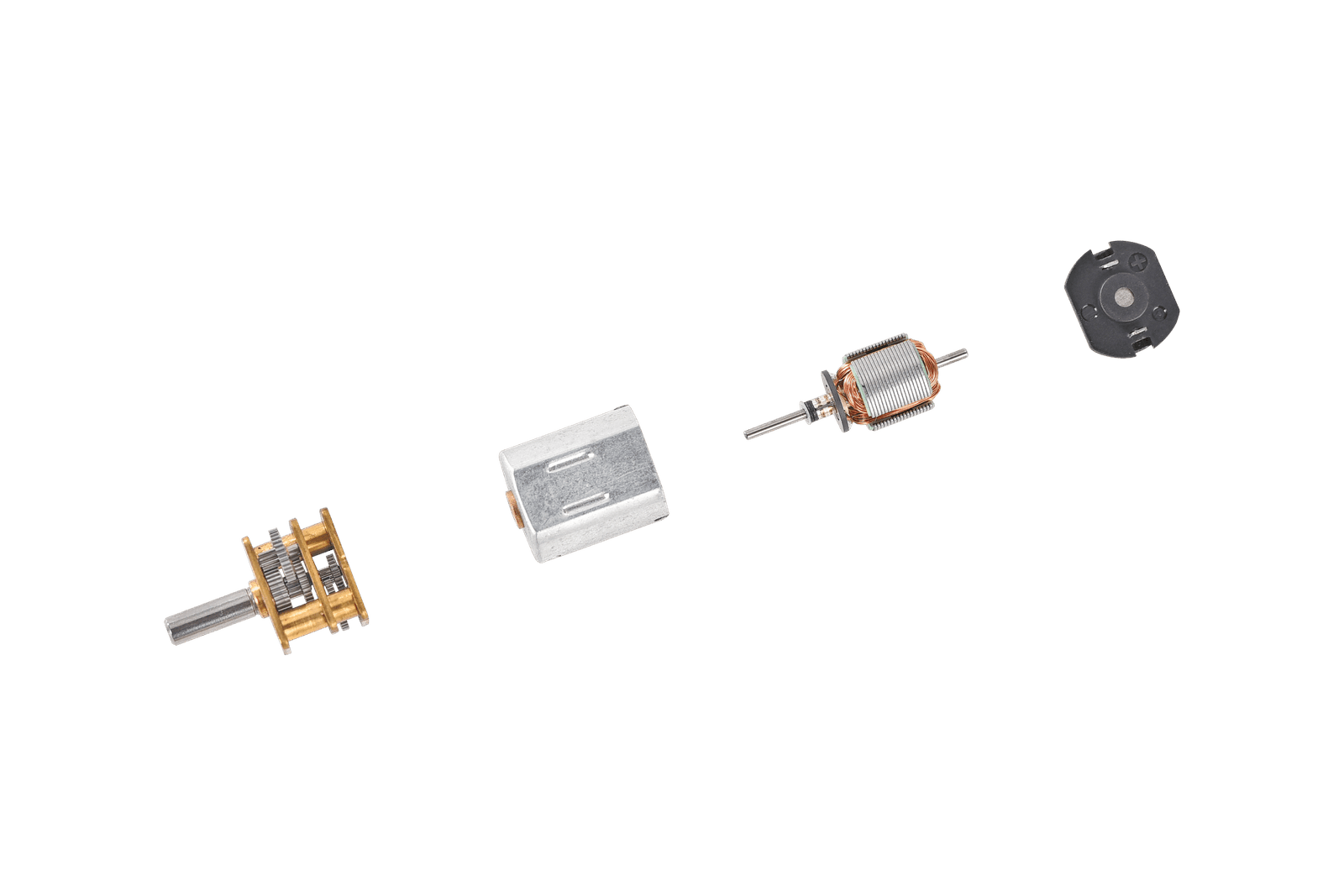

Main Components
A gear reduction motor consists of several important parts. Each component plays a specific role in the transmission and reduction process. You can see how these parts work together to deliver efficient performance.
Electric Motor: Converts electrical energy into mechanical energy.
Gearbox: Modifies speed and torque of the output shaft using a series of gears.
Output Shaft: Delivers mechanical power to your application.
The materials used in these components affect durability and efficiency. Here is a table showing common materials:
Material Type | Description |
|---|---|
Copper Alloys | Commonly used for gears due to excellent mechanical properties. |
Iron Alloys | Best choice for superior material strength; gray iron can be cast and machined into gears. |
Aluminum Alloys | Lightweight and corrosion-resistant, suitable for various applications. |
Thermoplastics | Used in specific applications where flexibility and lightweight properties are required. |
The gearbox contains multiple gears that interact to achieve the desired reduction ratio. You can select different gear types, such as spur, worm, or planetary, depending on your needs. The output shaft connects directly to your device, transferring the increased torque and reduced speed.
Core Function
The core function of a gear reduction motor is to provide controlled transmission of power. You use the geared system to reduce speed and increase torque, which allows machines to operate smoothly and handle demanding tasks. The reduction process takes the high-speed rotation from the electric motor and slows it down through the gearbox. This action multiplies the torque, giving you more force at lower speeds.
You gain several advantages from this transmission system:
Increased torque lets you move heavier objects.
Speed control enables precise adjustments for your application.
Efficient design reduces energy losses and heat generation.
Gear reduction motors combine an electric motor with a gear train to achieve these benefits. You rely on them in applications that require high torque at low speeds, such as conveyor belts, medical devices, and robotics. Their design improves performance, durability, and energy efficiency.

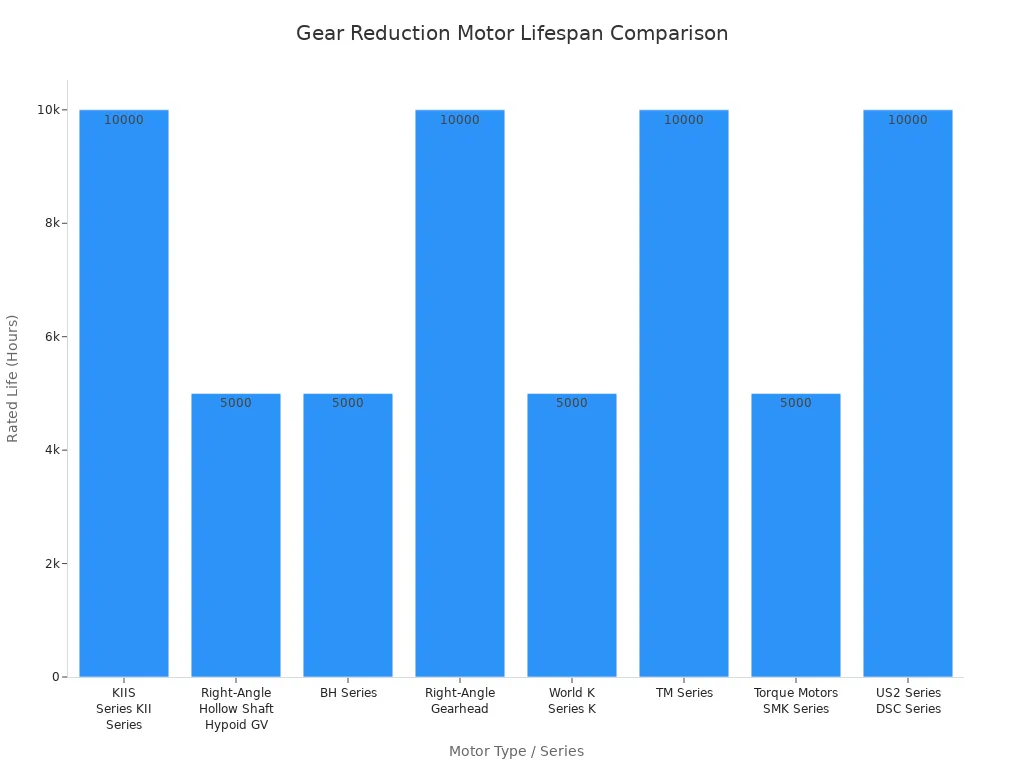

The lifespan of a gear reduction motor depends on the type and operating conditions. Many geared motors last between 5,000 and 10,000 hours under standard use. Here is a chart comparing rated lifespans of different gear reduction motor types:
Recent advancements in gear reduction motor technology help you achieve even better results. Manufacturers now use efficient production methods to lower costs and improve reliability. You benefit from AI integration for optimized control and IoT features for remote monitoring. Additive manufacturing (3D printing) allows for precise gear motor production and intricate designs that boost performance.
When you compare gear reduction motors to traditional motors, you notice higher energy efficiency. Gear motors use less energy for applications that need high torque at low speeds. This efficiency leads to lower energy consumption and reduced operating costs.
Motor Type | Energy Efficiency Description |
|---|---|
15W Gear Motors | More efficient for applications requiring high torque at low speeds, leading to lower energy consumption. |
Traditional Motors | Efficiency varies widely based on motor type and application, often requiring more energy for similar output. |
You can trust gear reduction motors to deliver reliable transmission, precise control, and efficient operation in a wide range of devices.
How a Geared Motor Works
Speed Reduction Process
You see the speed reduction process at the heart of every gear reduction motor. When you connect a motor to a gearbox, the gears inside work together to slow down the rotation speed. This process lets you control how fast the output shaft turns. The gears exchange high speed for high torque, which means you get more force at a lower speed.
Tip: The number of teeth on each gear decides how much the speed drops and how much torque increases.
Here is a table that shows the physical principles behind speed reduction:
Function | Description |
|---|---|
Speed Reduction | Gear reducers decelerate power transmission from a motor to machinery. |
Torque Amplification | They amplify torque from the power source, enabling more substantial work capabilities. |
Gear Train Modification | Speed reducers use a gear train to modify speed and torque output. |
Gear Teeth Relationship | An output gear with more teeth than the input gear results in lower speed but increased torque. |

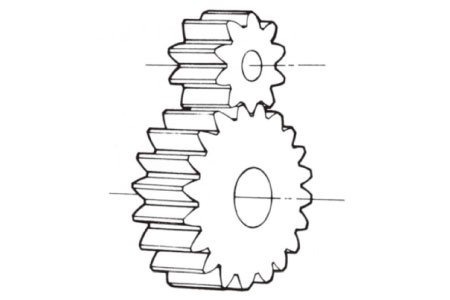

You notice that gear ratios play a big role. A larger output gear rotates slower than a smaller input gear. This setup delivers higher torque and lets you handle heavier loads with less effort.
The core principle of reduction gears is to exchange high speed for high torque.
Gear ratios, determined by the number of teeth on the input and output gears, facilitate this trade-off.
A larger output gear rotates slower than a smaller input gear, delivering higher torque.
Torque Increase
You benefit from the increased torque that comes from the speed reduction process. When you use a gear reduction motor, you get more output torque than you would from a direct drive motor. This extra torque helps you move heavy objects and perform tough tasks.
Geared motors can provide 50% to 100% higher torque than direct drive motors at low speeds (0–300 RPM).
A typical 500W geared motor delivers 80–100 Nm of wheel torque during startup, while a direct drive motor of the same class provides only 40–50 Nm.
At around 300 RPM, the torque output of both motor types converges to about 25 Nm.
You see that the output torque is much higher at low speeds. This feature makes gear reduction motors perfect for applications that need strong force but not high speed. You can use them in conveyor belts, robotics, and medical devices where precise movement and increased torque matter most.
Example Mechanism
You find gear reduction motors in many real-world machines. In industrial automation, stepper gear motors play a key role in 3D printing. These motors control movement in small increments, which helps you create detailed structures and high-quality prints. You see this technology in both desktop and industrial 3D printers, especially in aerospace manufacturing where tight tolerances are important.
Stepper gear motors are used in 3D printing for precise layer placement, ensuring high-quality prints. They control movement in small increments, which is crucial for creating detailed structures. This technology is widely adopted in both desktop and industrial 3D printers, particularly in aerospace component manufacturing where intricate parts with tight tolerances are required.
You also notice strain-wave gearing, or Harmonic Drives, in robot arms, medical equipment, and offshore drilling. This type of gearing gives you zero backlash and high-torque operation in a compact design.
Strain-wave gearing, also known as Harmonic Drives, is essential in applications such as robot-arm articulation, medical equipment, and offshore drilling. This type of gearing provides zero backlash and high-torque operation in a compact design.
You rely on gear reduction motors for their ability to deliver increased torque, precise control, and reliable performance in many industries.
Types of Speed Reducer Motors
You find several types of gear reduction motors in modern machines. Each type uses a different reducer gearbox design to control speed and torque. You can choose the best speed reducer for your application by understanding how each works.
Spur Gear
Spur gear reduction motors use straight-cut gears inside the reducer gearbox. You see these motors in devices that need simple construction and low cost. Spur gear motors offer wide reduction ratios and fit into compact spaces. You get reliable performance for basic tasks.
Gear Type | Max Efficiency (%) | Advantages | Disadvantages |
|---|---|---|---|
Spur Gear Motor | 43.6 | Simple design, low cost, wide reduction ratios, compact | Lower efficiency than planetary, limited load capacity, higher noise |

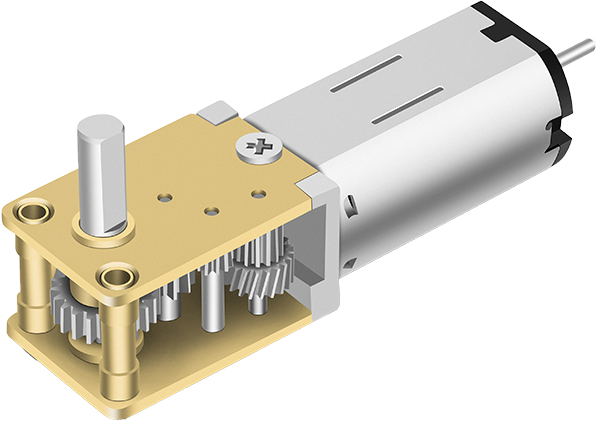

INEED Motors offers N20 gear motors with spur gearheads. You can select models with output speeds from 10 rpm to 200 rpm. These motors meet RoHS standards and feature metal core construction for durability.
Worm Gear

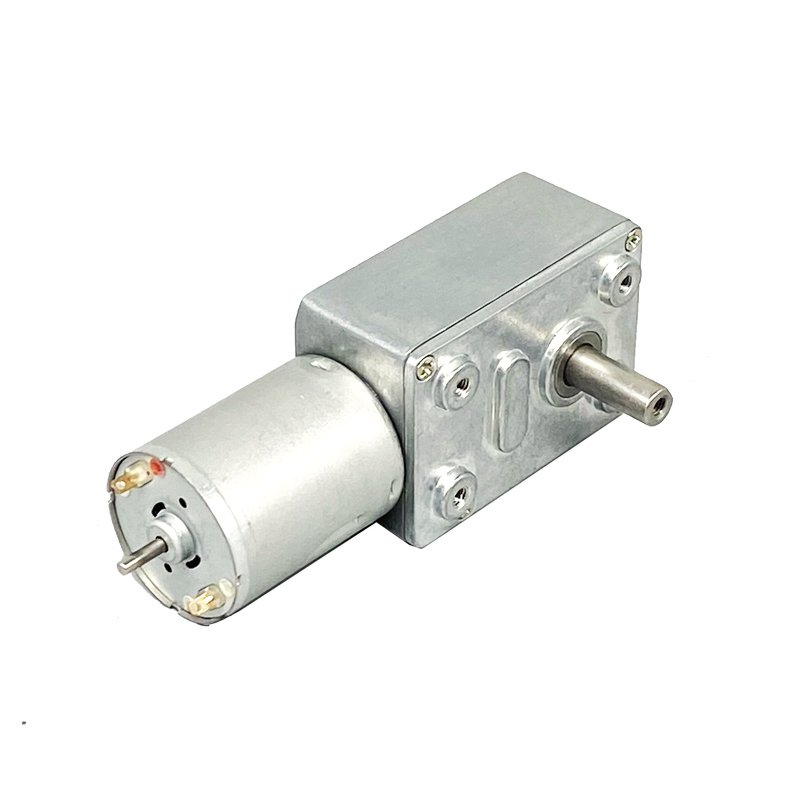

Worm gear reduction motors use a screw-like gear that meshes with a toothed wheel inside the reducer gearbox. You get high reduction ratios and smooth, quiet operation. Worm gear motors work well in mixers, conveyors, and bottling plants. You benefit from compact size and high torque at low speeds.
Specification | INEED N20 Gear Motor | Industry Standard |
|---|---|---|
DC Motor Type | Brushed Motor | Varies |
Output Speed (No Load) | 10 rpm~200 rpm (Customized) | Varies |
Gearhead Type | Worm | Varies |
Gear Ratio | 1:5~1:1000 | Varies |
Rated Voltage | 6VDC, 12VDC (Customized) | Varies |
No Load Current | 35mA (Customized) | Varies |
Maximum Stall Torque | 16800g.cm (Customized) | Varies |
Core Construction | Metal | Varies |
Standards Met | RoHS Compliant | Varies |
You notice worm gear motors have lower efficiency due to sliding friction. They generate more heat and suit applications that do not require heavy loads.
Planetary Gear
Planetary gear reduction motors use multiple gears that rotate around a central gear inside the reducer gearbox. You get high efficiency, strong torque, and low noise. These motors work well in robotics, medical equipment, and automation systems. You see planetary gear motors in devices that need precise control and compact size.
Gear Motor Type | Applications | Characteristics |
|---|---|---|
Planetary Gear Motor | Robotics, medical equipment, automation | High efficiency, low noise levels, compact sizes, high torque output |
Worm Gear Motor | Mixers, conveyors, bottling plants | High torque output, low-speed operation, compact size, quiet operation |
INEED Motors provides planetary gear motors with advanced reducer gearbox designs. You can request custom dimensions and technical parameters to fit your project. The engineering team supports you with detailed documents and guidance.

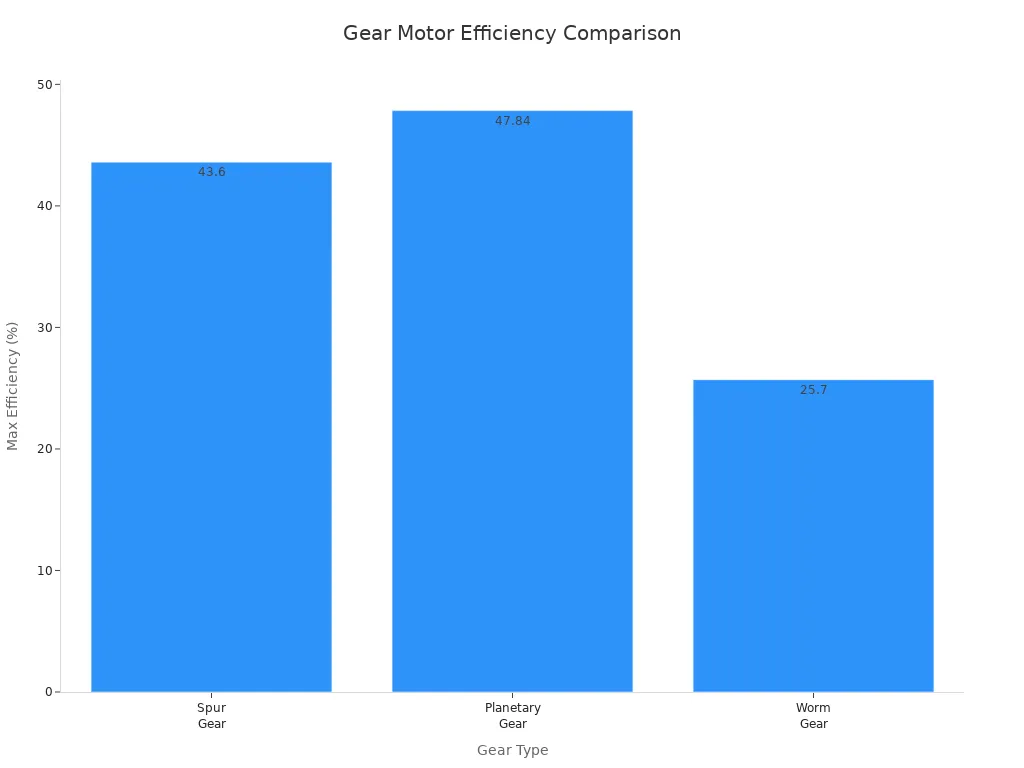

Tip: You can compare the efficiency of spur, planetary, and worm gear reduction motors using the chart below.
You benefit from INEED Motors’ compact speed reducer designs. You can customize gear ratios, output speeds, and internal structures. These options help you match the reducer gearbox to your device’s needs. You find small gear motors with diameters under 42mm, making them ideal for limited spaces.
You see that the types of gear reduction motors offer different advantages. Spur gear motors suit simple tasks. Worm gear motors provide quiet operation and high reduction ratios. Planetary gear motors deliver strong torque and high efficiency. You can select the right gear reducer for your application and enjoy reliable performance.
Benefits of Gear Reduction Motors
High Torque Output
You gain a major advantage when you choose a gear reduction motor for your project. These motors deliver high torque reduction, which means you get more force at lower speeds. You can move heavy loads with less effort. INEED Motors designs small gear motors that provide strong torque even in compact spaces. You see this benefit in robotics, automation, and medical devices. High torque output lets you handle demanding tasks without sacrificing performance.
Tip: High torque reduction helps you achieve reliable movement in devices that require extra power.
Precision and Control
You need precise control for many applications. Gear reduction motors give you accurate speed and direction control. You can position objects exactly where you want them. INEED Motors offers small gear motors with low noise and smooth operation. You notice improved efficiency in your devices because the motor runs at optimal speed. This precision makes gear reduction motors ideal for equipment that needs careful adjustments, such as laboratory instruments and automated systems.
Feature | Benefit to You |
|---|---|
Precise Speed | Accurate positioning |
Low Noise | Quiet operation |
Smooth Movement | Consistent performance |
Compact Design
You often work with limited space in your projects. Gear reduction motors from INEED Motors feature a compact design. You can install these motors in tight spaces without losing power or control. The small size makes them perfect for portable devices and miniature equipment. You also benefit from low vibration and quiet operation, which is important in noise-sensitive environments.
Small gear motors fit into devices with strict space requirements.
Compact design allows for flexible installation.
Low noise and vibration improve user experience.
INEED Motors supports you with customization options. You can request specific dimensions, gear ratios, and technical parameters. The engineering team provides expert guidance and technical documents. You get a motor that matches your exact needs.
Applications
Industrial Machinery
You see gear reduction motors play a vital role in industrial machinery. Factories use these motors in conveyor belts, packaging systems, and automated assembly lines. You rely on small gear motors from INEED Motors for precise movement and high torque. Robotics in industrial settings need accurate control to handle delicate tasks. Medical device manufacturers use gear reduction motors for equipment that requires steady and reliable operation. DC brushless gear motors help you lower harmful emissions in large-scale industrial manufacturing. This efficiency supports cleaner energy production and matches global sustainability goals. You notice that industrial automation depends on gear reduction motors for consistent performance and reduced maintenance.
Tip: You can improve energy efficiency in your industrial facility by choosing gear reduction motors with advanced designs.
Home Appliances
You find gear reduction motors inside many home appliances. Washing machines use these motors to spin drums at controlled speeds. Electric curtains and automatic doors rely on small gear motors for smooth and quiet movement. Kitchen appliances, such as blenders and food processors, need precise speed control to work safely. INEED Motors offers compact gear motors that fit into tight spaces in household devices. You benefit from low noise and vibration, which makes your home environment more comfortable. These motors help you save energy and extend the lifespan of your appliances.
Consumer Devices
You encounter gear reduction motors in a wide range of consumer devices. Cameras use small gear motors to adjust lenses and focus. Toys and hobby robots depend on these motors for movement and interactive features. You see gear reduction motors in smart locks, automatic window shades, and personal care gadgets. INEED Motors provides customizable solutions for consumer electronics, allowing you to match the motor to your device’s needs. You enjoy reliable performance and quiet operation in products you use every day. The versatility of small gear motors makes them suitable for many applications, from entertainment to security.
Note: INEED Motors’ small gear motors deliver dependable results in industrial, home, and consumer devices. You can trust their engineering for quality and adaptability across different industries.
You now understand what a gear reduction motor is and how it works. You see different types, each with unique benefits for various applications. When you choose a gear reduction motor, consider these important factors:
Factor | Description |
|---|---|
Speed and Torque Requirements | Determines the type and size of the gear motor or reducer needed for the application. |
Efficiency and Power Transmission | Affects the amount of power transmitted with minimal energy loss. |
Noise and Vibration | Important for applications requiring precise operation; select devices that operate quietly. |
Environmental Factors | Consider temperature and humidity to ensure effective operation in specific conditions. |

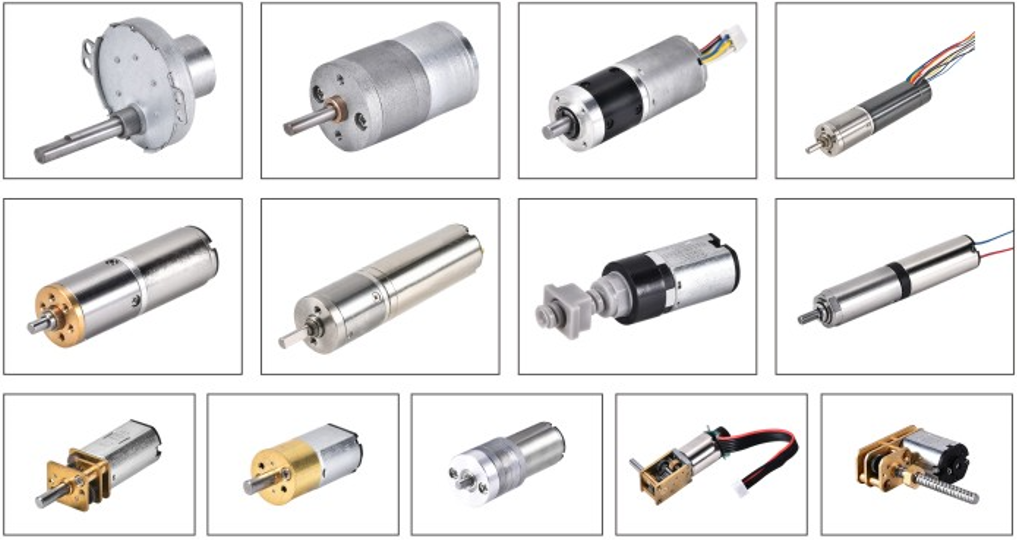

INEED Motors offers high-quality, customizable small gear motors. You can reach out for expert support and find the perfect solution for your project.
FAQ
What is the main purpose of a gear reduction motor?
You use a gear reduction motor to lower speed and increase torque. This helps your machines move heavier loads with less effort and gives you better control over movement.
How do you choose the right gear reduction motor for your project?
You should check your speed and torque needs. Think about the space available and the noise level you want. INEED Motors offers custom options to match your exact requirements.
Can you customize small gear motors from INEED Motors?
Yes, you can. INEED Motors lets you pick dimensions, gear ratios, and technical features. Their engineers help you design a motor that fits your project perfectly.
Where do you commonly use small gear reduction motors?
You find these motors in robotics, medical devices, home appliances, and automation equipment. They work well in places where you need high torque, quiet operation, and a compact size.
