When you need gear motor options that deliver high torque in a small space, planetary gear motors and worm gear motors stand out. INEED offers these advanced solutions, focusing on quality and customization to fit your needs. Combining high torque with compact gear motor design has become essential in modern engineering. This approach saves space, uses fewer materials, and increases durability. Industries like robotics and healthcare now use these motors to boost efficiency, reduce noise, and meet strict size requirements.

Key Takeaways

• Planetary gear motors offer high torque density and compact design, making them ideal for tight spaces in applications like robotics and healthcare.

• Worm gear motors provide self-locking features, ensuring safety in applications where loads must be held in place, such as in automotive systems and security devices.

• Choosing the right gear motor depends on your specific needs, including torque, speed, and space constraints; always match the motor type to your application.

• Efficiency matters: Planetary gear motors can reach up to 97% efficiency, reducing energy costs and enhancing performance in compact applications.

• Customization options from INEED allow you to tailor gear motors to fit your exact project requirements, ensuring optimal performance and integration.

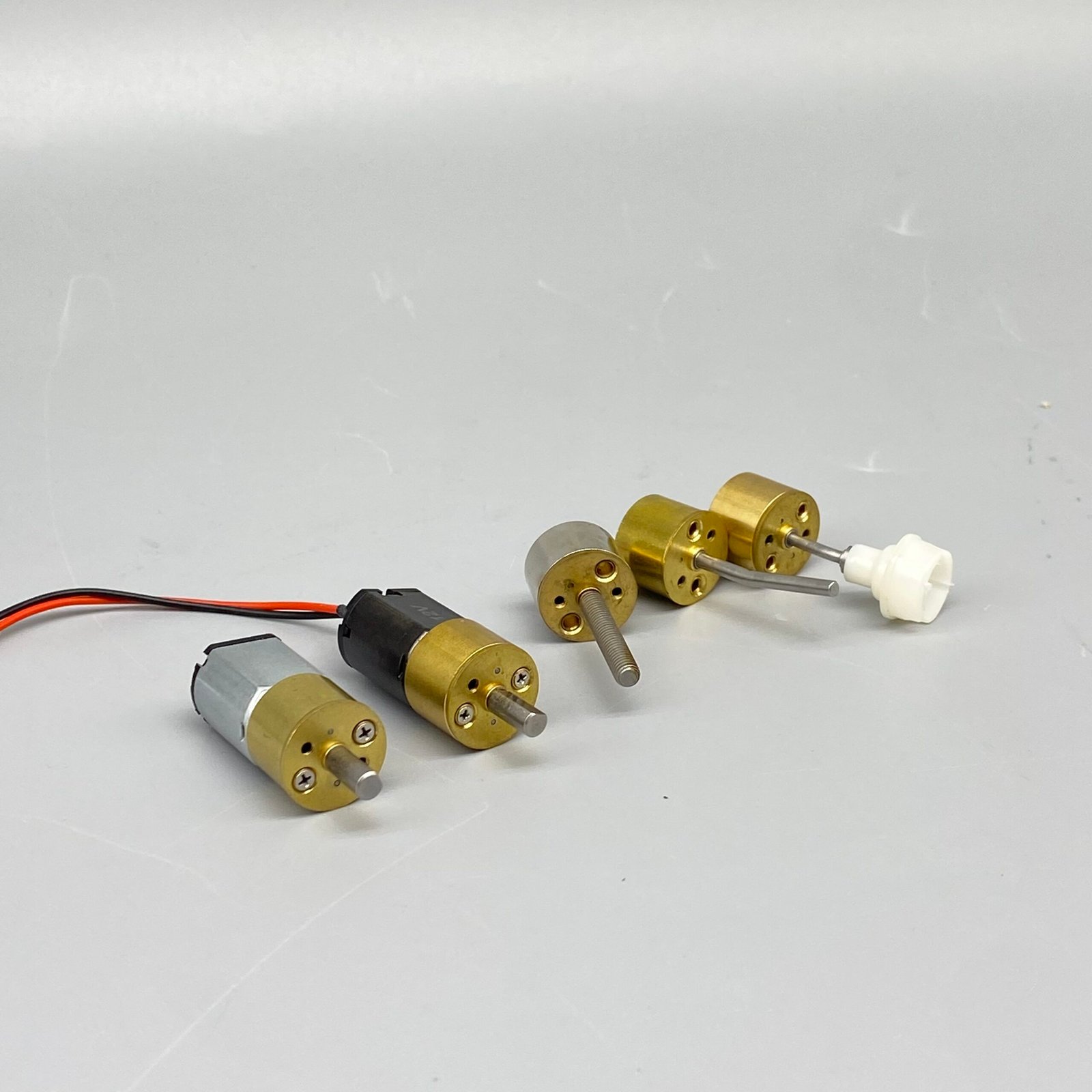

Gear motor options overview

When you look for gear motor options that combine high torque with compact dimensions, you will find several choices. INEED offers advanced solutions that fit many needs. You can see the main types of geared motors in the table below. This will help you compare their features and decide which one works best for your project.

Tip: Always match the geared motor type to your application’s space and power needs.

Planetary gear motors by INEED

You can choose planetary gear motors when you need both power and small size. INEED’s 6mm Metal Planetary Gear Motor stands out in this category. This geared motor uses a metal gear system. It gives you higher torque density and a longer lifespan than other compact gear motors. The rated torque is two to three times that of plastic models. You also get more gear ratio options, which means you can fine-tune the motor for your exact needs.

You will find these geared motors in robotics, medical devices, and consumer electronics. The 6mm planetary gear motor from INEED also offers a lightweight design. It uses a coreless motor and a plastic gearhead. This makes it perfect for smart home products and precision devices. You can customize these dc geared motors for different speeds and torque levels.

Worm gear motors from INEED

Worm gear motors give you a unique set of benefits. You get a self-locking feature, which means the output shaft will not move unless you want it to. This makes these geared motors safe for applications where you need to hold a load in place. The compact structure lets you fit them into tight spaces. INEED’s worm gear motors work well in many fields.

You can use these geared motors in:

• Automotive systems

• Robotics

• Manufacturing

• Industrial mixers

• Conveyor systems

• Security door locks

• Material handling equipment

• Recycling machines

• Security gates

• Vending machines

• Laboratory equipment

• Garage door openers

• Dental chairs

• Medical lifts

• Ambulance cots and stretchers

These dc geared motors handle heavy loads and provide smooth, quiet operation. You can rely on them for precise movement and long service life.

Other compact gear motor types

You may also see spur and harmonic drive gear motors in some projects. Spur geared motors have a simple design and cost less. They are easy to maintain but can be noisy and wear out faster. Harmonic drive geared motors give you high precision and zero backlash. They work well when you need accuracy, but they cost more and have a more complex design.

You should choose these dc geared motors for basic or high-precision tasks, depending on your needs. Most high torque and compact applications use planetary or worm gear motor options because they offer the best balance of power, size, and reliability.

Note: Market data shows that worm gear motors hold a larger share in compact, high-torque uses, especially in elevators and packaging machinery. Planetary gear motors are popular in robotics and automotive transmissions.

You can always ask INEED for advice on which geared motor fits your project best. Their team can help you select and customize dc geared motors for any application.

Gear motor options comparison

Torque and size efficiency

You need to understand how different geared motors perform when you want high torque in compact dimensions. Planetary gear motors deliver high torque density and efficient power transmission. Worm gear motors also provide high gear ratios in a small space, but they lose some efficiency because of friction between the worm and wheel. Spur gear motors offer moderate efficiency and are less compact.

Planetary drive motors reach up to 97% efficiency. This means you save energy and lower operating costs. Worm gear motors have higher energy losses, but their compact structure makes them valuable for space-saving designs.

Application suitability

You should select geared motors based on your application’s needs. If you work with strict space constraints, planetary gear motors and worm gear motors are your best choices. Their integrated design conserves space and simplifies mechanical layouts. You see these dc geared motors in electric wheelchairs, camera platforms, and small household appliances. The compactness also reduces misalignment issues, making installation easier.

• Gear motors help when space is limited and compact design is necessary.

• The combination of motor and gearbox into a single unit saves space and simplifies mechanical design.

• Integrated design minimizes installation space and reduces misalignment issues.

Pros and cons

You need to weigh the strengths and weaknesses of each geared motor option. Planetary gear motors offer superior energy efficiency, durability, and versatility. Worm gear motors provide self-locking properties and high torque at low speeds, but they are less efficient and can wear faster under heavy loads.

Tip: For most high torque and compact applications, planetary gear motors and worm gear motors give you the best balance of performance and reliability. You can rely on INEED’s dc geared motors for custom solutions that fit your exact requirements.

Selection criteria

Space and torque requirements

When you select geared motors for your project, you need to start with the basics. First, measure the available installation space. The motor size depends on this space, while the gearbox size changes with the number of gears and the gear reduction structure. For compact applications, planetary gear motor options often work best because they use space efficiently and deliver high torque. You should identify the minimum and maximum torque and speed your application needs. Analyze the typical torque profile and loading conditions. Always check mounting options and any space constraints before you decide.

• Calculate the required torque and speed.

• Review the duty cycle and environmental conditions.

• Choose the geared motor type based on efficiency, space, and precision needs.

• Apply safety factors and check compatibility with your control system.

Planetary geared motors offer a compact design and high torque density, making them ideal for tight spaces. Worm geared motors provide high torque at low speeds but may need more room.

Efficiency and cost

Efficiency plays a big role in choosing dc geared motors. Planetary gear motors can reach up to 97% efficiency per stage, which means less energy loss and lower operating costs. Worm geared motors, while strong, usually have lower efficiency because of sliding contact between gears. You should also consider the total cost, including purchase price, energy use, and maintenance. Sometimes, a more efficient geared motor costs more upfront but saves money over time.

• Planetary gear motors: High efficiency, good for energy savings.

• Worm gear motors: Lower efficiency, but excellent for holding loads in place.

• Inline-geared motors: Moderate torque and efficiency, fit well in limited spaces.

Integration tips

Proper integration ensures your dc geared motors perform at their best. You should look for features like lightweight housing and universal motor interfaces to make installation easier. Standardized oils and modular parts can simplify maintenance. INEED offers full customization services, letting you adjust voltage, shaft design, and gear ratios to fit your needs. Their team can help you optimize gear teeth, select special shaft shapes, and choose the right size for your application. Quick sampling and high production capacity mean you get solutions fast.

Tip: Work with INEED’s support team to ensure your geared motor integrates smoothly into your device. Their expertise helps you avoid common pitfalls and achieve the best performance.

Real-world applications

Medical devices (e.g., insulin pumps)

You will find geared motors at the heart of many medical devices. In insulin pumps, these motors deliver medication with precision, helping patients manage diabetes safely and comfortably. You also see them in surgical tools and diagnostic machines, where accuracy and reliability matter most.

You can see how the 6mm Metal Planetary Gear Motor from INEED improves insulin pumps and oral irrigators. Its compact size and high torque output make it ideal for these sensitive applications.

Robotics and automation

In robotics and automation, you need motors that combine power, precision, and efficiency. INEED planetary gear motors give robot arms and wheels the torque and control they need. These geared motors also drive conveyor systems and assembly lines in automated factories.

• Torque: Delivers the force needed for robotic movement.

• Speed: Adjustable to match different tasks.

• Precision: Ensures exact positioning, often with encoders.

• Efficiency: Reduces power loss, keeping robots running longer.

• Thermal Management: Maintains performance during heavy use.

You benefit from dc geared motors that fit into tight spaces while providing reliable performance. Their compact design and high efficiency make them a top choice for modern robots and automated systems.

Consumer electronics

You interact with geared motors every day in consumer electronics. These motors power devices like audio equipment, office automation tools, toys, and even cosmetic tools. Their small size and high torque output help manufacturers create products that are both powerful and compact.

When you design or use these products, you rely on dc geared motors to deliver smooth, quiet, and efficient operation. Manufacturers face challenges like scaling up production, balancing energy efficiency with cost, and integrating motors with other components. Still, the benefits of compact, high-torque geared motors continue to drive innovation in consumer electronics.

You have several strong options for high-torque, compact gear motors. Planetary and worm gear motors from INEED stand out for their efficiency and customization. When you choose a gear motor, consider these factors:

• Output shaft size and mounting options

• Power transmission needs like RPM and torque

• Environmental and industry-specific requirements

• Motor technology and performance data

INEED offers:

You can upload your design files and get a response within hours. Reach out to INEED for expert support and a gear motor that fits your exact needs.

FAQ

What makes planetary gear motors ideal for compact, high-torque applications?

You get high torque in a small package because planetary gear motors use multiple gears to share the load. This design increases strength and efficiency. You can fit them into tight spaces without losing power.

How do worm gear motors provide self-locking features?

Worm gear motors use a unique gear angle. This design prevents the output shaft from turning backward. You can use them in safety-focused devices where you need to hold a load in place.

Can I customize gear motors for my specific project?

Yes! INEED offers customization for voltage, shaft design, gear ratios, and more. You can request samples and get expert advice to match your exact requirements.

Which industries benefit most from compact, high-torque gear motors?

You see these motors in many fields that need power in small spaces.
