A 50-kgcm motor torque means the motor can lift or move a 50-kilogram weight at a distance of one centimeter from its shaft. You need to understand this value when choosing a motor, because it shows how much load the motor can handle.
Torque helps you decide if a motor will work for your project, whether you want to build a robot, assemble furniture, or power a small device.
Knowing torque lets you match the right INEED motor to your needs and avoid problems like overload.
Imagine using an electric screwdriver: the right torque ensures you can drive screws into wood without stripping them or stalling the motor.
Key Takeaways
A 50-kgcm motor can lift a 50-kilogram weight at one centimeter from its shaft. Understanding this helps you choose the right motor for your project.
Torque is crucial for motor performance. It determines how much weight a motor can lift and how effectively it can operate in various applications.
Always match the motor’s torque to your project’s needs. Insufficient torque can lead to failures, while too much can damage your equipment.
INEED offers customizable motors with various torque outputs. You can adjust gear ratios and shaft types to fit your specific requirements.
Selecting the right motor enhances efficiency and reduces operational costs. Proper torque matching leads to better performance and longer motor lifespan.
50-kgcm motor torque basics
What is torque?
Torque is a measure of how much force you use to make something rotate. You can think of it as the twisting power that turns a wheel or moves a lever. When you use a wrench to loosen a bolt, you apply torque. The longer the wrench, the more torque you create with the same force.
In electric motors, torque comes from the way electricity and magnets interact inside the motor. Here is how it works:
Electric current flows through coils inside the motor.
Magnetic fields form around these coils.
The interaction between the current and the magnetic field creates a force.
This force turns the rotor, which is the part of the motor that spins.
Tip: The stronger the magnetic field and the more current you use, the higher the torque your motor can produce.
Some important factors that affect torque in dc motors include:
Strong magnets inside the motor
The number of copper windings
The design of the rotor and stator
How well the motor stays cool during operation
How is 50-kgcm measured?
The term 50-kgcm motor means the motor can lift a 50-kilogram weight with a lever arm that is one centimeter long from the center of the shaft. You can picture this by imagining a small bar attached to the motor shaft. If you hang a 50-kilogram weight at the end of a one-centimeter bar, the motor can just lift it without stalling.
You can also use different combinations. For example, if you move the weight farther from the shaft, the motor can lift a lighter weight. If you move the weight closer, it can lift a heavier one. This relationship helps you match the estimated torque requirement for your project.
Here is a simple example:
If you attach a 10-centimeter bar to the shaft, the same motor can lift a 5-kilogram weight at the end of the bar (because 10 cm x 5 kg = 50 kgcm).
How does 50-kgcm compare to other motors?
In the world of small dc motors, torque ratings can vary a lot. Some motors have a nominal output of 5 kgcm. If you add a gearbox with a 10:1 ratio, you can increase the output to about 45 kgcm, assuming the gearbox is strong enough. However, the real limit depends on the strength of the gearbox and the motor’s design. A 50-kgcm motor offers a high level of torque for its size, but you should always check the gearbox rating to make sure it matches your needs.
INEED’s expertise in high-torque micro and gear motors
INEED specializes in micro and gear motors that deliver a wide range of torque outputs, including models rated up to 50-kgcm. These motors are used in many industries, such as robotics, healthcare, and consumer electronics. You can find INEED planetary gear motors, spur gear motors, and worm gear motors that meet demanding torque requirements.
Here is a quick look at the key features of INEED motors rated at or near 50-kgcm torque:
Feature | Details |
|---|---|
Output Torque | 5.0 g.cm – 50.0 kg.cm |
Gear Ratio | 5 – 1000 |
Rated Voltage | 2V DC – 24V DC |
Output Speed | 5 – 2000 rpm |
Motor Diameter | 6 – 42 mm |
Lifespan | Long lifespan |
Noise Level | Low noise |
Efficiency | High efficiency |
Customization | Available |
When you choose an INEED 50-kgcm motor, you get a product that combines high torque, efficiency, and reliability. You can also customize the motor to fit your specific application, whether you need a certain shaft size, gear ratio, or voltage.
Note: Always consider both the motor and gearbox ratings when selecting a motor for your project. This ensures you get the performance you expect and avoid overloading your equipment.

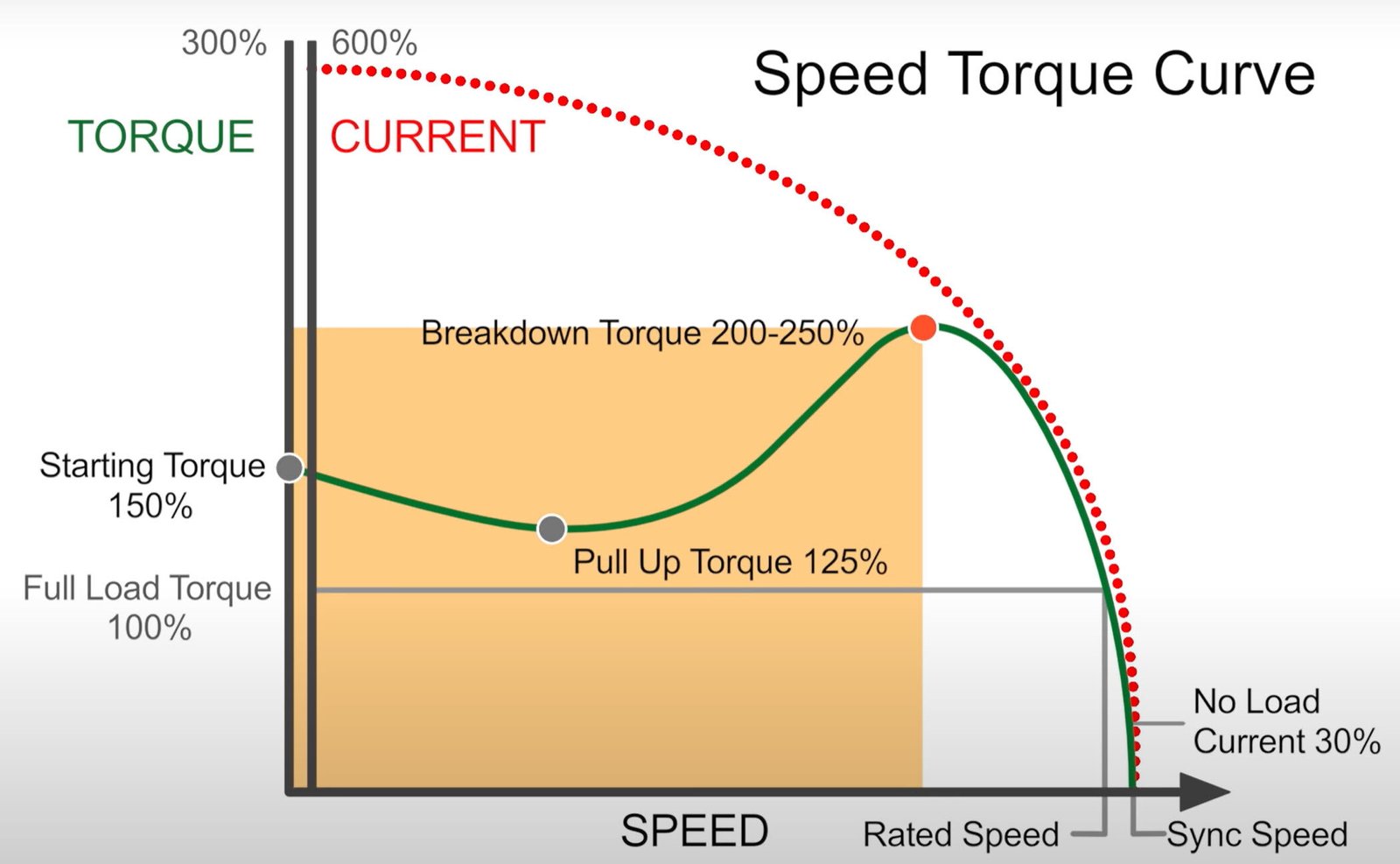

Torque and motor performance
Impact on applications
Torque plays a central role in what a motor can do for you. When you select a motor, you look at its ability to deliver a turning force that matches your needs. The more torque a motor produces, the more work it can perform. This is especially important in applications where you need immediate power from the start, such as in electric vehicles or robotics. Unlike horsepower, torque is active from zero to full speed, giving you control and flexibility in your projects.
You see the impact of torque in many areas of daily life and technology. In consumer electronics, motors with high torque power devices like electric screwdrivers, smart cameras, and robot vacuums. These motors help you drive screws into tough materials or move heavy parts smoothly. In wearable technology, direct-drive motors allow wristbands to adjust screens or mimic gestures quickly and accurately. Gaming controllers and VR headsets use motors to create fast responses, making your experience more immersive.
In robotics, torque determines how much weight a robotic arm can lift or how precisely it can move. If you build a robot for assembly or healthcare, you need motors that deliver steady torque and speed. For example, a robotic gripper in a medical device must hold objects firmly without slipping. In healthcare, motors with the right torque help operate equipment like infusion pumps or surgical tools, ensuring safety and reliability.
Here is a table showing how torque relates to performance in different applications:
Application Area | Description |
|---|---|
Wearable Technology | Motors power wristband joints for screen changes and gesture mimicry. |
Gaming and Virtual Reality (VR) | Motors in controllers and headsets provide fast, precise feedback. |
Home Automation | Motors control smart cameras, robot vacuums, and other devices for automation. |
3D Printers and CNC Machines | Motors ensure precise movement for accurate printing and milling. |
Tip: Always match the estimated torque requirement of your application to the motor you choose. This helps you avoid overload and ensures smooth operation.
INEED gear motor solutions
INEED offers a wide range of gear motors designed to meet your specific needs. You can choose from brushless gear motors, small gear motors, spur gear motors, planetary gear motors, and worm gear motors. Each type has unique strengths for different tasks.
Brushless gear motors give you high efficiency and long life. They work well in applications where you need reliable performance and low maintenance.
Small gear motors fit into tight spaces and deliver precise control. You find them in portable devices and compact electronics.
Spur gear motors offer a simple and cost-effective solution. They provide steady torque but can be noisier and have limited load capacity.

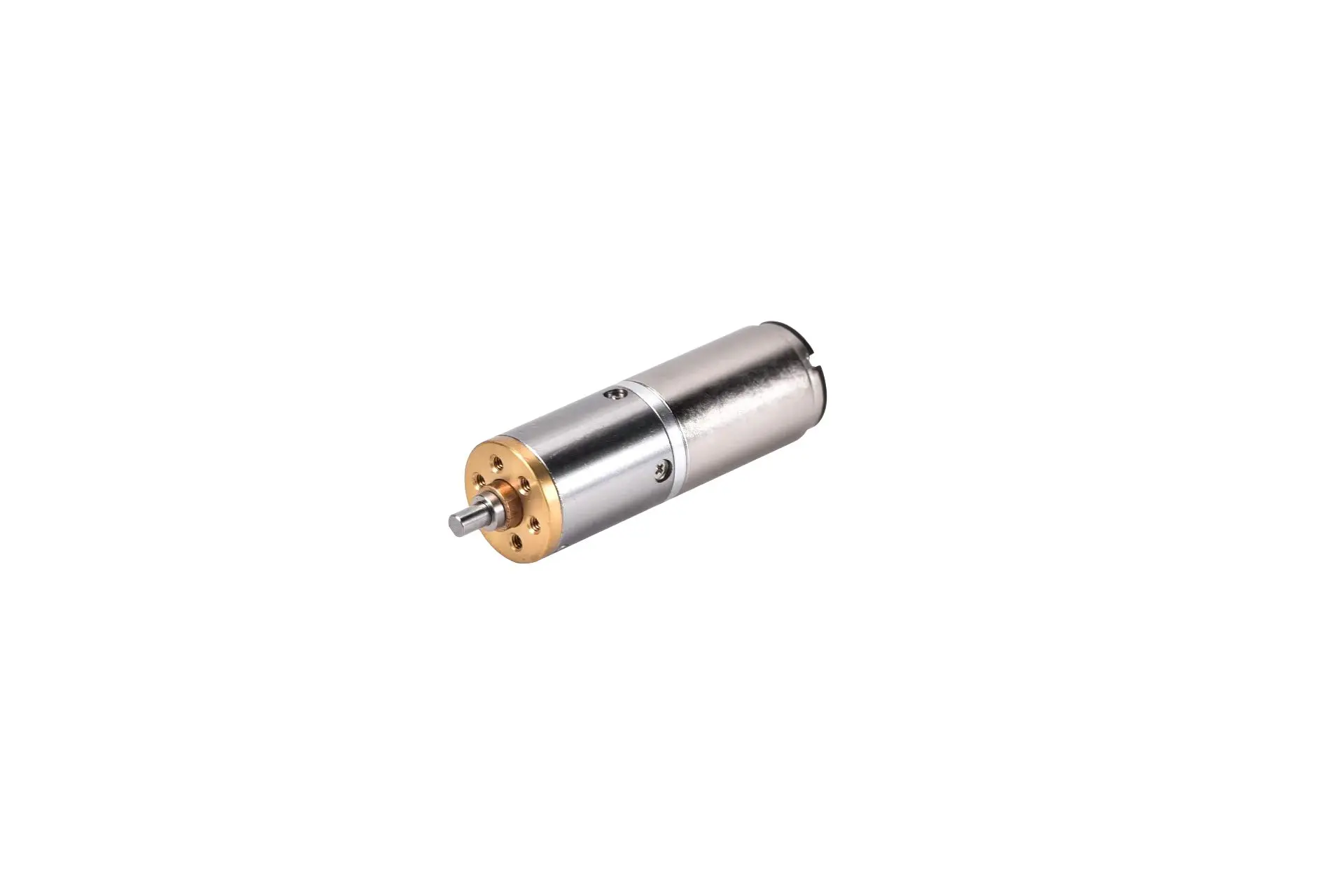

Planetary gear motors deliver high torque and efficiency in a compact size. They are ideal for demanding jobs in robotics and automation.
Worm gear motors provide high torque at low speeds and have a self-locking feature. They work best in applications where you need to hold a position, like in lifting devices.
You can see the performance differences between these motors at 50-kgcm motor torque:
Worm gear motors give you strong holding power and compact design, but they run less efficiently due to sliding contact.
Planetary gear motors combine high torque capacity with efficiency, making them suitable for heavy-duty tasks.
Spur gear motors are simple and affordable, but they may produce more noise and have lower load limits.
If you use a motor in an electric screwdriver, you want steady torque and speed to drive screws without stripping them. INEED’s 12V dc motors with adjustable gear ratios let you balance torque and speed for the best results. In robotic arms or grippers, you need precise positioning and enough torque to lift objects safely. INEED planetary and worm gear motors help you achieve this with their high torque output and reliable performance.
Operating your gear motors below their rated load can extend their lifespan. Choosing the right gear ratio also reduces wear and keeps your motor running efficiently. Temperature management matters too. When your motor stays cool, the lubricant and insulation last longer, saving you money on repairs.
Here is a table that shows how different factors affect the lifespan and efficiency of your gear motor:
Factor | Impact on Lifespan and Efficiency |
|---|---|
Rated Load | Operating below rated load can significantly increase lifespan (up to four times at half load). |
Gear Ratio | Inappropriate gear ratios lead to increased wear, reducing lifespan and efficiency. |
Motor Type | DC motors run cooler at lower loads, affecting lubricant and insulation life positively. |
Note: Always consider both the torque and speed when selecting a motor. This ensures your device works smoothly and lasts longer.
Choosing the right torque
Matching torque to your needs
Selecting the right motor torque for your project starts with understanding your application. You need to look at what your device must do and how much force it needs to move or lift objects. Start by defining the torque and speed requirements for your application. Calculate the continuous torque by considering friction, static force, and any outside disturbances.
When you choose dc motors, always check these key factors:
Steady-state load torque: This is the ongoing force your motor must provide without overheating.
Acceleration torque: Important if your project has parts that need to speed up quickly.
Starting (breakaway) torque: Needed to overcome the initial resistance before your device starts moving.
You should also assess load characteristics, evaluate inertia during startup, and analyze the duty cycle. Environmental conditions and energy-saving needs can affect your choice as well.
Tip: If you pick a motor with too little torque, your device may not work as expected. Too much torque can damage parts or cause early failure.
Common mistakes include:
Choosing a motor with insufficient torque, which can lead to operational failures.
Using a motor with excessive torque, which may harm your equipment or reduce its lifespan.
INEED customization options
INEED offers a wide range of customization options to help you match the right motor to your needs. You can adjust gear ratios for precise control over torque and speed. Shaft configurations come in round, D-shaped, or threaded designs, making it easier to fit the motor into your system. Mounting solutions include face-mount and flange-mount options for tight spaces. You can also add encoders or gearboxes for more advanced tasks.
Customization Option | Description |
|---|---|
Adjustable Gear Ratios | Control torque and speed for different applications. |
Customizable Shaft Configurations | Choose from round, D-shaped, or threaded shafts. |
Various Mounting Solutions | Select face-mount or flange-mount for easy installation. |
Optional Features | Add encoders or gearboxes for precision and feedback. |
If you need help, INEED’s support team can guide you through the process. You can share your requirements, and the team will recommend the best dc motors for your project. This ensures you get a 50-kgcm motor or any other model that fits your exact needs.
Remember: Matching the right torque to your application helps your motor last longer and perform better.
Understanding 50-kgcm motor torque helps you choose the right motor for your project. When you know the load capacity, you avoid failures and improve efficiency. INEED offers a wide range of gear motors with customizable torque and speed. You benefit from:
Enhanced torque and lower operational costs
Reliable performance and reduced maintenance
Support for sustainability goals
Order Type | Lead Time |
|---|---|
Samples | 7-10 days |
Bulk Orders | 20-25 days (for 10K PCS) |
You can contact INEED for expert advice and find the perfect motor for your needs.
FAQ
What does “50-kgcm” mean in motor torque?
“50-kgcm” means your motor can lift a 50-kilogram weight at a distance of one centimeter from the shaft. This value shows the turning force your motor can deliver.
How do I know if I need a 50-kgcm motor?
You should check your project’s load and movement needs. If you need to move or lift heavy objects, a 50-kgcm motor gives you strong torque for reliable performance.
Can I customize INEED motors for my application?
Yes! You can request custom gear ratios, shaft types, mounting options, and even add encoders. INEED helps you match the motor to your exact requirements.
What happens if I use a motor with too little torque?
Your device may stall, overheat, or fail to move the load. Always choose a motor with enough torque for your application to avoid these problems.
