You need a custom planetary gear head for your smart lock design. Smart locks demand high efficiency and compact power solutions. When you choose a manufacturer like INEED, you gain options for custom planetary gear head designs that deliver high efficiency and reliability. Smart lock applications often require gear heads that fit tight spaces and provide high efficiency under heavy loads. Sourcing a custom planetary gear head can be tough, especially when you want high efficiency and precision for smart devices. Manufacturers who offer high efficiency and flexible customization, like INEED, help you meet the smart lock’s strict requirements.
The choice of manufacturer impacts:
The reliability of custom planetary gear head solutions for smart lock applications
The ability to achieve high efficiency through tailored gear head designs
Access to a wide range of high efficiency products for smart lock projects
Support for smart lock integration and ongoing smart device development
Custom planetary gear head options that boost high efficiency in smart lock systems
Key Takeaways
Define your smart lock needs clearly. Consider size, torque, and power requirements to ensure a perfect fit.
Use design tools like CAD to model your planetary gear head. This helps visualize and test your design before production.
Communicate specifications effectively to your manufacturer. Provide detailed documents to ensure your custom gear head meets your needs.
Request samples before full production. Testing samples allows you to check fit and performance, ensuring reliability.
Choose a reliable manufacturer like INEED. Their support and customization options can enhance your smart lock’s efficiency and performance.
Steps to Get a Custom Planetary Gear Head
Designing a smart lock with a custom planetary gearhead requires a clear process. You need to define your needs, model your solution, and communicate your requirements to a trusted manufacturer like INEED. Each step helps you achieve a reliable, compact, and high-torque gearhead that fits your smart lock perfectly.
Define Smart Lock Needs
Start by understanding what your smart lock requires. You should look at the space available inside your device. A compact gearbox will help you fit the motor into tight spaces. Think about the torque your lock needs to operate smoothly. High torque ensures the lock can handle resistance and stay secure. You must also consider the power source. Many smart locks use batteries, so you want a gearhead that works well with low voltage and uses energy efficiently.
Make a list of your main requirements:
Size of the gearbox and gearhead
Torque needed for locking and unlocking
Power supply voltage
Output speed for quick and quiet operation
Mounting method and direction of rotation
A compact design will help you save space and reduce weight. This makes your smart lock easier to install and more reliable over time.
Use Design Tools for Gearhead Modeling
Once you know your needs, you can use design software to model your planetary gearhead. Tools like CAD (Computer-Aided Design) let you create a digital model of your gearbox. You can test how the gearhead fits inside your smart lock. You can also check if the compact gearbox delivers the right torque and speed.
Modeling helps you:
Visualize the gearhead and gearbox in your smart lock
Adjust the size for a compact fit
Test different gear ratios for the best performance
Make sure the output shaft lines up with other parts
You can share your digital model with INEED. This helps their engineers understand your compact requirements and suggest improvements. You can also use simulation tools to check how the gearbox will perform under load. This step saves time and helps you avoid mistakes before you build a prototype.
Communicate Specs to INEED or Supplier
Clear communication with your supplier is key. You need to give INEED all the details about your planetary gearhead and gearbox. This ensures you get a custom solution that matches your smart lock’s needs. Use a table to organize your technical specifications:
Specification | Description |
|---|---|
Application Requirements | Describe the mounting method, outline size, and direction of rotation. |
Rated Voltage | State the voltage for efficient operation. |
Output Speed | List the speed needed for your device. |
Rated Torque | Give the torque required for normal use. |
Rated Power | Specify the power output for performance. |
Stall Torque | Note the torque at which the motor stops. |
Reduction Ratio | Indicate the speed reduction from motor to output shaft. |
Environmental Conditions | Mention temperature and exposure factors. |
Customization Options | List any special features or modifications. |
Testing Procedures | Explain how you will verify the specs. |
You should include drawings, 3D models, and any special requests. If you need a compact gearbox with a unique output shaft or a specific gear ratio, mention this early. You can also ask for advice on materials, such as plastic or metal, based on your application.
Tip: The more details you provide, the easier it is for INEED to deliver a planetary gearhead that fits your smart lock perfectly.
You can request a prototype or sample before full production. This lets you test the compact gearhead in your smart lock and make changes if needed. Good communication with INEED ensures you get a reliable, efficient, and compact gearbox for your project.

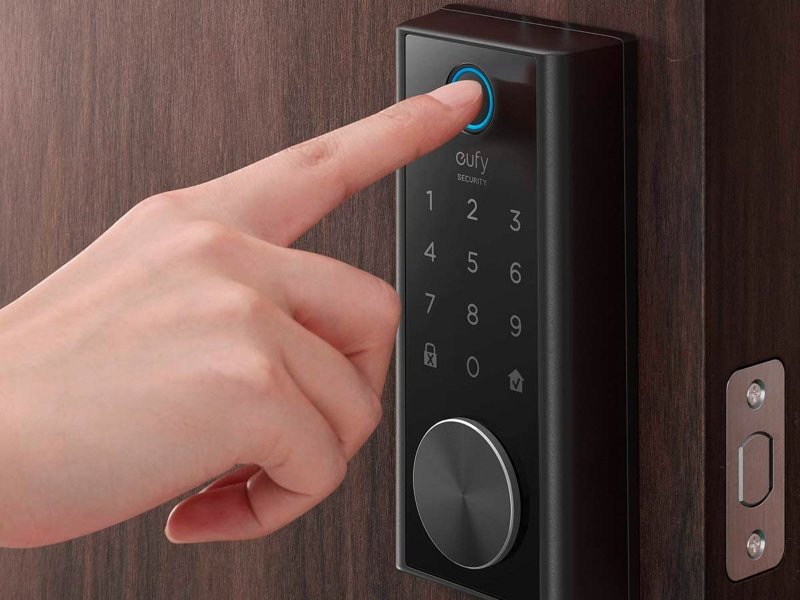

Key Specs for Planetary Gear Motors in Smart Locks
When you design a smart lock, you must focus on the right specifications for planetary gear motors. These motors play a key role in delivering high torque density and reliable performance in a compact footprint. Matching the specs to your application ensures your smart lock works smoothly and lasts longer.
Size and Torque Requirements
You need to select planetary gear motors that fit inside your smart lock’s limited space. The 6mm planetary gear motor from INEED is a great example. It offers a small gearbox with high torque output, making it perfect for tight spaces. The table below shows typical size and torque specs:
Specification | Value |
|---|---|
Gearbox Diameter | 6mm – 22mm |
Locking Torque | ≥80 G.cm |
Torque Output | Up to 22kg-cm |
Gearbox Type | Planetary |
A small gearbox with high torque density lets you achieve torque multiplication without sacrificing space. This means your smart lock can handle resistance and stay secure. You also improve reliability by using motors that deliver consistent torque multiplication.
Tip: Automated quality control using torque measurements can boost reliability and catch issues early, outperforming manual checks.
Voltage and Integration
You must choose planetary gear motors that match your smart lock’s power supply. Most smart locks use low voltages, such as 3V, 6V, or 12V. The right voltage ensures energy savings and a long lifespan. The table below lists common voltages:
Voltage | Usage |
|---|---|
3V | Small smart locks, gadgets |
6V | Standard smart locks |
12V | High-power smart locks |
A good planetary gear motor offers high torque output and quiet operation. Integration with your lock’s electronics is easier when you use a compact gearbox. You save space, reduce weight, and get precise control. This also helps you minimize power use and extend battery life.
Gear Ratio and Output Speed
The gear ratio affects how fast and strong your planetary gear motors operate. Ratios between 4:1 and 8:1 work best for smart locks. These ratios give you the right balance of speed and torque multiplication. Multi-stage planetary gearboxes can provide even higher torque multiplication and lower noise.
Specification | Description |
|---|---|
4:1 to 8:1 for best performance and energy efficiency | |
Output Speed | 40rpm – 6420rpm (INEED 6mm planetary gear motor range) |
Application | Opening/closing, precise position control, and smooth operation |
A well-chosen gear ratio ensures your smart lock opens quickly and quietly. It also improves user experience and security by allowing fast, reliable access. Planetary gear motors with the right gearbox and torque multiplication features support advanced smart lock functions, such as fingerprint or remote unlocking.
Note: Always match the gearbox specs to your smart lock’s needs for the best results.
Sourcing Custom Planetary Gearheads from INEED
Preparing Technical Documents
You should start by gathering all technical documents before you contact INEED. These documents help you explain your needs for a custom planetary gearbox. You will need:
Detailed specifications for your smart lock application
Motor characteristic curves to show expected performance
3D drawings of your gearbox design
You can also include your design files and any special requirements for the gearbox. This information helps INEED’s engineers understand your project and suggest the best custom engineered solutions. When you provide clear documents, you speed up the process and reduce mistakes.
Evaluating Manufacturer Quality
You want to make sure your gearbox comes from a reliable source. You should check several factors when you evaluate a manufacturer like INEED:
Review performance metrics such as torque and speed for the gearbox
Look at the quality of materials used in the gearbox for better power transmission
Read user feedback to learn about real-world reliability
INEED uses strict quality control methods to ensure every gearbox meets high standards. Here is how they check quality:
Inspection Method | Description |
|---|---|
Visual Inspection | Finds visible defects in the gearbox structure |
Dimensional Inspection | Checks if gearbox dimensions match your drawings |
Surface Finish Assessment | Makes sure the gearbox surface is smooth for proper operation |
Material Testing | Confirms the gearbox uses the right materials |
Non-Destructive Testing | Looks for hidden flaws without damaging the gearbox |
Load Testing | Tests the gearbox under real working conditions |
You can trust INEED to deliver gearboxes that last and perform well in your smart lock.
Requesting Samples and Support
You can request samples from INEED to test the gearbox in your smart lock. The process is simple:
Step | Description |
|---|---|
1 | Contact INEED Motors through their website |
2 | Upload your 2D/3D CAD design files |
3 | Receive a quote from the sales engineering team within 8 hours |
4 | Share your design concept and basic parameter requirements |
5 | Sign a confidentiality agreement if needed before sample production |
INEED offers strong technical support during every step. Their engineering team has over ten years of experience. You get help with customization, technical documents, and choosing the right gearbox for your power transmission needs. INEED stands out by offering high flexibility, fast delivery, and a focus on your project’s success.
Tip: Always ask for a sample before full production. This lets you test the gearbox and make changes if needed.
You can rely on INEED for custom engineered solutions that fit your smart lock and meet your quality standards.
You can secure the best results for your smart lock by following a clear process. Start by defining your needs, use design tools, and share detailed specs with INEED. The table below shows the key features you should consider for your home smart lock:
Feature | Description |
|---|---|
Motor Size | 6mm diameter |
Rated Voltage | 3V DC |
Max Torque | 120 g.cm |
Weight | 1.8g |
Gear Ratio | 1:136.02 |
No-load Speed | 200 rpm |
Preparing detailed requirements early helps you avoid wasted effort and ensures your home smart lock meets your needs.
You gain enhanced security, convenience, and future-proofing when you choose quality, customization, and support. Reach out to INEED to explore planetary gear motor solutions for your next project.
FAQ
What is a planetary gear head?
You use a planetary gear head to increase torque and reduce speed in compact devices. It uses multiple gears that rotate around a central gear. This design gives you high efficiency and smooth operation in smart locks.
Why choose a custom planetary gear head for smart locks?
You choose a custom planetary gear head to fit your smart lock’s unique size and torque needs. Customization lets you achieve high power density and reliable performance in small spaces.
How does a planetary gear motor help with precision positioning?
You get precise control over movement with a planetary gear motor. The gear arrangement reduces backlash and improves accuracy. This makes precision positioning possible in your smart lock.
Can I request samples before full production?
You can request samples from INEED. Testing samples helps you check fit, function, and performance before you start large-scale production.
What support does INEED provide during customization?
You receive technical support from INEED’s engineering team. They help you with design, material selection, and testing. This support ensures your gear head meets your smart lock’s requirements.
